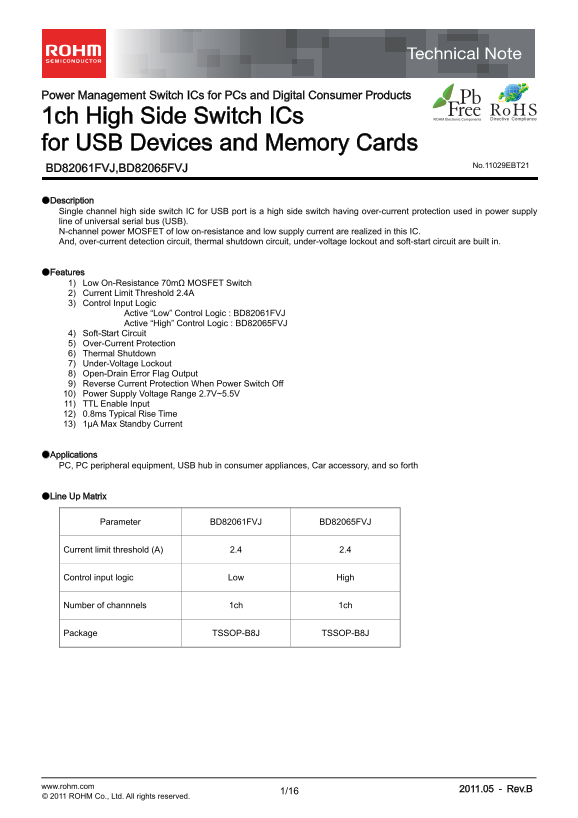

Power Management Switch ICs for PCs and Digital Consumer Products
1ch High Side Switch ICs for USB Devices and Memory Cards
No.11029EBT21
BD82061FVJ,BD82065FVJ
●Description Single channel high side switch IC for USB port is a high side switch having over-current protection used in power supply line of universal serial bus (USB). N-channel power MOSFET of low on-resistance and low supply current are realized in this IC. And, over-current detection circuit, thermal shutdown circuit, under-voltage lockout and soft-start circuit are built in.
●Features 1) Low On-Resistance 70mΩ MOSFET Switch 2) Current Limit Threshold 2.4A 3) Control Input Logic Active “Low” Control Logic : BD82061FVJ Active “High” Control Logic : BD82065FVJ 4) Soft-Start Circuit 5) Over-Current Protection 6) Thermal Shutdown 7) Under-Voltage Lockout 8) Open-Drain Error Flag Output 9) Reverse Current Protection When Power Switch Off 10) Power Supply Voltage Range 2.7V~5.5V 11) TTL Enable Input 12) 0.8ms Typical Rise Time 13) 1μA Max Standby Current
●Applications PC, PC peripheral equipment, USB hub in consumer appliances, Car accessory, and so forth
●Line Up Matrix
Parameter BD82061FVJ BD82065FVJ
Current limit threshold (A) 2.4 2.4
Control input logic Low High
Number of channnels 1ch 1ch
Package TSSOP-B8J TSSOP-B8J
