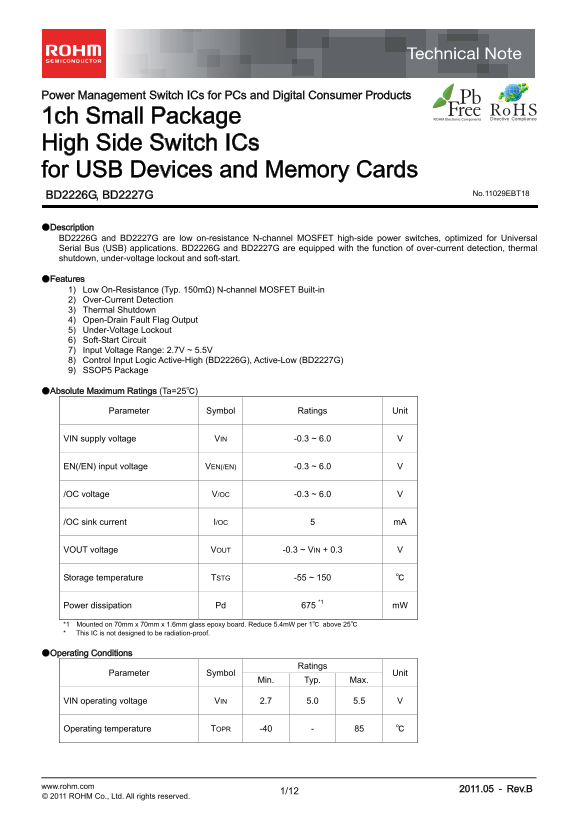

Page 1 Text Content
Power Management Switch ICs for PCs and Digital Consumer Products
1ch Small Package High Side Switch ICs for USB Devices and Memory Cards
BD2226G, BD2227G No.11029EBT18
●Description BD2226G and BD2227G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2226G and BD2227G are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start.
●Features 1) Low On-Resistance (Typ. 150mΩ) N-channel MOSFET Built-in 2) Over-Current Detection 3) Thermal Shutdown 4) Open-Drain Fault Flag Output 5) Under-Voltage Lockout 6) Soft-Start Circuit 7) Input Voltage Range: 2.7V ~ 5.5V 8) Control Input Logic Active-High (BD2226G), Active-Low (BD2227G) 9) SSOP5 Package
●Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Ratings Unit
VIN supply voltage VIN -0.3 ~ 6.0 V
EN(/EN) input voltage VEN(/EN) -0.3 ~ 6.0 V
/OC voltage V/OC -0.3 ~ 6.0 V
/OC sink current I/OC 5 m A
VOUT voltage VOUT -0.3 ~ VIN + 0.3 V
Storage temperature TSTG -55 ~ 150 ℃
Power dissipation Pd 675 *1 m W
*1 Mounted on 70mm x 70mm x 1.6mm glass epoxy board. Reduce 5.4m W per 1℃ above 25℃ * This IC is not designed to be radiation-proof.
●Operating Conditions
Ratings
Parameter Symbol Unit
Min. Typ. Max.
VIN operating voltage VIN 2.7 5.0 5.5 V
Operating temperature TOPR -40 - 85 ℃
www.rohm.com 2011.05 - Rev.B
© 2011 ROHM Co., Ltd. All rights reserved.
