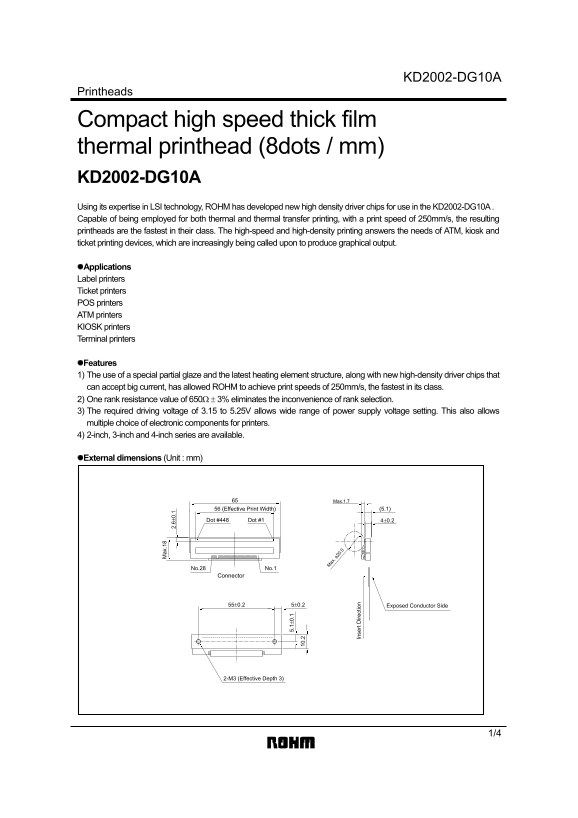

KD2002-DG10A
Printheads
Compact high speed thick film thermal printhead (8dots / mm)
ax .1
KD2002-DG10A Using its expertise in LSI technology, ROHM has developed new high density driver chips for use in the KD2002-DG10A . Capable of being employed for both thermal and thermal transfer printing, with a print speed of 250mm/s, the resulting printheads are the fastest in their class. The high-speed and high-density printing answers the needs of ATM, kiosk and ticket printing devices, which are increasingly being called upon to produce graphical output.
Applications Label printers
Ticket printers 5. 1± 0. POS printers .2
ATM printers KIOSK printers ax
. φ Terminal printers .0
In se rt ire ct io
Features 1) The use of a special partial glaze and the latest heating element structure, along with new high-density driver chips that can accept big current, has allowed ROHM to achieve print speeds of 250mm/s, the fastest in its class. 2) One rank resistance value of 650Ω ± 3% eliminates the inconvenience of rank selection. 3) The required driving voltage of 3.15 to 5.25V allows wide range of power supply voltage setting. This also allows multiple choice of electronic components for printers. 4) 2-inch, 3-inch and 4-inch series are available.
External dimensions (Unit : mm)
Max.1.7
56 (Effective Print Width) (5.1)
Dot #448 Dot #1 4±0.2
No.28 No.1
Connector
55±0.2 5±0.2 Exposed Conductor Side
2-M3 (Effective Depth 3)
