ROHM KD2002-CF10A User Guide
Summary
This printhead module is engineered for high-quality, reliable printing across diverse applications, including POS systems, ATMs, label printers, and general compact receipt devices. The comprehensive manual provides engineers with deep technical documentation, detailing electrical specifications, pin assignments, timing diagrams (CLK/LAT/STB), and performance curves to ensure seamless integration into any custom printing solution. Ideal for technicians and system integrators requiring accurate print output and optimal energy efficiency.

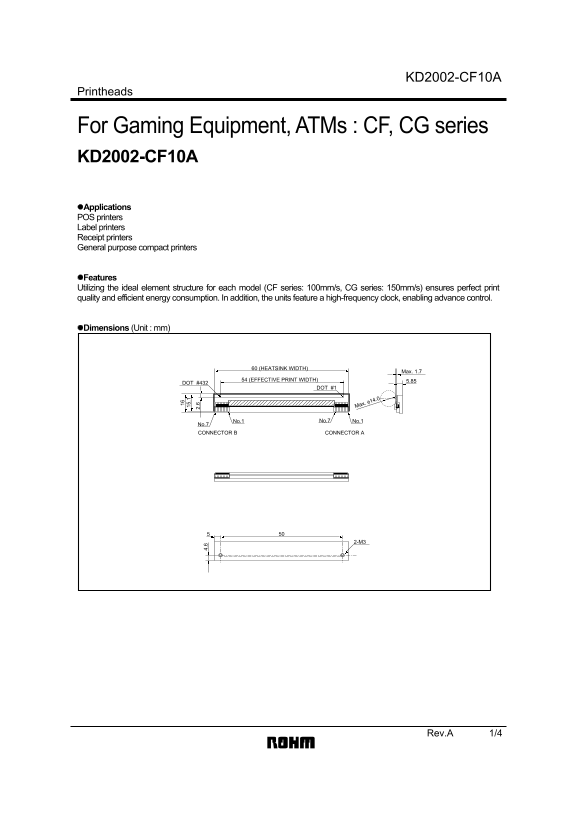

Page 1 Text Content
KD2002-CF10A
Printheads
For Gaming Equipment, ATMs : CF, CG series KD2002-CF10A
Applications POS printers Label printers Receipt printers General purpose compact printers
Features Utilizing the ideal element structure for each model (CF series: 100mm/s, CG series: 150mm/s) ensures perfect print quality and efficient energy consumption. In addition, the units feature a high-frequency clock, enabling advance control.
Dimensions (Unit : mm)
60 (HEATSINK WIDTH)
Max. 1.7
54 (EFFECTIVE PRINT WIDTH) 5.85
DOT #432
DOT #1
Max. φ14.0
No.1 No.7 No.1
No.7 CONNECTOR B CONNECTOR A
Rev.A 1/4
Page Summary Contents For ROHM KD2002-CF10A User Guide
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 5 |
| File Size | 151.09 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of printers are these printheads designed to fit?
They are suitable for applications like POS, Label, and Receipt printers.
What is the maximum effective printing width of the KD2002-CF10A?
The effective print width is 54 mm.
Are there safety precautions required when designing a circuit using this head?
Users must consider derating characteristics and incorporate sufficient safety measures, such as anti-flammability and fail-safe designs.
What is the specified running life for the printhead?
The operating lifespan is rated at 50/5 × 10 km/pulses.
