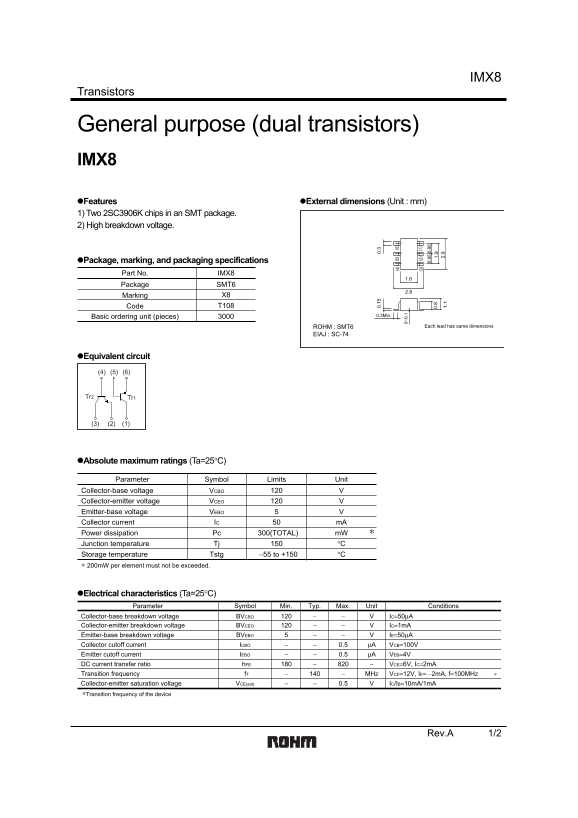

Transistors
General purpose (dual transistors) IMX8
Features External dimensions (Unit : mm) 1) Two 2SC3906K chips in an SMT package. 2) High breakdown voltage.
Package, marking, and packaging specifications
Part No. IMX8
Package SMT6
Marking X8 Code T108
Basic ordering unit (pieces) 0.3Min.
ROHM : SMT6 Each lead has same dimensions
EIAJ : SC-74
Equivalent circuit (4) (5) (6)
Tr2 Tr1
Absolute maximum ratings (Ta=25°C)
Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO
Collector current IC m A Power dissipation Pc 300(TOTAL) m W
Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C ∗ 200m W per element must not be exceeded.
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=50µA
Collector-emitter breakdown voltage BVCEO IC=1m A Emitter-base breakdown voltage BVEBO IE=50µA
Collector cutoff current ICBO 0.5 µA VCB=100V Emitter cutoff current IEBO 0.5 µA VEB=4V
DC current transfer ratio h FE VCE=6V, IC=2m A Transition frequency f T MHz VCE=12V, IE= −2m A, f=100MHz Collector-emitter saturation voltage VCE(sat) 0.5 IC/IB=10m A/1m A ∗Transition frequency of the device
Rev.A 1/2
