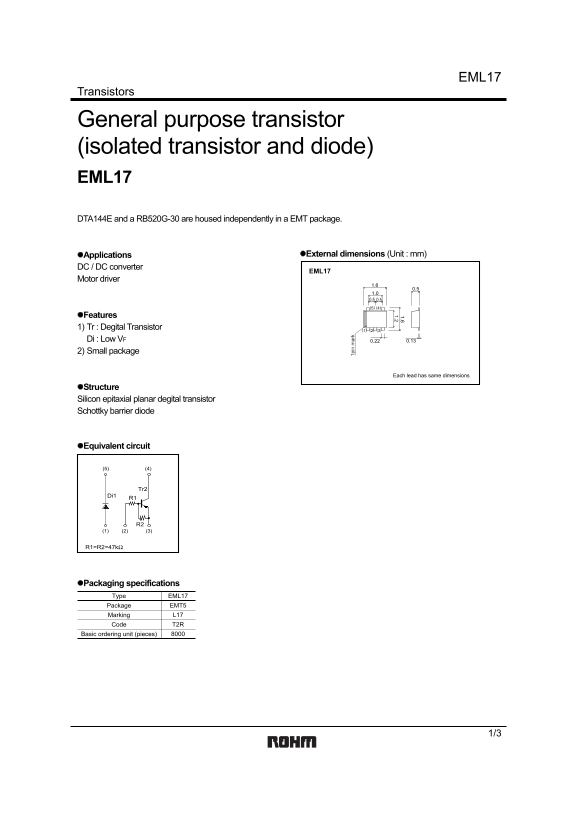

Page 1 Text Content

EML17

Transistors

General purpose transistor (isolated transistor and diode)

EML17 1.2

DTA144E and a RB520G-30 are housed independently in a EMT package.

Applications External dimensions (Unit : mm)

DC / DC converter

EML17

Motor driver

Features 1) Tr : Degital Transistor (1) (2) (3)

Di : Low VF 0.22 0.13 2) Small package 1p in ar

Each lead has same dimensions

Structure Silicon epitaxial planar degital transistor Schottky barrier diode

Equivalent circuit

Di1 R1

Packaging specifications Type EML17

Package EMT5 Marking L17 Code T2R

Basic ordering unit (pieces)

Page Summary Contents For ROHM EML17 Transistors Data Sheet - Manuals

Page 1 EML17 Transistors General purpose transistor (isolated transistor and diode) EML17 1.2 DTA144E and a RB520G-30 are housed independently in a EMT package. Applications External dimensions (Unit : mm) D...
Page 2 EML17 Transistors Absolute maximum ratings (Ta=25°C) Di1 Parameter Symbol Limits Unit DC current voltage VR Mean rectifying current IO m A Forward peak surge current (60HZ 1cyc.) IFSM m A Junction tem...
Page 3 LT (o n) IN LT EML17 I( on ) ( IF Transistors Electrical characteristic curves Di1 −25 C Io IR n A REVERSE VOLTAGE : VR (V) FORWARD VOLTAGE : VF (m V) REVERSE VOLTAGE : VR (V) Fig. 3 Capacitance betwe...
Page 4 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject...
