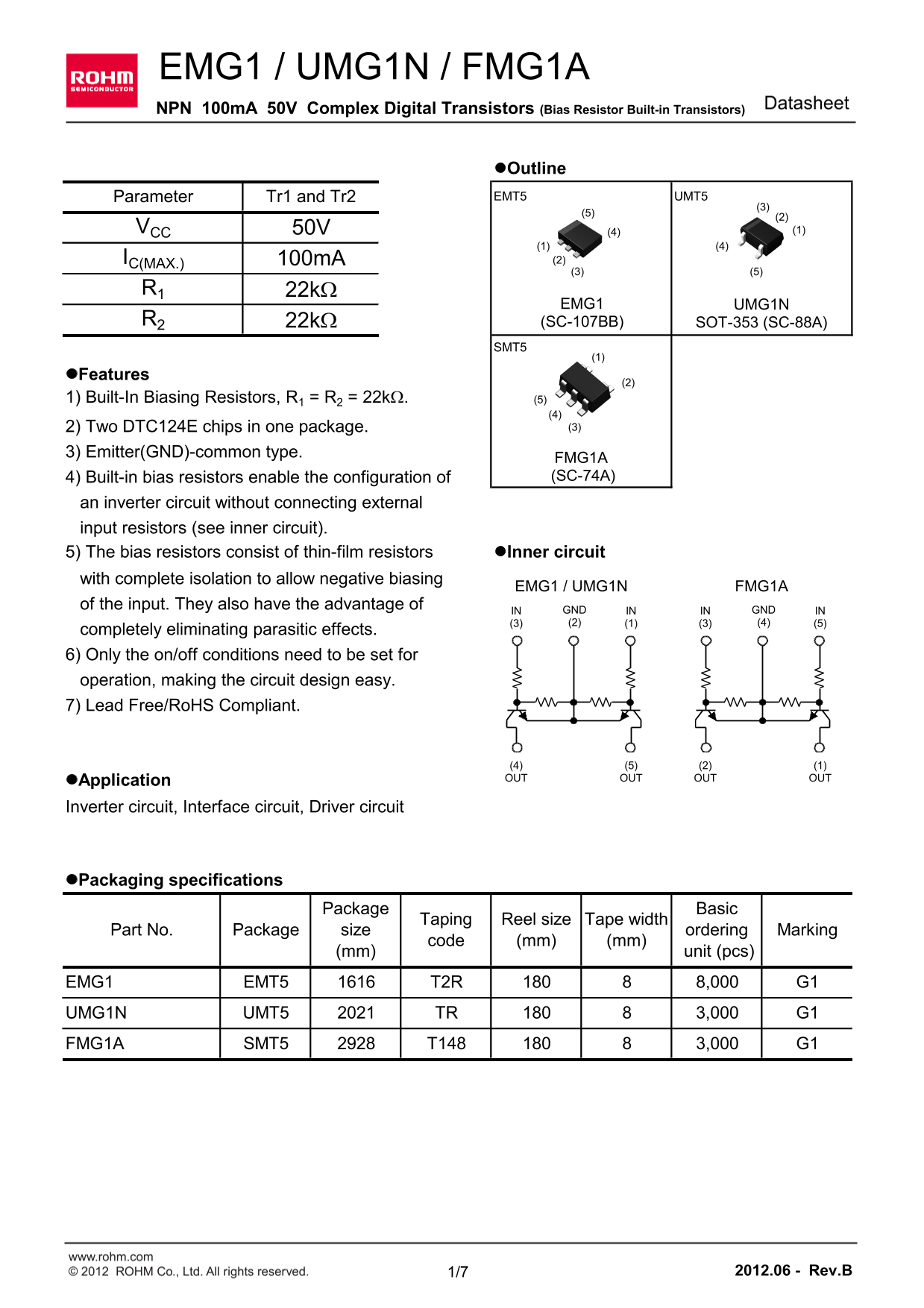

ROHM EMG1 UMG1N FMG1A Data Sheet

EMG1 / UMG1N / FMG1A

Datasheet

NPN 100m A 50V Complex Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Tr1 and Tr2 EMT5 UMT5

VCC 50V (4) (1)

(1) (4) IC(MAX.) 100m A (2) (3) (5)

EMG1 UMG1N

R2 22k W (SC-107BB) SOT-353 (SC-88A)

l Features

1) Built-In Biasing Resistors, R1 = R2 = 22k W. (5)

(4) 2) Two DTC124E chips in one package. (3)

3) Emitter(GND)-common type.

FMG1A 4) Built-in bias resistors enable the configuration of (SC-74A)

an inverter circuit without connecting external input resistors (see inner circuit).

5) The bias resistors consist of thin-film resistors l Inner circuit

with complete isolation to allow negative biasing

EMG1 / UMG1N FMG1A

of the input. They also have the advantage of

IN GND IN IN GND IN (3) (2) (1) (3) (4) (5)

completely eliminating parasitic effects. 6) Only the on/off conditions need to be set for operation, making the circuit design easy. 7) Lead Free/Ro HS Compliant.

(4) (5) (2) (1) l Application OUT OUT OUT OUT

Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

EMG1 EMT5 T2R 8,000 G18 UMG1N UMT5 TR 3,000 G1 FMG1A SMT5 T148 3,000 G1

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.06 - Rev.B
