ROHM EMF6 DATA SHEET
Summary
Rohm EMF6 dual transistor datasheet containing 2SA2018 PNP bipolar transistor and 2SK3019 N-channel MOSFET housed independently in a single EMT6 surface-mount package. Provides absolute maximum ratings, electrical characteristics, and equivalent circuit diagrams for power management and switching applications. Intended for electronics engineers designing compact power management circuits where reduced mounting cost and board space are priorities.
Page 1 Text Content
查询EMF6供应商
Transistors

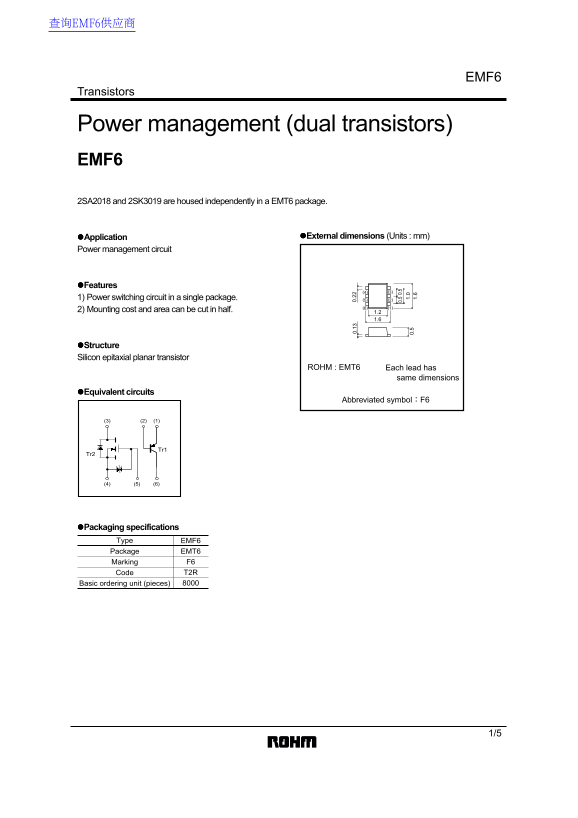

Power management (dual transistors) EMF6 2SA2018 and 2SK3019 are housed independently in a EMT6 package.
!Application !External dimensions (Units : mm)
Power management circuit
!Features
1) Power switching circuit in a single package. (2)(5)
2) Mounting cost and area can be cut in half. 1.2
!Structure
Silicon epitaxial planar transistor
ROHM : EMT6 Each lead has
same dimensions
!Equivalent circuits
Abbreviated symbol：F6 0. 0. 1.
!Packaging specifications
Type EMF6 Package EMT6
Marking F6 Code T2R
Basic ordering unit (pieces)
