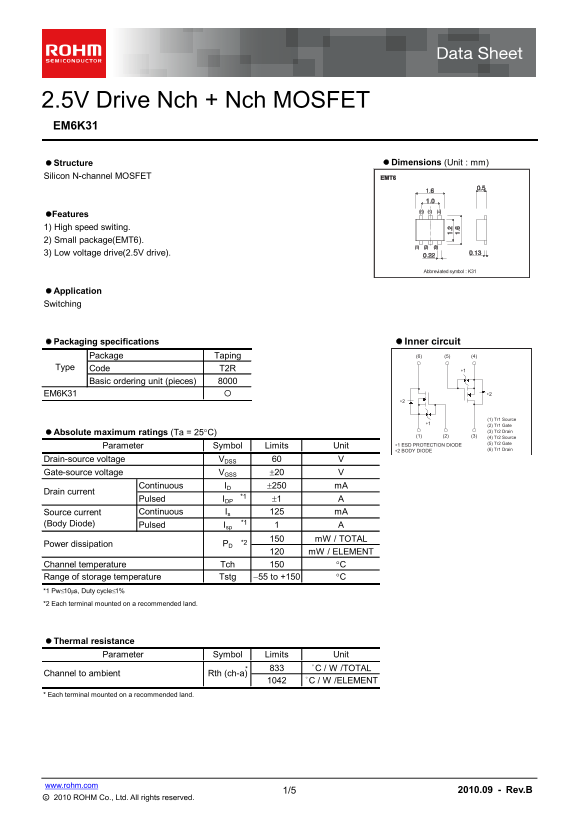

2.5V Drive Nch + Nch MOSFET EM6K31

Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET

Features 1) High speed switing. 2) Small package(EMT6). 3) Low voltage drive(2.5V drive).

Abbreviated symbol : K31

Application Switching

Packaging specifications Inner circuit Package Taping (6) (5) (4)

Type Code T2R

Basic ordering unit (pieces)

EM6K31 ∗2

(1) Tr1 Source

∗1 (2) Tr1 Gate

(3) Tr2 Drain

Absolute maximum ratings (Ta = 25C)

(1) (2) (3) (4) Tr2 Source

∗1 ESD PROTECTION DIODE (5) Tr2 Gate

Parameter Symbol Limits Unit

∗2 BODY DIODE (6) Tr1 Drain

Drain-source voltage VDSS Gate-source voltage VGSS 20

Continuous ID 250 m A

Drain current

Pulsed IDP 1

Source current Continuous Is m A

(Body Diode) *1

Pulsed Isp

m W / TOTAL

PDPower dissipation *2

m W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to +150 C *1 Pw10s, Duty cycle1% *2 Each terminal mounted on a recommended land.

Thermal resistance

Parameter Symbol Limits Unit

°C / W /TOTAL

Channel to ambient Rth (ch-a)

°C / W /ELEMENT

* Each terminal mounted on a recommended land.
