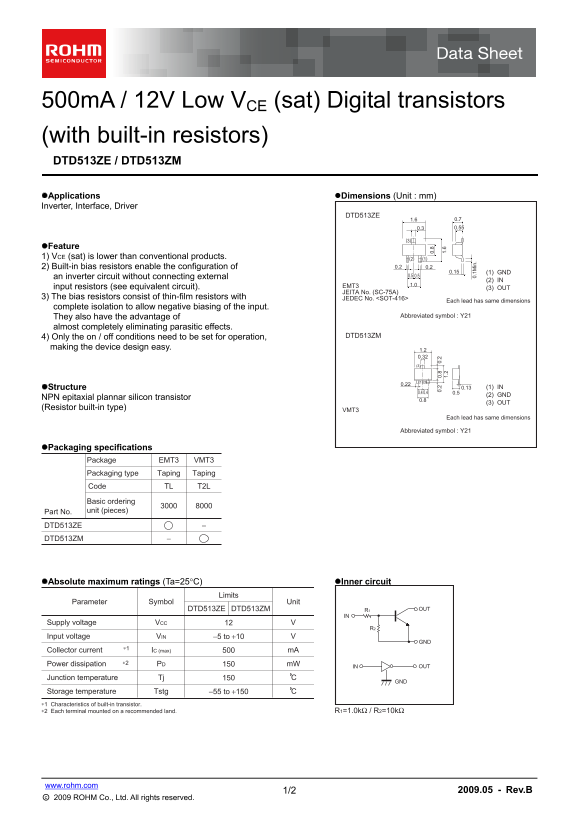

500m A / 12V Low VCE (sat) Digital transistors (with built-in resistors) DTD513ZE / DTD513ZM Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTD513ZE
Feature 1) VCE (sat) is lower than conventional products. (2) (1)
2) Built-in bias resistors enable the configuration of 0.2 0.2
0.15 (1) GND
an inverter circuit without connecting external 0.50.5
(2) IN
EMT3 1.0
input resistors (see equivalent circuit). (3) OUT
JEITA No. (SC-75A)
3) The bias resistors consist of thin-film resistors with JEDEC No. <SOT-416>
Each lead has same dimensions
complete isolation to allow negative biasing of the input.
They also have the advantage of Abbreviated symbol : Y21
almost completely eliminating parasitic effects.
4) Only the on / off conditions need to be set for operation, DTD513ZM
making the device design easy.
Structure 0.13 (1) IN
(2) GND
NPN epitaxial plannar silicon transistor
(3) OUT
(Resistor built-in type)
Each lead has same dimensions
Abbreviated symbol : Y21 0.
Packaging specifications
Package EMT3 VMT3 Packaging type Taping Taping 0. 1M in
Code TL T2L
Basic ordering Part No. unit (pieces)
DTD513ZE DTD513ZM
Absolute maximum ratings (Ta=25°C) Inner circuit
Limits
Parameter Symbol Unit
DTD513ZE DTD513ZM R1 OUT
Supply voltage VCC
Input voltage VIN −5 to +10
Collector current IC (max) m A
Power dissipation ∗2 PD m W
IN OUT
Junction temperature Tj
Storage temperature Tstg −55 to +150
∗1 Characteristics of built-in transistor. ∗2 Each terminal mounted on a recommended land. R1=1.0kΩ / R2=10kΩ
