ROHM DTD143EK Data Sheet
Summary
The DTD143EK is a high-performance digital NPN transistor featuring integrated bias resistors, making it an ideal component for designing simple inverter and interface circuits. This manual provides engineers with complete electrical specifications, detailed operating characteristics (ON/OFF), and absolute maximum ratings. It serves professionals developing general electronic equipment, such as communication or audio systems, who require a reliable and simplified driver solution.
Page 1 Text Content

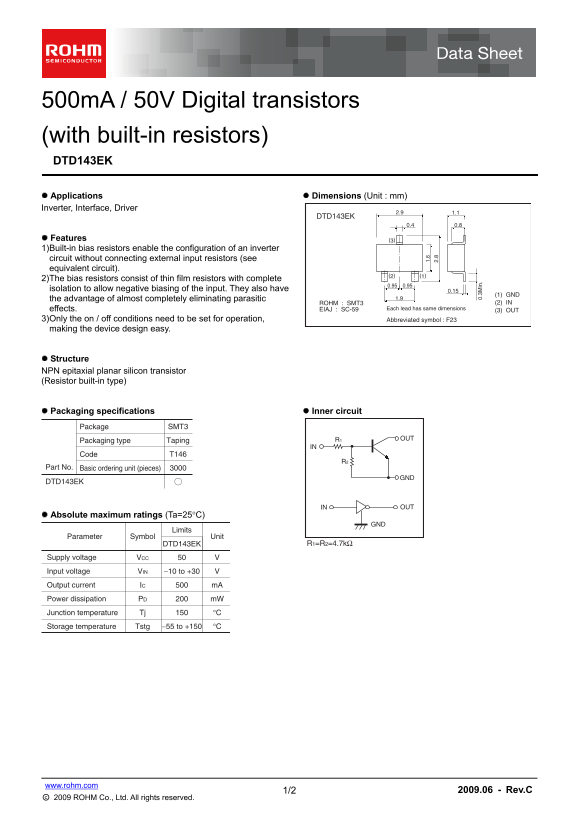

500m A / 50V Digital transistors (with built-in resistors) DTD143EK Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTD143EK
Features (3) 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin film resistors with complete
isolation to allow negative biasing of the input. They also have 0.15
(1) GND
the advantage of almost completely eliminating parasitic 1.9
ROHM : SMT3 (2) IN
effects. EIAJ : SC-59 Each lead has same dimensions
(3) OUT
3) Only the on / off conditions need to be set for operation, Abbreviated symbol : F23 making the device design easy.
Structure NPN epitaxial planar silicon transistor (Resistor built-in type)
Packaging specifications Inner circuit
Package SMT3 1.
R1 OUT
Packaging type Taping
Code T146
Part No. Basic ordering unit (pieces)
0. 3M in
DTD143EK
IN OUT
Absolute maximum ratings (Ta=25C)
Limits
Parameter Symbol Unit
DTD143EK R1=R2=4.7kΩ
Supply voltage VCC
Input voltage VIN −10 to +30
Output current IC m A
Power dissipation PD m W
Junction temperature Tj °C
Storage temperature Tstg −55 to +150 °C
www.rohm.com
1/2 2009.06 - Rev.C
○c 2009 ROHM Co., Ltd. All rights reserved.
