ROHM DTC124TUA Data Sheet
Summary
These integrated digital transistors are designed for demanding applications such as inverters, interfaces, and drivers. Featuring built-in bias resistors, these components simplify circuit design by eliminating the need for external biasing resistors, allowing easy setup for basic on/off control circuits. Ideal for engineers requiring a compact, high-performance NPN planar silicon solution rated up to 100mA / 50V.

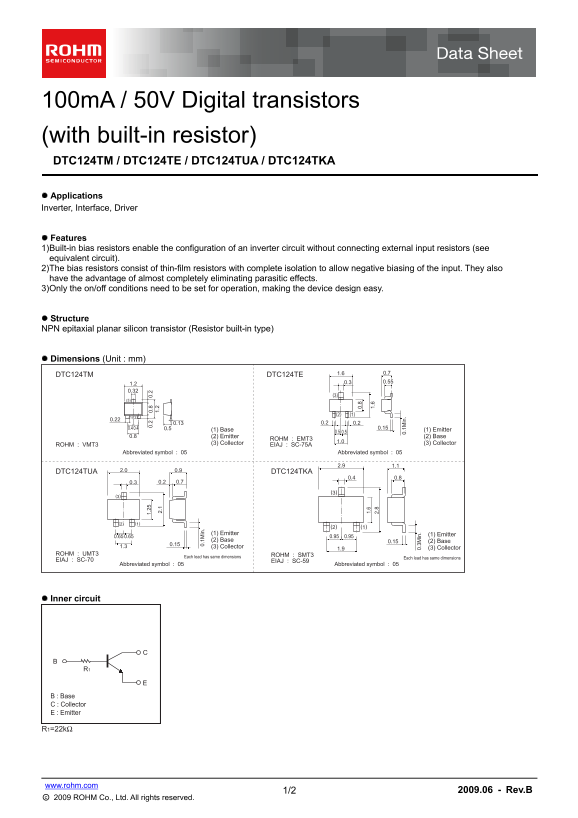

Page 1 Text Content
100m A / 50V Digital transistors (with built-in resistor)
DTC124TM / DTC124TE / DTC124TUA / DTC124TKA 2.
Applications
0. 1M in
Inverter, Interface, Driver
Features 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy.
Structure NPN epitaxial planar silicon transistor (Resistor built-in type)
Dimensions (Unit : mm) 0.
DTC124TM DTC124TE 2.
0. 1M in
0.22 0. 3M in
0.4 0.4 0.5 (1) Base 0.15 (1) Emitter
0.8 (2) Emitter (2) Base
ROHM : EMT3
(3) Collector 1.0 (3) Collector
ROHM : VMT3 EIAJ : SC-75A
Abbreviated symbol : 05Abbreviated symbol : 05
DTC124TUA 2.0 0.9 DTC124TKA
(1) Emitter (1) Emitter
(2) Base 0.15 (2) Base
1.3 (3) Collector (3) Collector
ROHM : UMT3 ROHM : SMT3
Each lead has same dimensions Each lead has same dimensions
EIAJ : SC-70 EIAJ : SC-59
Abbreviated symbol : 05 Abbreviated symbol : 05
Inner circuit
B : Base C : Collector E : Emitter
www.rohm.com
1/2 2009.06 - Rev.B
○c 2009 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM DTC124TUA Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 91.60 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How does the built-in resistor assist in circuit design?
The built-in bias resistors allow for inverter circuit configuration without connecting external input resistors.
What is the maximum absolute collector current ($I_C$)?
The absolute maximum value specified for the collector current ($I_C$) is 100 mA.
Can this transistor be used in life-critical equipment?
No, it should not be used in devices where failure may directly threaten human life or create a risk of injury (e.g., medical instruments).
What components are covered by the absolute maximum ratings?
The limits include Collector-base voltage ($V_{CBO}$), Collector-emitter voltage ($V_{CEO}$), and Emitter-base voltage ($V_{EBO}).
