ROHM DTC115EUA User Guide and Manual

Summary

ROHM DTC115E series are NPN digital transistors with built-in bias resistors rated for 50V and 100mA, featuring R1=R2=100k ohm thin-film resistors. The integrated bias resistors enable inverter circuit configuration without external input resistors, with complete isolation allowing negative input biasing and elimination of parasitic effects. Available in five surface mount packages including VMT3, EMT3F, EMT3, UMT3, and SMT3, the transistors are lead-free and RoHS compliant. Complementary PNP types are available in the DTA115E series. They target switching, inverter, interface, and driver circuits in consumer electronics and general-purpose digital applications.

📄 Preview PAGE OF 10

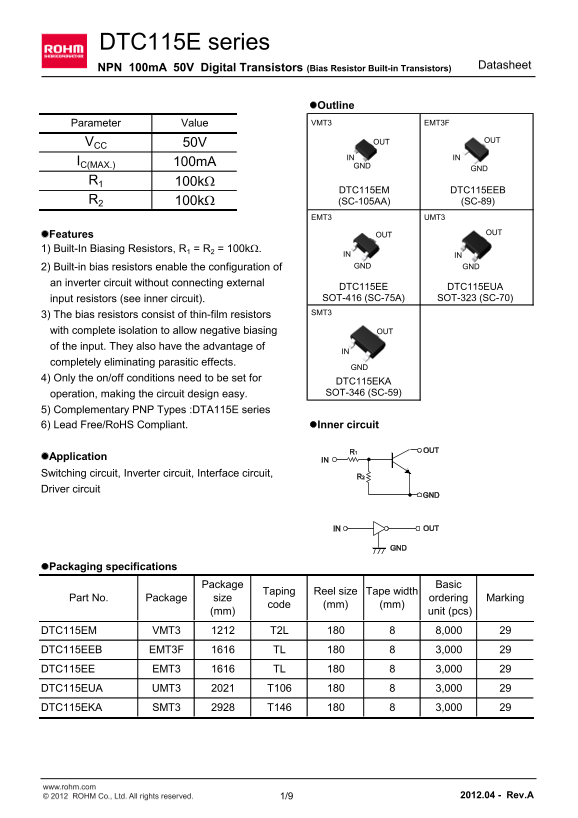

Page 1 Text Content

DTC115E series

Datasheet

NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

VCC OUT OUT

IN IN

IC(MAX.) 100m A

DTC115EM DTC115EEB

R2 100k W (SC-105AA) (SC-89)

EMT3 UMT3

l Features OUT

1) Built-In Biasing Resistors, R1 = R2 = 100k W.

IN IN 2) Built-in bias resistors enable the configuration of GND GND

an inverter circuit without connecting external

DTC115EE DTC115EUA input resistors (see inner circuit). SOT-416 (SC-75A) SOT-323 (SC-70) SMT3

3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing OUT of the input. They also have the advantage of

completely eliminating parasitic effects.

4) Only the on/off conditions need to be set for

DTC115EKA operation, making the circuit design easy. SOT-346 (SC-59)

5) Complementary PNP Types :DTA115E series 6) Lead Free/Ro HS Compliant. l Inner circuit

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTC115EM VMT3 T2L 8,000 DTC115EEB EMT3F TL 3,000 DTC115EE EMT3 TL 3,000 DTC115EUA UMT3 T106 3,000 DTC115EKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/9 2012.04 - Rev.A

Page Summary Contents For ROHM DTC115EUA User Guide and Manual

Page 1 DTC115E series Datasheet NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F VCC OUT OUT IN IN IC(MAX.) 100m A DTC115EM DTC115EEB R2 100k W (SC...
Page 2 Data Sheet DTC115E series l Absolute maximum ratings (Ta = 25°C) Parameter Symbol Values Unit Supply voltage VCC Input voltage VIN -10 to +40 Output current IO m A *1 Collector current IC(MAX.) m A DT...
Page 3 Data Sheet DTC115E series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) V...
Page 4 Data Sheet DTC115E series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current IO/II = 20 Ta=125ºC 85ºC 25ºC 0.1 -40ºC OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM...
Page 5 Data Sheet DTC115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 6 Data Sheet DTC115E series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 7 Data Sheet DTC115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 8 Data Sheet DTC115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 9 Data Sheet DTC115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 10 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 10
File Size 744.72 KB
Published June 17, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the max collector current of DTC115E?

The maximum collector current is 100mA at 25°C.

What are the built-in bias resistors?

Both R1 and R2 are 100kΩ thin-film resistors with complete isolation.

Is the DTC115E RoHS compliant?

Yes, it is Lead Free and RoHS Compliant.

What is the max supply voltage?

The maximum supply voltage VCC is 50V at 25°C.
