ROHM DTC015TUB Data Sheet
Summary
Discover the DTC015T series digital transistors, highly reliable NPN/complementary components designed for low-power switching, inverter, and interface circuits. Featuring built-in biasing resistors, these parts simplify circuit design by eliminating the need for external input resistors. This manual provides comprehensive specifications, electrical characteristics (like Vce(sat) and hFE), absolute maximum ratings, and package details necessary for engineers designing robust driver and control electronics.
Page 1 Text Content

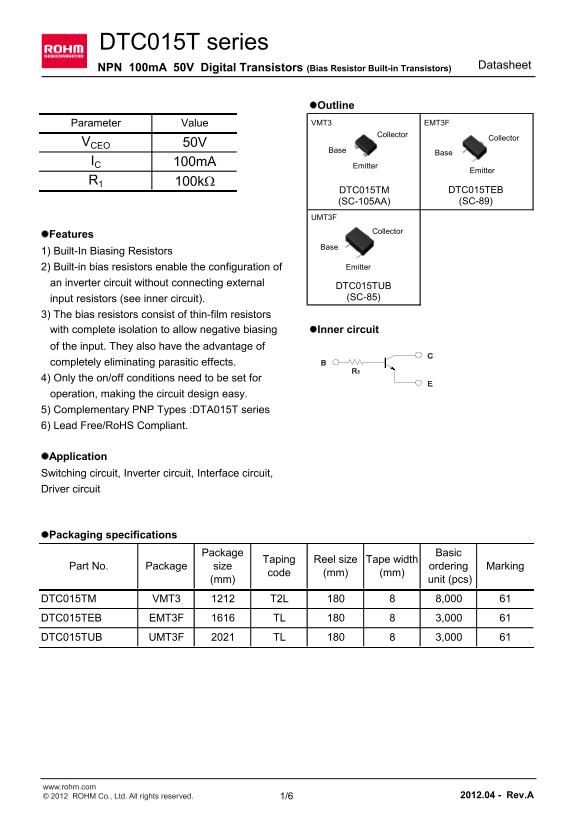

DTC015T series
Datasheet
NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value VMT3 EMT3F
Collector
Collector
VCEO 50V IC 100m A
Emitter
Emitter
DTC015TM DTC015TEB (SC-105AA) (SC-89)
UMT3F
Collector
l Features 1) Built-In Biasing Resistors
2) Built-in bias resistors enable the configuration of Emitter
an inverter circuit without connecting external
DTC015TUB input resistors (see inner circuit). (SC-85)
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing l Inner circuit of the input. They also have the advantage of completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary PNP Types :DTA015T series 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTC015TM VMT3 T2L 8,000 DTC015TEB EMT3F TL 3,000
UMT3F TL 3,000 61DTC015TUB
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/6 2012.04 - Rev.A
