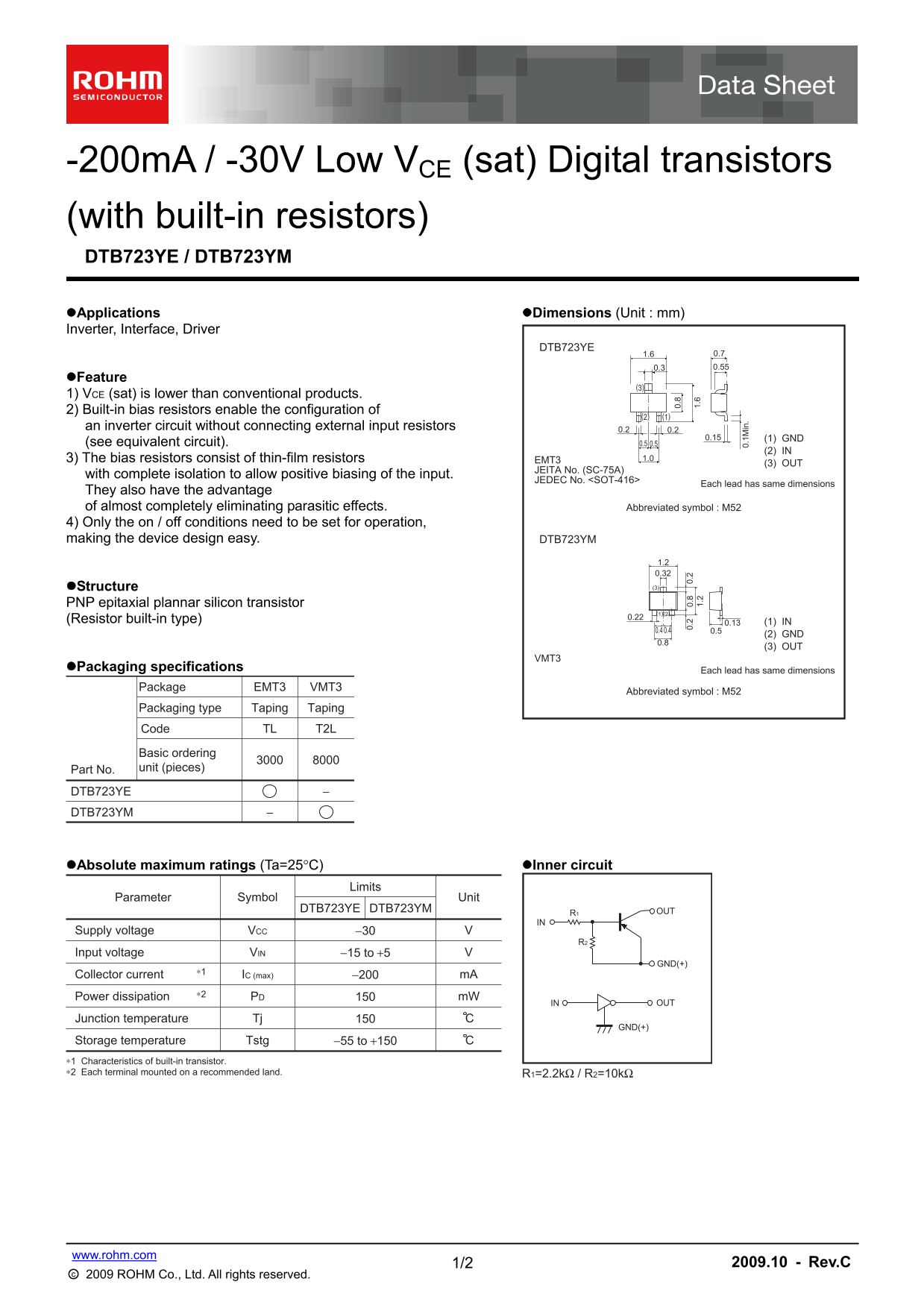

-200m A / -30V Low VCE (sat) Digital transistors (with built-in resistors) DTB723YE / DTB723YM Applications Dimensions (Unit : mm) Inverter, Interface, Driver

DTB723YE

Feature

1) VCE (sat) is lower than conventional products. 2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external input resistors 0.2 0.2

0.15 (1) GND

(see equivalent circuit). 0.50.5

(2) IN

3) The bias resistors consist of thin-film resistors EMT3 1.0

(3) OUT

JEITA No. (SC-75A)

with complete isolation to allow positive biasing of the input.

JEDEC No. <SOT-416>

Each lead has same dimensions

They also have the advantage of almost completely eliminating parasitic effects. Abbreviated symbol : M52 4) Only the on / off conditions need to be set for operation, making the device design easy. DTB723YM

1.2 0.32 Structure (3)

PNP epitaxial plannar silicon transistor

(Resistor built-in type) 0.22

0.13 (1) IN

(2) GND

(3) OUT

Packaging specifications Each lead has same dimensions

Package EMT3 VMT3 0. 0. 0.

Abbreviated symbol : M52

Packaging type Taping Taping Code TL T2L

0. 1M in

Basic ordering Part No. unit (pieces)

DTB723YE DTB723YM

Absolute maximum ratings (Ta=25°C) Inner circuit

Limits

Parameter Symbol Unit

DTB723YE DTB723YM OUT

Supply voltage VCC −30

Input voltage VIN −15 to +5

GND(+)

Collector current IC (max) −200 m A

Power dissipation ∗2 PD m W

IN OUT

Junction temperature Tj

GND(+)

Storage temperature Tstg −55 to +150

∗1 Characteristics of built-in transistor. ∗2 Each terminal mounted on a recommended land. R1=2.2kΩ / R2=10kΩ

1/2 www.rohm.com 2009.10 - Rev.C

○c 2009 ROHM Co., Ltd. All rights reserved.

Page Summary Contents For ROHM DTB723YE DTB723YM User Guide and Manual

Page 1 -200m A / -30V Low VCE (sat) Digital transistors (with built-in resistors) DTB723YE / DTB723YM Applications Dimensions (Unit : mm) Inverter, Interface, Driver DTB723YE Feature 1) VCE (sat) is lower th...
Page 2 Data Sheet DTB723YE / DTB723YM EN AI TP EN : I (m A) Electrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions VI(off) −0.3 VCC= −5V, IO= −100µA Input voltage VI(on) −2.5 VO...
Page 3 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
