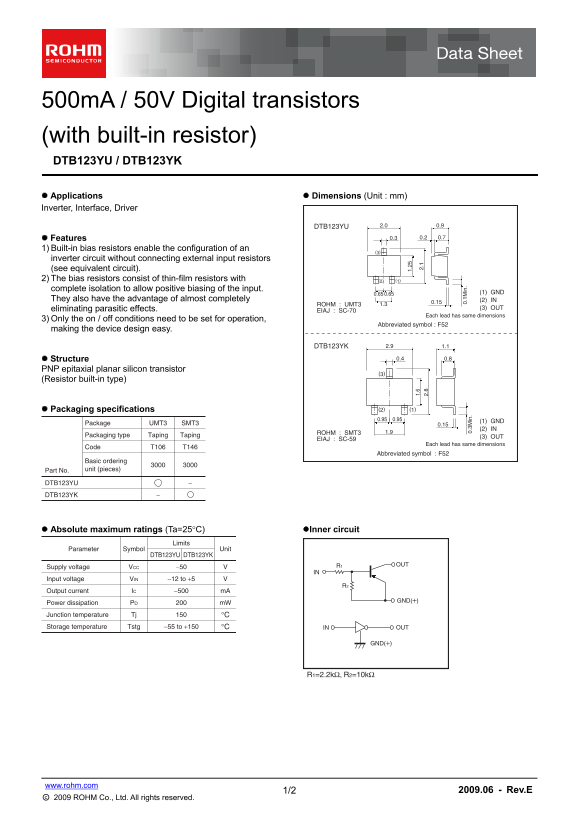

500m A / 50V Digital transistors (with built-in resistor) DTB123YU / DTB123YK Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTB123YU 2.0 0.9
Features 0.3 0.2 0.7
1) Built-in bias resistors enable the configuration of an
inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with (2) (1) complete isolation to allow positive biasing of the input.
0.65 0.65 (1) GND
They also have the advantage of almost completely (2) IN
ROHM : UMT3 1.3
eliminating parasitic effects. (3) OUT
EIAJ : SC-70
Each lead has same dimensions
3) Only the on / off conditions need to be set for operation,
Abbreviated symbol : F52
making the device design easy.
DTB123YK 2.9 1.1
Structure 0.4 0.8
PNP epitaxial planar silicon transistor
(Resistor built-in type)
Packaging specifications (2) (1) 1.
(1) GND 2.
Package UMT3 SMT3 0.15
(2) IN
ROHM : SMT3 1.9
Packaging type Taping Taping (3) OUT
EIAJ : SC-59
Each lead has same dimensions
Code T106 T146
Abbreviated symbol : F52
Basic ordering
0. 1M in
Part No. unit (pieces) 0. 3M in
DTB123YU
DTB123YK
Absolute maximum ratings (Ta=25C) Inner circuit
Limits
Parameter Symbol Unit
DTB123YU DTB123YK
R1 OUT
Supply voltage VCC −50
Input voltage VIN −12 to +5
Output current IC −500 m A
GND(+)
Power dissipation PD m W
Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C IN OUT
GND(+)
www.rohm.com
1/2 2009.06 - Rev.E
○c 2009 ROHM Co., Ltd. All rights reserved.
