The DTA124GKA is a high-density SMT digital transistor featuring built-in bias resistors for simple and reliable circuit design. Ideal for use in inverter, interface, and driver applications across general electronic equipment, such as audio, communication devices, and automation gear. This manual provides comprehensive technical details including absolute ratings, electrical characteristics, and application guides, ensuring engineers can efficiently integrate this robust component into their next PCB design.

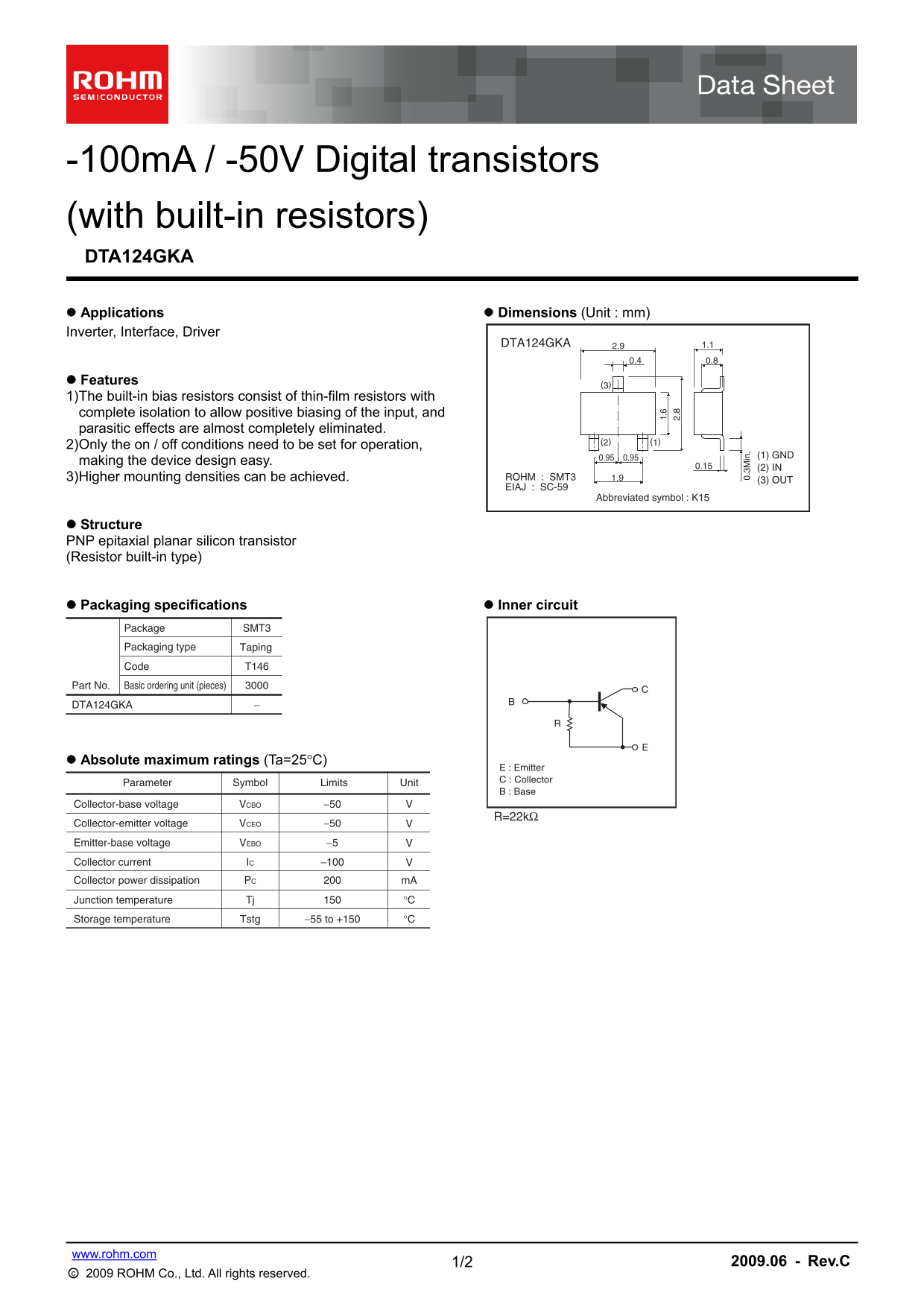

Page 1 Text Content
-100m A / -50V Digital transistors (with built-in resistors) DTA124GKA Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTA124GKA 2.9 1.1
Features (3) 1) The built-in bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input, and parasitic effects are almost completely eliminated.
2) Only the on / off conditions need to be set for operation,
0.95 0.95 (1) GND
making the device design easy.
0.15 (2) IN
3) Higher mounting densities can be achieved. 1.9 (3) OUTROHM : SMT3
EIAJ : SC-59
Abbreviated symbol : K15
Structure PNP epitaxial planar silicon transistor (Resistor built-in type)
Packaging specifications Inner circuit
Package SMT3
Packaging type Taping
Code T146
Part No. Basic ordering unit (pieces)
DTA124GKA
0. 3M in
Absolute maximum ratings (Ta=25C)
E : Emitter C : Collector
Symbol Limits Parameter Unit
B : Base
Collector-base voltage VCBO −50
Collector-emitter voltage VCEO −50
Emitter-base voltage −5 VVEBO
Collector current −100 VIC
Collector power dissipation PC m A
Junction temperature Tj °C
Storage temperature Tstg −55 to +150 °C
www.rohm.com
1/2 2009.06 - Rev.C
○c 2009 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM DTA124GKA User Guide and Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 133.81 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the required collector-base voltage (V_CBO) rating?
The absolute maximum rated limit for V_CBO is -50 V.
How easily can I incorporate this device into a design?
It is designed to be easy, requiring only setting the 'on' / 'off' condition (GND and IN).
What environmental conditions should I consider when designing circuits?
For mass production, peripheral conditions must be taken into account when designing circuits.
