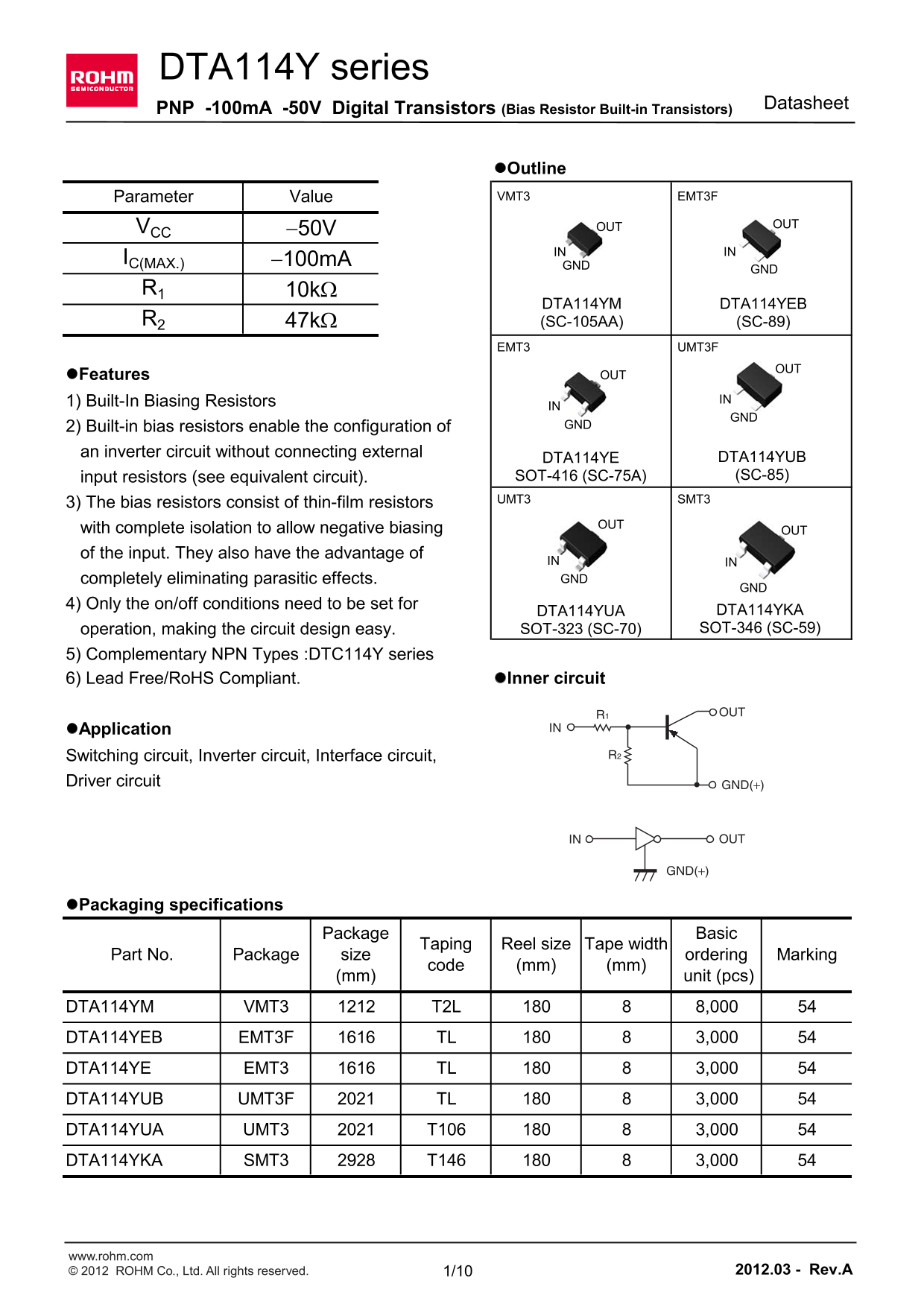

DTA114Y series

Datasheet

PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)

Outline Parameter Value VMT3 EMT3F

VCC OUT OUT

IN IN

IC(MAX.) 100m A

DTA114YM DTA114YEB

R2 47k (SC-105AA) (SC-89)

EMT3 UMT3F

Features OUT

1) Built-In Biasing Resistors IN

2) Built-in bias resistors enable the configuration of GND

an inverter circuit without connecting external

DTA114YE DTA114YUB input resistors (see equivalent circuit). SOT-416 (SC-75A) (SC-85)

UMT3 SMT3

3) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing OUT of the input. They also have the advantage of

IN IN completely eliminating parasitic effects. GND

4) Only the on/off conditions need to be set for

DTA114YUA DTA114YKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)

5) Complementary NPN Types :DTC114Y series 6) Lead Free/Ro HS Compliant. Inner circuit

R1 OUT

Application IN

Switching circuit, Inverter circuit, Interface circuit, R2

Driver circuit GND(+)

IN OUT

GND(+)

Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTA114YM VMT3 T2L 8,000

DTA114YEB EMT3F TL 3,000

DTA114YE EMT3 TL 3,000 DTA114YUB UMT3F TL 3,000 DTA114YUA UMT3 T106 3,000 DTA114YKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/10 2012.03 - Rev.A

Page Summary Contents For ROHM DTA114YE User Guide and Manual

Page 1 DTA114Y series Datasheet PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors) Outline Parameter Value VMT3 EMT3F VCC OUT OUT IN IN IC(MAX.) 100m A DTA114YM DTA114YEB R2 47k (SC...
Page 2 Data Sheet DTA114Y series Absolute maximum ratings (Ta = 25C) Parameter Symbol Values Unit Supply voltage VCC 50 Input voltage VIN 40 to 6 Output current IO 70 m A *1 Collector current IC(MAX.) ...
Page 3 Data Sheet DTA114Y series [m IN LT [V I( on Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF charact...
Page 4 Data Sheet DTA114Y series LT [V Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current −1 Ta=100°C OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM Co., Ltd. All rights r...
Page 5 Data Sheet DTA114Y series Dimensions (Unit : mm) Patterm of terminal position areas  MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 0.08 0.18 0.003 0.007 1.10 1.30 0.043 0.051 0.70 0.90 0.02...
Page 6 Data Sheet DTA114Y series Dimensions (Unit : mm) EMT3F Patterm of terminal position areas  MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 0.21 0.36 0.008 0.014 0.08 0.18 0.003 0.007 1.50 1.70 0.059 0.06...
Page 7 Data Sheet DTA114Y series Dimensions (Unit : mm) Patterm of terminal position areas  MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 8 Data Sheet DTA114Y series Dimensions (Unit : mm) UMT3F Patterm of terminal position areas  MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 9 Data Sheet DTA114Y series Dimensions (Unit : mm) Patterm of terminal position areas  MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 10 Data Sheet DTA114Y series Dimensions (Unit : mm) Patterm of terminal position areas  MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 A3 0.25 0.01 0.35 0.50 0.014 0.02 0.09 0.25 0.004 0.01 2.80 3.00...
Page 11 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
