The DTA044E series provides specialized digital transistors built with integrated bias resistors for simplified circuit design. This manual offers comprehensive technical specifications, electrical performance curves, and dimensions required for proper implementation. It is essential reading for engineers developing switching circuits, inverters, interface units, or drivers in sophisticated electronic applications.

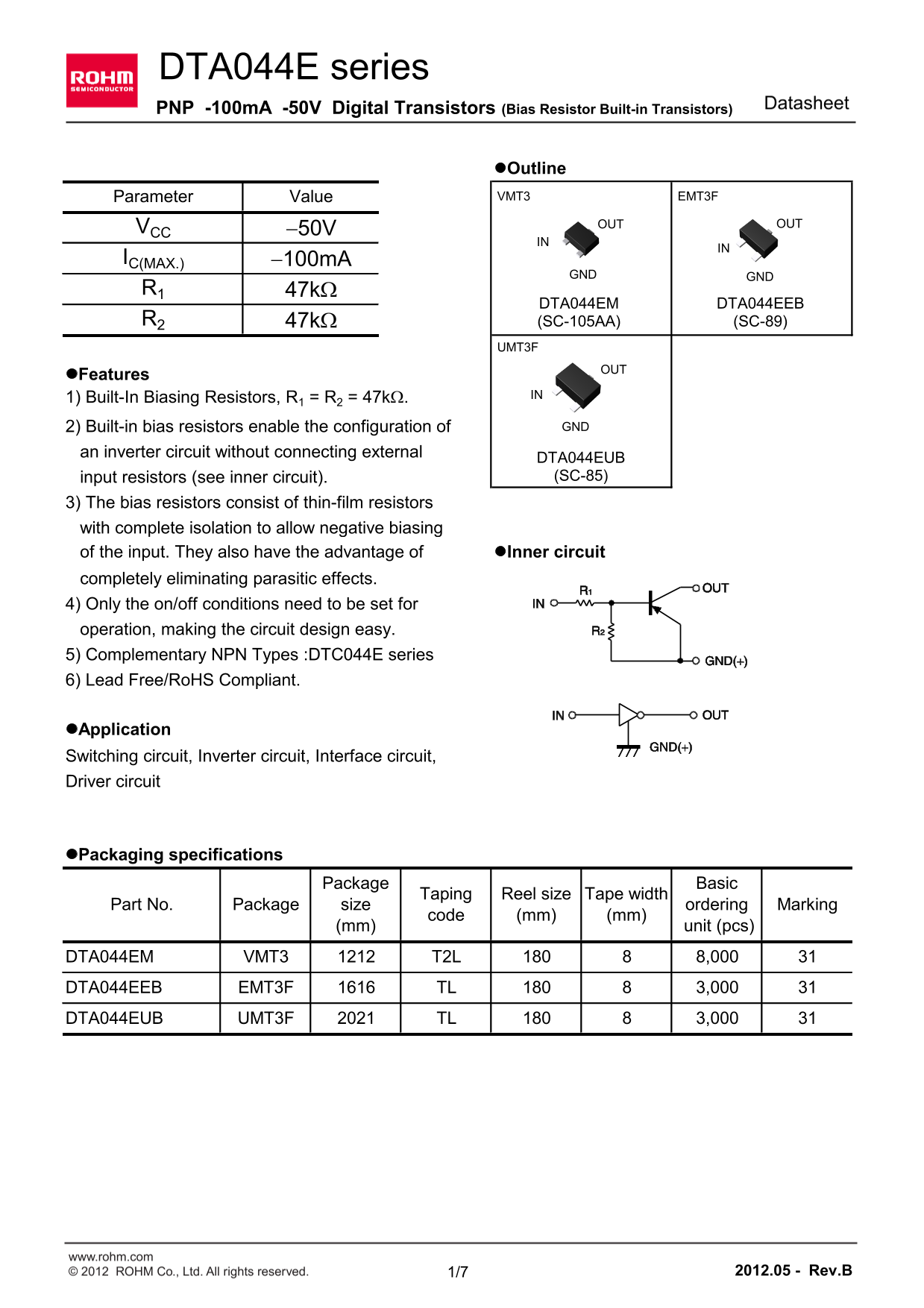

Page 1 Text Content
DTA044E series
Datasheet
PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value VMT3 EMT3F
OUT OUT
VCC -50V
IC(MAX.) -100m A
GND GND
DTA044EM DTA044EEB
R2 47k W (SC-105AA) (SC-89)
UMT3F
l Features
1) Built-In Biasing Resistors, R1 = R2 = 47k W. IN
2) Built-in bias resistors enable the configuration of GND
an inverter circuit without connecting external
DTA044EUB input resistors (see inner circuit). (SC-85)
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing
of the input. They also have the advantage of l Inner circuit
completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary NPN Types :DTC044E series 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTA044EM VMT3 T2L 8,000 DTA044EEB EMT3F TL 3,000 DTA044EUB UMT3F TL 3,000
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.05 - Rev.B
Page Summary Contents For ROHM DTA044EUB User Guide and Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 8 |
| File Size | 522.81 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do the built-in bias resistors function?
They enable inverter circuit configuration without external input resistors, using thin-film resistors for complete isolation to allow negative biasing.
What extreme environments or applications should I avoid using this device in?
Do not use it in systems requiring extremely high reliability, such as medical instruments, aerospace machinery, or nuclear-reactor controllers.
What are the key electrical specifications and current limits?
The maximum collector current limit is -100 mA. Power dissipation varies between 150 mW and 200 mW depending on the specific model.
