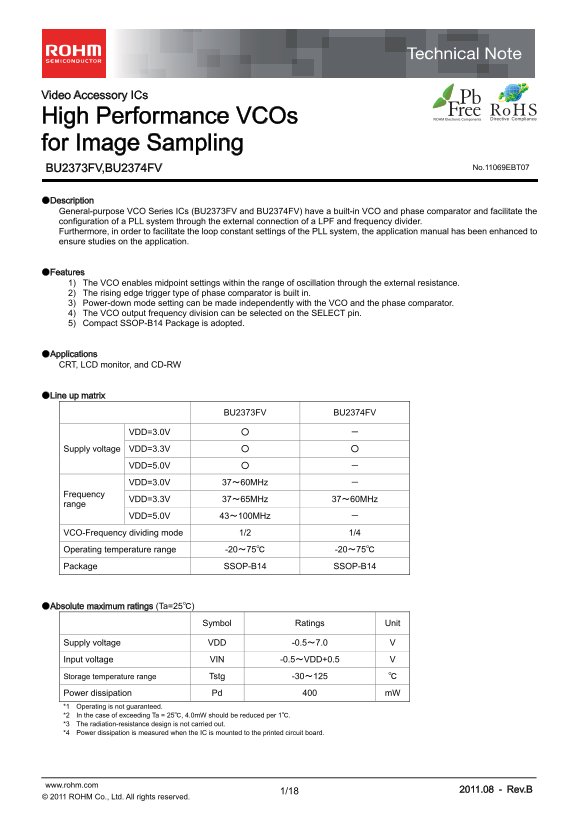

Page 1 Text Content
Video Accessory ICs
High Performance VCOs for Image Sampling
BU2373FV,BU2374FV No.11069EBT07
●Description General-purpose VCO Series ICs (BU2373FV and BU2374FV) have a built-in VCO and phase comparator and facilitate the configuration of a PLL system through the external connection of a LPF and frequency divider. Furthermore, in order to facilitate the loop constant settings of the PLL system, the application manual has been enhanced to ensure studies on the application.
●Features 1) The VCO enables midpoint settings within the range of oscillation through the external resistance. 2) The rising edge trigger type of phase comparator is built in. 3) Power-down mode setting can be made independently with the VCO and the phase comparator. 4) The VCO output frequency division can be selected on the SELECT pin. 5) Compact SSOP-B14 Package is adopted.
●Applications CRT, LCD monitor, and CD-RW
●Line up matrix
BU2373FV BU2374FV
VDD=3.0V ○ －
Supply voltage VDD=3.3V ○ ○
VDD=5.0V ○ － VDD=3.0V 37～60MHz －
Frequency
VDD=3.3V 37～65MHz 37～60MHz
range
VDD=5.0V 43～100MHz －
VCO-Frequency dividing mode 1/2 1/4 Operating temperature range -20～75℃ -20～75℃ Package SSOP-B14 SSOP-B14
●Absolute maximum ratings (Ta=25℃)
Symbol Ratings Unit
Supply voltage VDD -0.5～7.0 V Input voltage VIN -0.5～VDD+0.5 V Storage temperature range Tstg -30～125 ℃
Power dissipation Pd 400 m W *1 Operating is not guaranteed. *2 In the case of exceeding Ta = 25℃, 4.0m W should be reduced per 1℃. *3 The radiation-resistance design is not carried out. *4 Power dissipation is measured when the IC is mounted to the printed circuit board.
www.rohm.com 2011.08 - Rev.B
© 2011 ROHM Co., Ltd. All rights reserved.
