ROHM BU21010MUV Data Sheet

Summary

Advanced capacitive sensor controller with eight channels, this IC provides comprehensive touch input solutions, including built-in LED driving and sophisticated gesture recognition capabilities (short touch, long touch). Ideal for engineers designing portable electronics, mobile phones, and audio-visual equipment. This resource manual details all technical specifications, electrical characteristics, ADC functionality, and integration guidelines necessary to implement reliable, low-power capacitive switching systems in consumer devices.

📄 Preview PAGE OF 15

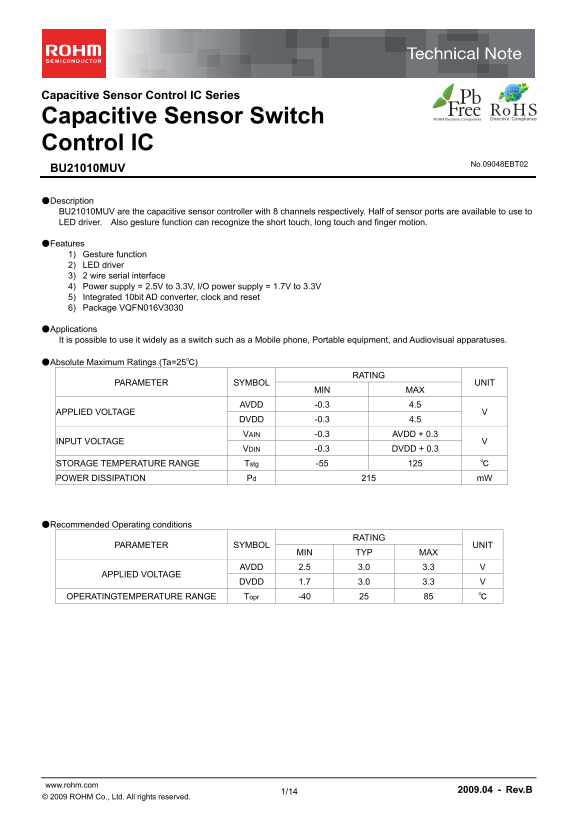

Page 1 Text Content

Capacitive Sensor Control IC Series

Capacitive Sensor Switch Control IC

No.09048EBT02

BU21010MUV

●Description BU21010MUV are the capacitive sensor controller with 8 channels respectively. Half of sensor ports are available to use to LED driver. Also gesture function can recognize the short touch, long touch and finger motion.

●Features 1) Gesture function 2) LED driver 3) 2 wire serial interface 4) Power supply = 2.5V to 3.3V, I/O power supply = 1.7V to 3.3V 5) Integrated 10bit AD converter, clock and reset 6) Package VQFN016V3030

●Applications It is possible to use it widely as a switch such as a Mobile phone, Portable equipment, and Audiovisual apparatuses.

●Absolute Maximum Ratings (Ta=25℃)

RATING

PARAMETER SYMBOL UNIT

MIN MAX

AVDD -0.3 4.5

APPLIED VOLTAGE

DVDD -0.3 4.5 VAIN -0.3 AVDD + 0.3

INPUT VOLTAGE

VDIN -0.3 DVDD + 0.3

STORAGE TEMPERATURE RANGE Tstg -55 125 ℃ POWER DISSIPATION Pd 215 m W

●Recommended Operating conditions

RATING

PARAMETER SYMBOL UNIT

MIN TYP MAX

AVDD 2.5 3.0 3.3 V

APPLIED VOLTAGE

DVDD 1.7 3.0 3.3 V

OPERATINGTEMPERATURE RANGE Topr -40 25 85 ℃

www.rohm.com 2009.04 - Rev.B

© 2009 ROHM Co., Ltd. All rights reserved.

Page Summary Contents For ROHM BU21010MUV Data Sheet

Page 1 Capacitive Sensor Control IC Series Capacitive Sensor Switch Control IC No.09048EBT02 BU21010MUV ●Description BU21010MUV are the capacitive sensor controller with 8 channels respectively. Half of sens...
Page 2 BU21010MUV Technical Note ●Electrical characteristics(Especially, Topr=25℃ and AVDD=DVDD=0 as long as it doesn't specify it.) RATING PARAMETER SYMBOL UNIT Condition MIN TYP MAX H INPUT VOLTAGE VIHIO D...
Page 3 BU21010MUV Technical Note ●Block Diagram, Pin configuration AVDD DVDD Sensor I/F CV Data correction and translate circuit ADC making to format SIN[7:0] SIN1/ SIN7/ SCL Conversion LED3 Data register se...
Page 4 BU21010MUV Technical Note ●Pin Description Pin Supply Reset Name I/O Function Note I/O Pad No. Reference Level Communication data sending and 1 SDA In/Out - DVDD "Hi-Z" ⑤ receiving Communica...
Page 5 BU21010MUV Technical Note ●HOST I/F ・ 2 wire serial, BUS Slave mode only Slave Address = 5Eh Normal (Normal mode. 100k Hz Transfer rate) Fs mode (Fast mode. 400k Hz Transfer rate) also. Not adapting s...
Page 6 BU21010MUV Technical Note ●Register map Address Register name R/W Length Explanation 1*h SENS_DATA R 1byte / channel Sensor output data. One for each channel. 32h BTN R 1byte Button On/Off. 35h BTN_ST...
Page 7 BU21010MUV Technical Note 【1*h : Sensor Output Data】 Name: SENS_DATA Address: 1* h (one byte per sensor channel) Description: The sensor output that converts to 10bit. Scaling, offsets and filtering (...
Page 8 BU21010MUV Technical Note 【62h : Gesture Direction Judgment】 Name: GES_DIR Address: 62h Description: Gesture direction judgment DIR_A : gesture direction A 0x E3(GES_CTL) reference DIR_B : gesture dir...
Page 9 BU21010MUV Technical Note 【E4h : Gesture Clock Setting】 Name: GES_CLK Address: E4h Description: This register allows setting of the time base for the gesture detection. It sets a divide ratio of the c...
Page 10 BU21010MUV Technical Note 【F0h : Sensor Channel Setting】 Name: SENS_CH Address: F0h Description: Individual enabling and disabling of sensor channels. 1:Effective 0:Not in use Bit7 Bit6 Bit5 Bit4 Bit3...
Page 11 BU21010MUV Technical Note 【F7h : Button OFF→ON Threshold】 Name: TH_ON2 Address: F7h Description: A second threshold value for determining a button off→on judgment of sensor. The sensor output value of...
Page 12 BU21010MUV Technical Note 【FCh: Switch OFF -> ON Threshold】 Name: TH_ON Address: FCh Description: This register provides a threshold value for determining if a sensor has transitioned from OFF to O...
Page 13 BU21010MUV Technical Note ●Operation mode This IC has a normal mode, idle mode and a shutdown mode as states of operation. 【Normal mode】 This is the normal operation of the device. Output pin INT=&quo...
Page 14 BU21010MUV Technical Note ●Ordering part number Part No Part No Package Packaging and forming specification MUV : VQFN016V3030 E2:Embossed tape and reel VQFN016V3030 <Tape and Reel information> ...
Page 15 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
