ROHM BH7649KS2 Data Sheet
Summary
This high-performance integrated signal switcher manages both audio and video signals in a single chip, providing reliable connectivity for demanding applications. It features 7 composite video inputs/2 outputs and 5 audio inputs/2 outputs, enhanced with selectable gains, Low Pass Filtering (LPF), MUTE functions, and built-in isolation circuitry. The manual details its comprehensive technical specifications, operational ranges, and I²C-BUS serial control capabilities. This component is essential for building reliable signal distribution systems in automotive environments, including car navigation units and DVD players.

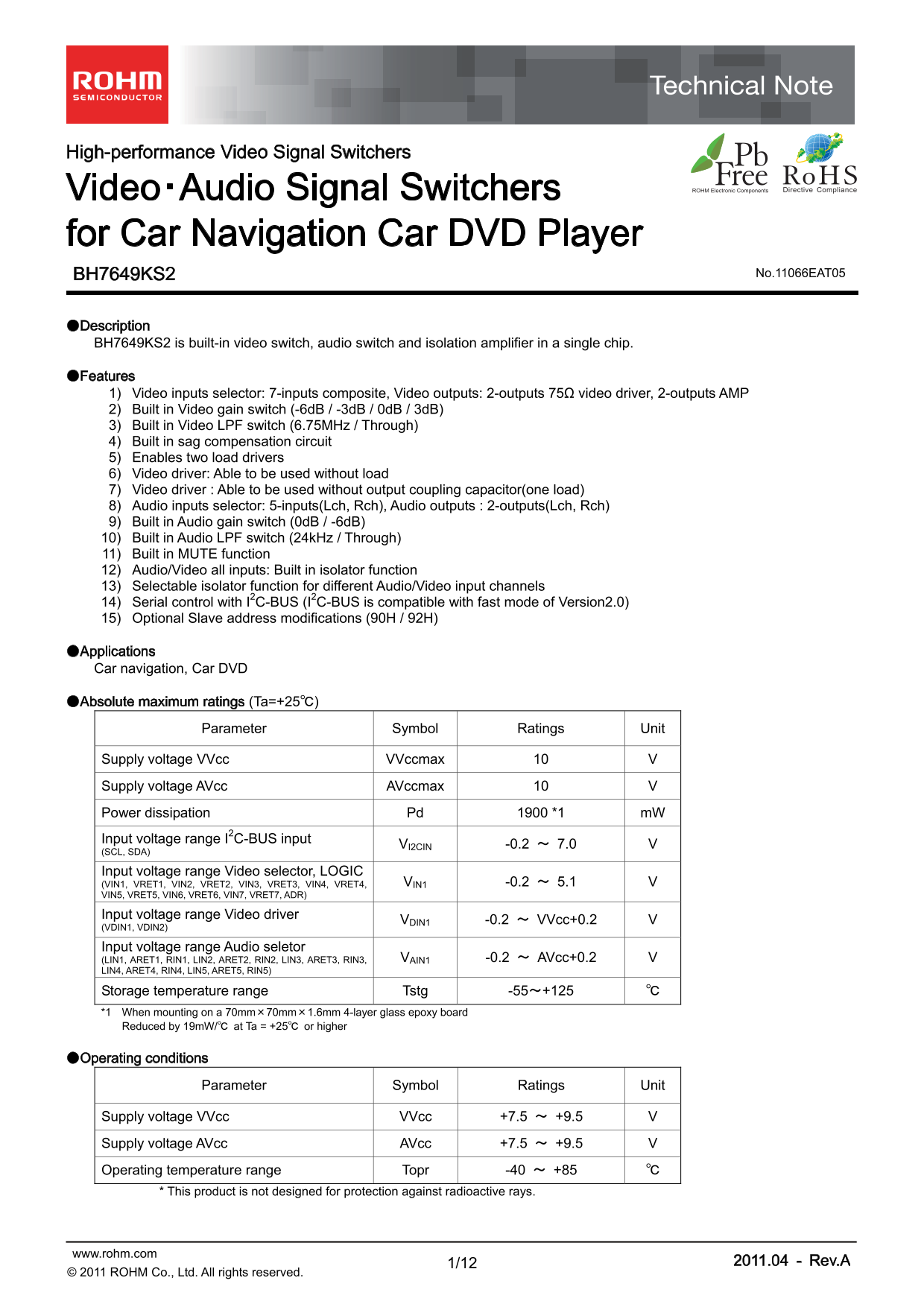

Page 1 Text Content
High-performance Video Signal Switchers
Video･Audio Signal Switchers for Car Navigation Car DVD Player
BH7649KS2 No.11066EAT05
●Description BH7649KS2 is built-in video switch, audio switch and isolation amplifier in a single chip.
●Features 1) Video inputs selector: 7-inputs composite, Video outputs: 2-outputs 75Ω video driver, 2-outputs AMP 2) Built in Video gain switch (-6d B / -3d B / 0d B / 3d B) 3) Built in Video LPF switch (6.75MHz / Through) 4) Built in sag compensation circuit 5) Enables two load drivers 6) Video driver: Able to be used without load 7) Video driver : Able to be used without output coupling capacitor(one load) 8) Audio inputs selector: 5-inputs(Lch, Rch), Audio outputs : 2-outputs(Lch, Rch) 9) Built in Audio gain switch (0d B / -6d B) 10) Built in Audio LPF switch (24k Hz / Through) 11) Built in MUTE function 12) Audio/Video all inputs: Built in isolator function 13) Selectable isolator function for different Audio/Video input channels 14) Serial control with I2C-BUS (I2C-BUS is compatible with fast mode of Version2.0) 15) Optional Slave address modifications (90H / 92H)
●Applications Car navigation, Car DVD
●Absolute maximum ratings (Ta=+25℃)
Parameter Symbol Ratings Unit
Supply voltage VVcc VVccmax 10 V Supply voltage AVcc AVccmax 10 V Power dissipation Pd 1900 *1 m W Input voltage range I2C-BUS input (SCL, SDA) VI2CIN -0.2 ～ 7.0 V Input voltage range Video selector, LOGIC
(VIN1, VRET1, VIN2, VRET2, VIN3, VRET3, VIN4, VRET4, VIN1 -0.2 ～ 5.1 V
VIN5, VRET5, VIN6, VRET6, VIN7, VRET7, ADR)
Input voltage range Video driver (VDIN1, VDIN2) VDIN1 -0.2 ～ VVcc+0.2 V Input voltage range Audio seletor
(LIN1, ARET1, RIN1, LIN2, ARET2, RIN2, LIN3, ARET3, RIN3, VAIN1 -0.2 ～ AVcc+0.2 V
LIN4, ARET4, RIN4, LIN5, ARET5, RIN5)
Storage temperature range Tstg -55～+125 ℃ *1 When mounting on a 70mm×70mm×1.6mm 4-layer glass epoxy board Reduced by 19m W/℃ at Ta = +25℃ or higher
●Operating conditions
Parameter Symbol Ratings Unit
Supply voltage VVcc VVcc +7.5 ～ +9.5 V Supply voltage AVcc AVcc +7.5 ～ +9.5 V Operating temperature range Topr -40 ～ +85 ℃
* This product is not designed for protection against radioactive rays.
www.rohm.com 2011.04 - Rev.A 1/12 © 2011 ROHM Co., Ltd. All rights reserved.
