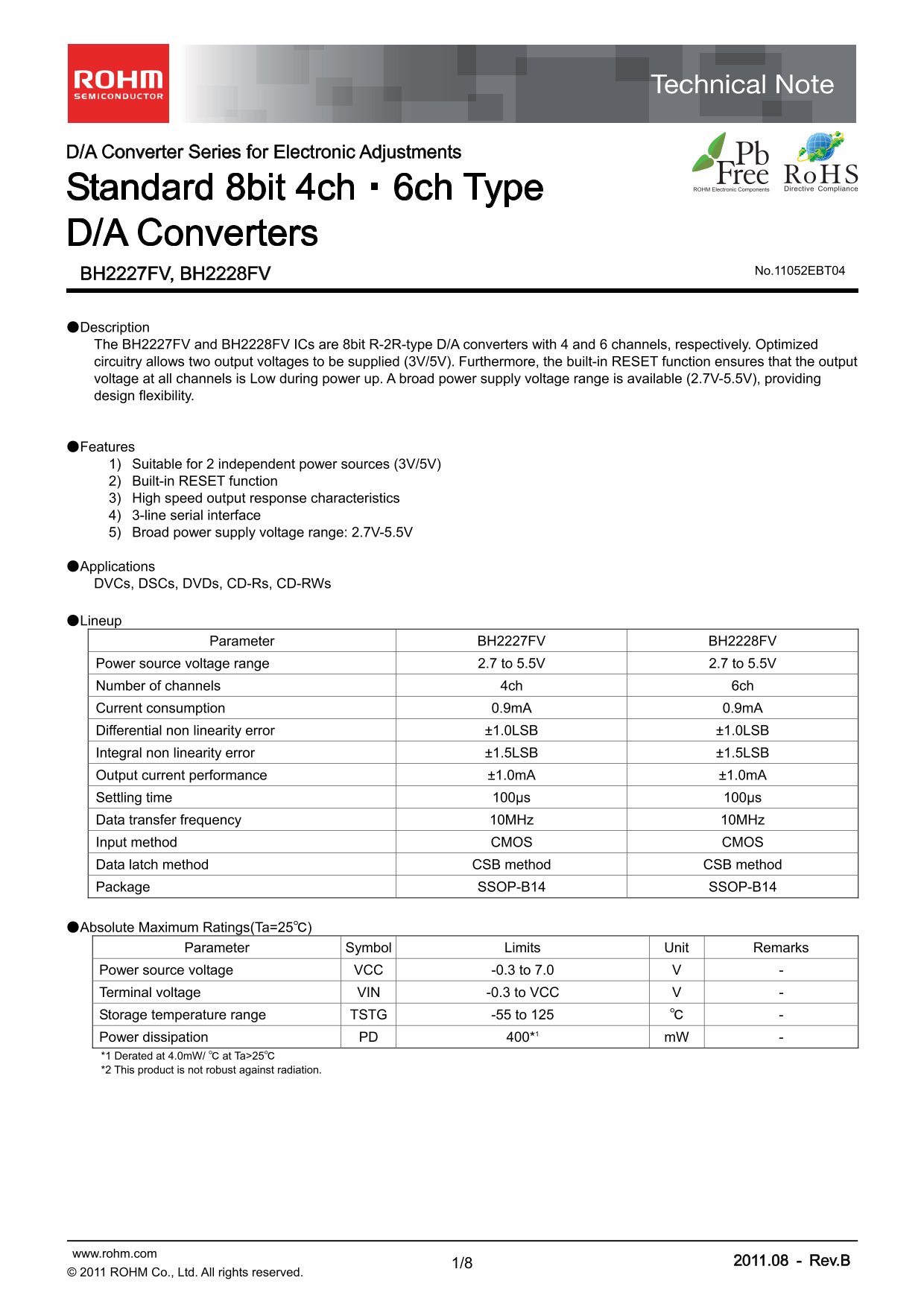

Page 1 Text Content
D/A Converter Series for Electronic Adjustments
Standard 8bit 4ch・6ch Type D/A Converters
No.11052EBT04
BH2227FV, BH2228FV
●Description The BH2227FV and BH2228FV ICs are 8bit R-2R-type D/A converters with 4 and 6 channels, respectively. Optimized circuitry allows two output voltages to be supplied (3V/5V). Furthermore, the built-in RESET function ensures that the output voltage at all channels is Low during power up. A broad power supply voltage range is available (2.7V-5.5V), providing design flexibility.
●Features 1) Suitable for 2 independent power sources (3V/5V) 2) Built-in RESET function 3) High speed output response characteristics 4) 3-line serial interface 5) Broad power supply voltage range: 2.7V-5.5V
●Applications DVCs, DSCs, DVDs, CD-Rs, CD-RWs
●Lineup
Parameter BH2227FV BH2228FV
Power source voltage range 2.7 to 5.5V 2.7 to 5.5V Number of channels 4ch 6ch Current consumption 0.9m A 0.9m A Differential non linearity error ±1.0LSB ±1.0LSB Integral non linearity error ±1.5LSB ±1.5LSB Output current performance ±1.0m A ±1.0m A Settling time 100µs 100µs Data transfer frequency 10MHz 10MHz Input method CMOS CMOS Data latch method CSB method CSB method Package SSOP-B14 SSOP-B14
●Absolute Maximum Ratings(Ta=25℃)
Parameter Symbol Limits Unit Remarks
Power source voltage VCC -0.3 to 7.0 V - Terminal voltage VIN -0.3 to VCC V - Storage temperature range TSTG -55 to 125 ℃ - Power dissipation PD 400*1 m W - *1 Derated at 4.0m W/ ℃ at Ta>25℃ *2 This product is not robust against radiation.
www.rohm.com 2011.08 - Rev.B
© 2011 ROHM Co., Ltd. All rights reserved.
