ROHM BD9206EFV Data Sheet
Summary
This constant-current LED driver IC powers various lighting applications, designed for high-accuracy control of up to 36 white LEDs in a 6x6 array. Featuring a wide operational input voltage range (8V~30V) and low standby current, it ensures reliable performance across diverse systems—from Note PCs and PDAs needing LCD backlights to advanced scanners and PPC devices requiring powerful illumination. The comprehensive manual provides detailed electrical specifications, application guidelines, and implementation details for system engineers and product developers integrating robust, energy-efficient LED lighting solutions into their electronics.

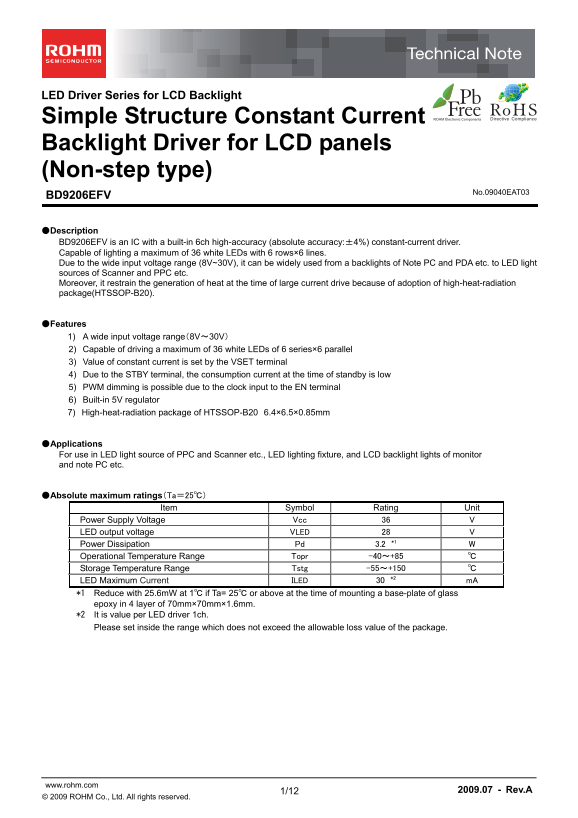

Page 1 Text Content
LED Driver Series for LCD Backlight
Simple Structure Constant Current Backlight Driver for LCD panels (Non-step type)
No.09040EAT03
BD9206EFV
●Description BD9206EFV is an IC with a built-in 6ch high-accuracy (absolute accuracy:±4%) constant-current driver. Capable of lighting a maximum of 36 white LEDs with 6 rows×6 lines. Due to the wide input voltage range (8V~30V), it can be widely used from a backlights of Note PC and PDA etc. to LED light sources of Scanner and PPC etc. Moreover, it restrain the generation of heat at the time of large current drive because of adoption of high-heat-radiation package(HTSSOP-B20).
●Features 1) A wide input voltage range（8V～30V） 2) Capable of driving a maximum of 36 white LEDs of 6 series×6 parallel 3) Value of constant current is set by the VSET terminal 4) Due to the STBY terminal, the consumption current at the time of standby is low 5) PWM dimming is possible due to the clock input to the EN terminal 6) Built-in 5V regulator 7) High-heat-radiation package of HTSSOP-B20 6.4×6.5×0.85mm
●Applications For use in LED light source of PPC and Scanner etc., LED lighting fixture, and LCD backlight lights of monitor and note PC etc.
●Absolute maximum ratings（Ta＝25℃）
Item Symbol Rating Unit
Power Supply Voltage Vcc 36 V LED output voltage VLED 28 V Power Dissipation Pd 3.2 *1 W Operational Temperature Range Topr -40～+85 ℃ Storage Temperature Range Tstg -55～+150 ℃ LED Maximum Current ILED 30 *2 m A *1 Reduce with 25.6m W at 1℃ if Ta= 25℃ or above at the time of mounting a base-plate of glass epoxy in 4 layer of 70mm×70mm×1.6mm. *2 It is value per LED driver 1ch. Please set inside the range which does not exceed the allowable loss value of the package.
www.rohm.com 2009.07 - Rev.A 1/12 © 2009 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM BD9206EFV Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 13 |
| File Size | 409.31 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum number of LEDs this driver can power?
It can drive a maximum of 36 white LEDs arranged in 6 rows by 6 lines.
What input voltages are compatible with this unit?
It supports a wide input voltage range from 8V to 30V.
How do I achieve dimming for the backlight?
PWM dimming is possible by applying a clock input to the EN terminal.
Is this suitable for different types of equipment?
Yes, it can be used in applications ranging from Note PCs and PDA backlights, to Scanner and PPC light sources.
