ROHM BD7836EFV Data Sheet
Summary
BD7836EFV is a Class-AB stereo speaker amplifier delivering up to 1.9W per channel, ideal for notebook PCs and portable audio devices. This efficient amplifier features low power consumption, pop noise suppression, and selectable gain settings, designed for general electronic equipment.

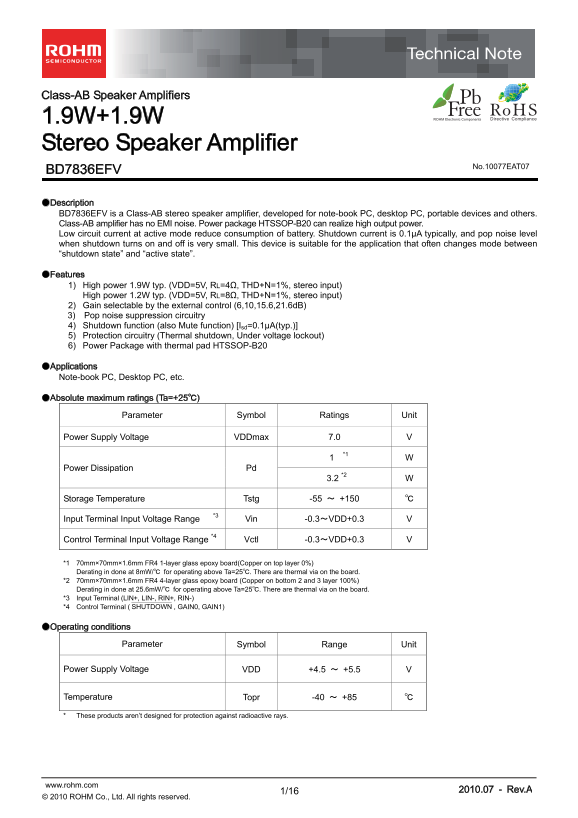

Page 1 Text Content
Class-AB Speaker Amplifiers
1.9W+1.9W Stereo Speaker Amplifier
No.10077EAT07
BD7836EFV
●Description BD7836EFV is a Class-AB stereo speaker amplifier, developed for note-book PC, desktop PC, portable devices and others. Class-AB amplifier has no EMI noise. Power package HTSSOP-B20 can realize high output power. Low circuit current at active mode reduce consumption of battery. Shutdown current is 0.1µA typically, and pop noise level when shutdown turns on and off is very small. This device is suitable for the application that often changes mode between “shutdown state” and “active state”.
●Features 1) High power 1.9W typ. (VDD=5V, RL=4Ω, THD+N=1%, stereo input) High power 1.2W typ. (VDD=5V, RL=8Ω, THD+N=1%, stereo input) 2) Gain selectable by the external control (6,10,15.6,21.6d B) 3) Pop noise suppression circuitry 4) Shutdown function (also Mute function) [Isd=0.1µA(typ.)] 5) Protection circuitry (Thermal shutdown, Under voltage lockout) 6) Power Package with thermal pad HTSSOP-B20
●Applications Note-book PC, Desktop PC, etc.
●Absolute maximum ratings (Ta=+25℃)
Parameter Symbol Ratings Unit
Power Supply Voltage VDDmax 7.0 V
Power Dissipation Pd
Storage Temperature Tstg -55 ～ +150 ℃
Input Terminal Input Voltage Range *3 Vin -0.3～VDD+0.3 V
Control Terminal Input Voltage Range *4 Vctl -0.3～VDD+0.3 V
*1 70mm×70mm×1.6mm FR4 1-layer glass epoxy board(Copper on top layer 0%) Derating in done at 8m W/℃ for operating above Ta=25℃. There are thermal via on the board. *2 70mm×70mm×1.6mm FR4 4-layer glass epoxy board (Copper on bottom 2 and 3 layer 100%) Derating in done at 25.6m W/℃ for operating above Ta=25℃. There are thermal via on the board. *3 Input Terminal (LIN+, LIN-, RIN+, RIN-)
*4 Control Terminal ( SHUTDOWN , GAIN0, GAIN1)
●Operating conditions
Parameter Symbol Range Unit
Power Supply Voltage VDD +4.5 ～ +5.5 V
Temperature Topr -40 ～ +85 ℃
* These products aren’t designed for protection against radioactive rays.
www.rohm.com 2010.07 - Rev.A 1/16 © 2010 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM BD7836EFV Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 17 |
| File Size | 555.37 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the typical output power ratings for 4Ω and 8Ω speakers?
With a 5V supply, it delivers 1.9W typical into a 4Ω load and 1.2W typical into an 8Ω load (THD+N=1%).
How do I adjust the amplifier's gain?
You select from four gains (6, 10, 15.6, or 21.6 dB) by setting the Hi/Lo levels on the external GAIN0 and GAIN1 pins.
What is the shutdown current?
The typical shutdown current is only 0.1µA, which is very low for battery-powered applications.
What protection features are included?
The amplifier includes protection circuitry for thermal shutdown and under-voltage lockout.
