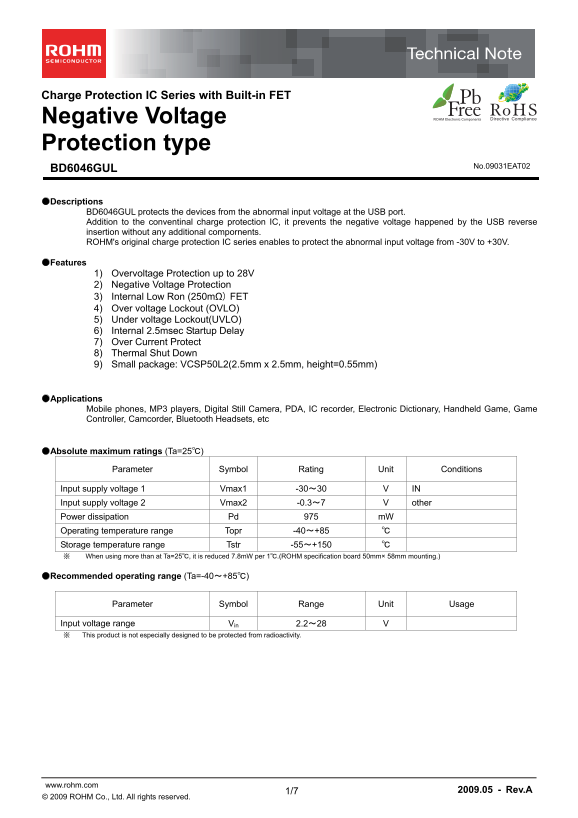

Charge Protection IC Series with Built-in FET
Negative Voltage Protection type
No.09031EAT02
BD6046GUL
●Descriptions
BD6046GUL protects the devices from the abnormal input voltage at the USB port. Addition to the conventinal charge protection IC, it prevents the negative voltage happened by the USB reverse insertion without any additional compornents. ROHM's original charge protection IC series enables to protect the abnormal input voltage from -30V to +30V.
●Features
1) Overvoltage Protection up to 28V 2) Negative Voltage Protection 3) Internal Low Ron (250mΩ) FET 4) Over voltage Lockout (OVLO) 5) Under voltage Lockout(UVLO) 6) Internal 2.5msec Startup Delay 7) Over Current Protect 8) Thermal Shut Down 9) Small package: VCSP50L2(2.5mm x 2.5mm, height=0.55mm)
●Applications
Mobile phones, MP3 players, Digital Still Camera, PDA, IC recorder, Electronic Dictionary, Handheld Game, Game Controller, Camcorder, Bluetooth Headsets, etc
●Absolute maximum ratings (Ta=25℃)
Parameter Symbol Rating Unit Conditions
Input supply voltage 1 Vmax1 -30～30 V IN Input supply voltage 2 Vmax2 -0.3～7 V other Power dissipation Pd 975 m W Operating temperature range Topr -40～+85 ℃ Storage temperature range Tstr -55～+150 ℃ ※ When using more than at Ta=25℃, it is reduced 7.8m W per 1℃.(ROHM specification board 50mm× 58mm mounting.)
●Recommended operating range (Ta=-40～+85℃)
Parameter Symbol Range Unit Usage
Input voltage range Vin 2.2～28 V ※ This product is not especially designed to be protected from radioactivity.
www.rohm.com 2009.05 - Rev.A
© 2009 ROHM Co., Ltd. All rights reserved.
