ROHM BD5424EFS Data Sheet

Summary

Discover the BD5424EFS, a high-efficiency Class-D stereo amplifier IC designed for compact and low-heat demanding applications like TV sets and audio electronics. Offering 20W + 20W output with industry-leading 91% efficiency, it ensures powerful, crystal-clear sound in minimal space without needing extra radiators. This technical manual is essential reading for electrical engineers and designers integrating the chip, providing detailed specifications on operating conditions, maximum ratings, and performance characteristics needed for reliable audio system development.

📄 Preview PAGE OF 18

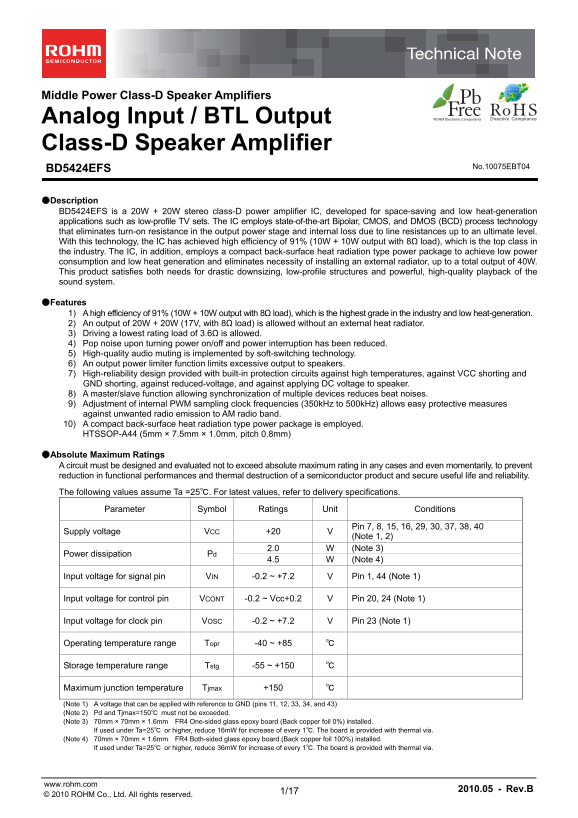

Page 1 Text Content

Middle Power Class-D Speaker Amplifiers

Analog Input / BTL Output Class-D Speaker Amplifier

No.10075EBT04

BD5424EFS

●Description BD5424EFS is a 20W + 20W stereo class-D power amplifier IC, developed for space-saving and low heat-generation applications such as low-profile TV sets. The IC employs state-of-the-art Bipolar, CMOS, and DMOS (BCD) process technology that eliminates turn-on resistance in the output power stage and internal loss due to line resistances up to an ultimate level. With this technology, the IC has achieved high efficiency of 91% (10W + 10W output with 8Ω load), which is the top class in the industry. The IC, in addition, employs a compact back-surface heat radiation type power package to achieve low power consumption and low heat generation and eliminates necessity of installing an external radiator, up to a total output of 40W. This product satisfies both needs for drastic downsizing, low-profile structures and powerful, high-quality playback of the sound system.

●Features 1) A high efficiency of 91% (10W + 10W output with 8Ω load), which is the highest grade in the industry and low heat-generation. 2) An output of 20W + 20W (17V, with 8Ω load) is allowed without an external heat radiator. 3) Driving a lowest rating load of 3.6Ω is allowed. 4) Pop noise upon turning power on/off and power interruption has been reduced. 5) High-quality audio muting is implemented by soft-switching technology. 6) An output power limiter function limits excessive output to speakers. 7) High-reliability design provided with built-in protection circuits against high temperatures, against VCC shorting and

GND shorting, against reduced-voltage, and against applying DC voltage to speaker. 8) A master/slave function allowing synchronization of multiple devices reduces beat noises. 9) Adjustment of internal PWM sampling clock frequencies (350k Hz to 500k Hz) allows easy protective measures against unwanted radio emission to AM radio band. 10) A compact back-surface heat radiation type power package is employed. HTSSOP-A44 (5mm × 7.5mm × 1.0mm, pitch 0.8mm)

●Absolute Maximum Ratings A circuit must be designed and evaluated not to exceed absolute maximum rating in any cases and even momentarily, to prevent reduction in functional performances and thermal destruction of a semiconductor product and secure useful life and reliability. The following values assume Ta =25℃. For latest values, refer to delivery specifications.

Parameter Symbol Ratings Unit Conditions

Supply voltage VCC +20 V Pin 7, 8, 15, 16, 29, 30, 37, 38, 40

(Note 1, 2) (Note 3)

Power dissipation Pd 2.0

4.5 (Note 4)

Input voltage for signal pin VIN -0.2 ~ +7.2 V Pin 1, 44 (Note 1)

Input voltage for control pin VCONT -0.2 ~ Vcc+0.2 V Pin 20, 24 (Note 1)

Input voltage for clock pin VOSC -0.2 ~ +7.2 V Pin 23 (Note 1)

Operating temperature range Topr -40 ~ +85 ℃

Storage temperature range Tstg -55 ~ +150 ℃

Maximum junction temperature Tjmax +150 ℃ (Note 1) A voltage that can be applied with reference to GND (pins 11, 12, 33, 34, and 43) (Note 2) Pd and Tjmax=150℃ must not be exceeded. (Note 3) 70mm × 70mm × 1.6mm FR4 One-sided glass epoxy board (Back copper foil 0%) installed. If used under Ta=25℃ or higher, reduce 16m W for increase of every 1℃. The board is provided with thermal via. (Note 4) 70mm × 70mm × 1.6mm FR4 Both-sided glass epoxy board (Back copper foil 100%) installed. If used under Ta=25℃ or higher, reduce 36m W for increase of every 1℃. The board is provided with thermal via.

www.rohm.com 2010.05 - Rev.B

© 2010 ROHM Co., Ltd. All rights reserved.

Page Summary Contents For ROHM BD5424EFS Data Sheet

Page 1 Middle Power Class-D Speaker Amplifiers Analog Input / BTL Output Class-D Speaker Amplifier No.10075EBT04 BD5424EFS ●Description BD5424EFS is a 20W + 20W stereo class-D power amplifier IC, developed f...
Page 2 BD5424EFS Technical Note ●Operating Conditions The following values assume Ta =25℃. Check for latest values in delivery specifications. Parameter Symbol Ratings Unit Conditions Supply voltage VCC +10 ...
Page 3 BD5424EFS Technical Note ●Electrical characteristic curves (Reference data) (1) Under Stereo Operation (RL=8Ω) d B IN d B Vcc=12V Vcc=12V RL=8Ω RL=8Ω BW=20~20k Hz Po=1W 6k Hz BW=20~20k Hz 1k Hz 100Hz ...
Page 4 BD5424EFS Technical Note ●Electrical characteristic curves (Reference data) – Continued IC IC IE IC IE Vcc=10V Vcc=12V RL=8Ω RL=8Ω fin=1k Hz fin=1k Hz OUTPUT POWER (W/ch) OUTPUT POWER (W/ch) Fig. 7 Ef...
Page 5 BD5424EFS Technical Note ●Electrical characteristic curves (Reference data) – Continued MUTEX MUTEX Vcc=12V 10V/div Pin 10V/div Vcc=12V RL =8 Po=500m W Po=500m W TM fin=500Hz TM 5V/div fin=500Hz 5V/di...
Page 6 BD5424EFS Technical Note ●Electrical characteristic curves (Reference data) – Continued (2)Under Stereo Operation (RL=6Ω) IC IE IC IE RL=6Ω THD=10% fin=1k Hz VCC (V) Fig. 18 Output power - Power suppl...
Page 7 BD5424EFS Technical Note ●Electrical characteristic curves (Reference data) – Continued (3)Under Stereo Operation (RL=4Ω) IC IE IC IE RL=4Ω fin=1k Hz THD=10% VCC (V) Fig. 23 Output power - Power suppl...
Page 8 BD5424EFS Technical Note ●Pin Assignment Top View IN IN ow er IL im it IL IL DRIVER DRIVER 2P 2P 2N DRIVER DRIVER 1P 1N er -o ff IN ro te ct io og ic IN et ec to ft te nd er lt ag ro te ct io Fig. 28 ...
Page 9 BD5424EFS Technical Note ●Explanation of Pin Functions (Provided pin voltages are typical values.) No. Symbol Pin voltage Pin description Internal equalizing circuit ch1 Analog signal input pin IN1 ch...
Page 10 BD5424EFS Technical Note ●Explanation of Pin Functions - Continued No. Symbol Pin voltage Pin description Internal equalizing circuit 6 BSP1P - ch1 positive bootstrap pin Connect a capacitor. 7, 8 VCC...
Page 11 BD5424EFS Technical Note ●Explanation of Pin Functions - Continued No. Symbol Pin voltage Pin description Internal equalizing circuit Shutdown control pin 21 SDX - H: Shutdown off L: Shutdown on N.C. ...
Page 12 BD5424EFS Technical Note ●Explanation of Pin Functions - Continued No. Symbol Pin voltage Pin description Internal equalizing circuit Instantaneous power interruption detecting voltage setting pin 27 ...
Page 13 BD5424EFS Technical Note ●Explanation of Pin Functions - Continued No. Symbol Pin voltage Pin description Internal equalizing circuit Analog signal system bias pin 42 FILA 3.5V Connect a capacitor. 43...
Page 14 BD5424EFS Technical Note ●Application Circuit Diagram ・Vcc=10V ~ 18V IN ch IN ch C35 C31 er Li it GNDA VCCA C38 C43 10µF GNDP 1µF IV IV 1P 2P ch ch IV IV 1N 2N ro te ct io ns og ic IN IN ow er -o ff n...
Page 15 BD5424EFS Technical Note Table 1 BOM List of Stereo Operation with 4Ω Load Configuration Rated Temperature No. Item Part Number Vendor Value Tolerance Quantity Reference voltage characteristics mm inc...
Page 16 BD5424EFS Technical Note ●Notes for use Notes for use 1. About absolute maximum ratings If an applied voltage or an operating temperature exceeds an absolute maximum rating, it may cause destruction o...
Page 17 BD5424EFS Technical Note ●Ordering part number Part No. Part No. Package Packaging and forming specification EFS:HTSSOP-44 E2: Embossed tape and reel HTSSOP-A44 (5 .0 <Tape and Reel information>...
Page 18 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 18
File Size 559.18 KB
Published June 15, 2026
2 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What built-in protections are included in the amplifier design?

It features built-in protection circuits against high temperatures, VCC shorting, GND shorting, reduced voltage, and applying DC voltage to the speaker.

How much total output can it achieve without an external heat radiator?

The IC allows a total output of 40W (20W + 20W) without needing an external heat radiator.

What is the minimum effective load resistance for this amplifier?

The circuit supports driving a lowest rating load of 3.6 Ω.
