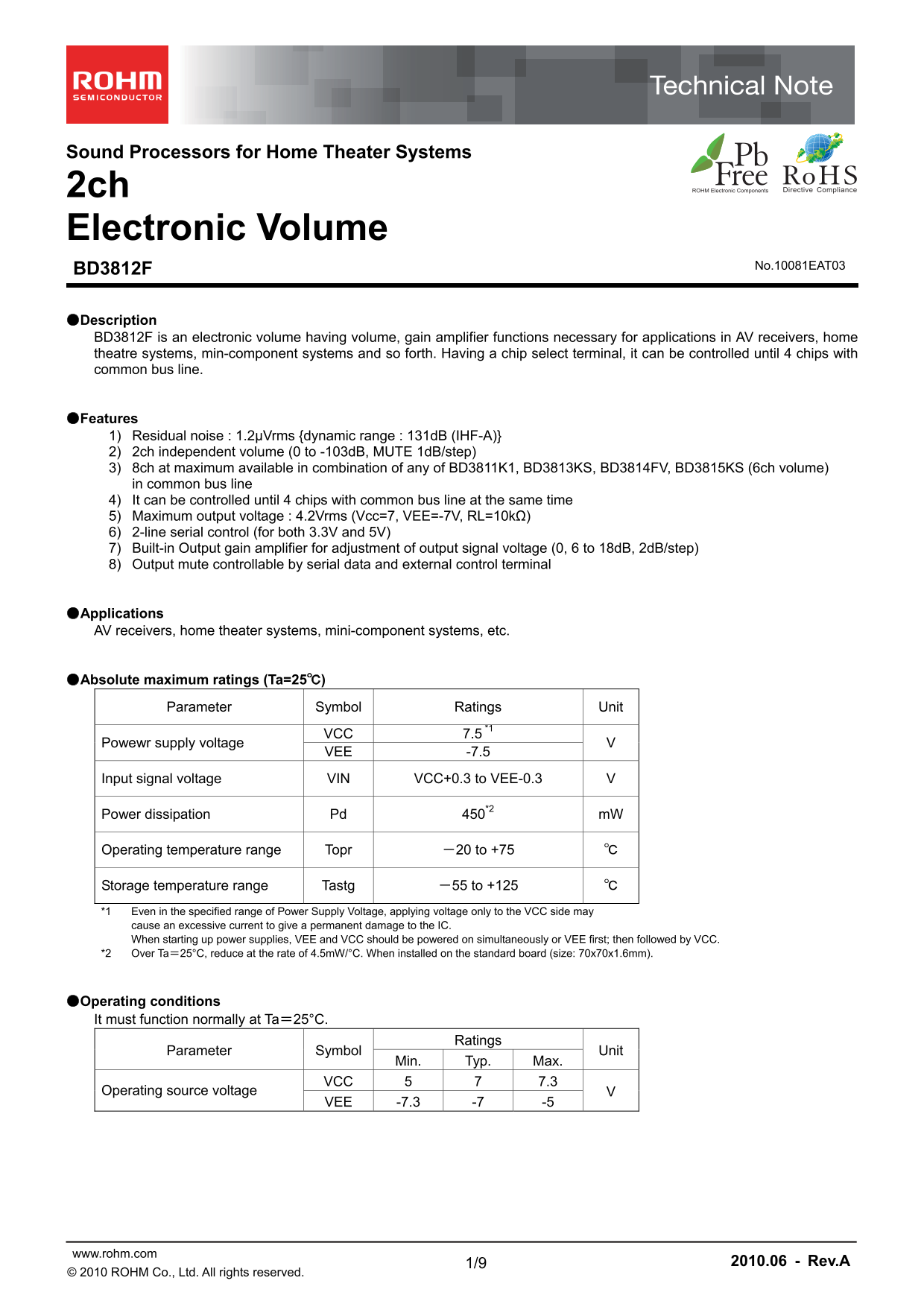

Page 1 Text Content
Sound Processors for Home Theater Systems
2ch Electronic Volume
No.10081EAT03
BD3812F
●Description BD3812F is an electronic volume having volume, gain amplifier functions necessary for applications in AV receivers, home theatre systems, min-component systems and so forth. Having a chip select terminal, it can be controlled until 4 chips with common bus line.
●Features 1) Residual noise : 1.2µVrms {dynamic range : 131d B (IHF-A)} 2) 2ch independent volume (0 to -103d B, MUTE 1d B/step) 3) 8ch at maximum available in combination of any of BD3811K1, BD3813KS, BD3814FV, BD3815KS (6ch volume) in common bus line 4) It can be controlled until 4 chips with common bus line at the same time 5) Maximum output voltage : 4.2Vrms (Vcc=7, VEE=-7V, RL=10kΩ) 6) 2-line serial control (for both 3.3V and 5V) 7) Built-in Output gain amplifier for adjustment of output signal voltage (0, 6 to 18d B, 2d B/step) 8) Output mute controllable by serial data and external control terminal
●Applications AV receivers, home theater systems, mini-component systems, etc.
●Absolute maximum ratings (Ta=25℃)
Parameter Symbol Ratings Unit
VCC 7.5
Powewr supply voltage
VEE -7.5
Input signal voltage VIN VCC+0.3 to VEE-0.3 V
Power dissipation Pd 450*2 m W
Operating temperature range Topr －20 to +75 ℃
Storage temperature range Tastg －55 to +125 ℃ *1 Even in the specified range of Power Supply Voltage, applying voltage only to the VCC side may cause an excessive current to give a permanent damage to the IC. When starting up power supplies, VEE and VCC should be powered on simultaneously or VEE first; then followed by VCC. *2 Over Ta＝25°C, reduce at the rate of 4.5m W/°C. When installed on the standard board (size: 70x70x1.6mm).
●Operating conditions It must function normally at Ta＝25°C.
Ratings
Parameter Symbol Unit
Min. Typ. Max.
VCC 5 7 7.3
Operating source voltage
VEE -7.3 -7 -5
www.rohm.com 2010.06 - Rev.A
© 2010 ROHM Co., Ltd. All rights reserved.
