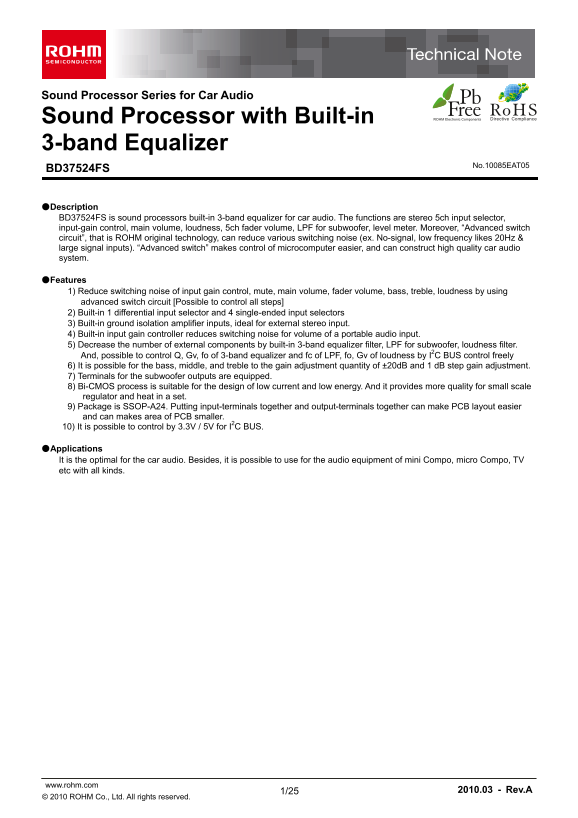

Sound Processor Series for Car Audio
Sound Processor with Built-in 3-band Equalizer
No.10085EAT05
BD37524FS
●Description BD37524FS is sound processors built-in 3-band equalizer for car audio. The functions are stereo 5ch input selector, input-gain control, main volume, loudness, 5ch fader volume, LPF for subwoofer, level meter. Moreover, “Advanced switch circuit”, that is ROHM original technology, can reduce various switching noise (ex. No-signal, low frequency likes 20Hz & large signal inputs). “Advanced switch” makes control of microcomputer easier, and can construct high quality car audio system.
●Features 1) Reduce switching noise of input gain control, mute, main volume, fader volume, bass, treble, loudness by using
advanced switch circuit [Possible to control all steps] 2) Built-in 1 differential input selector and 4 single-ended input selectors 3) Built-in ground isolation amplifier inputs, ideal for external stereo input. 4) Built-in input gain controller reduces switching noise for volume of a portable audio input. 5) Decrease the number of external components by built-in 3-band equalizer filter, LPF for subwoofer, loudness filter. And, possible to control Q, Gv, fo of 3-band equalizer and fc of LPF, fo, Gv of loudness by I2C BUS control freely 6) It is possible for the bass, middle, and treble to the gain adjustment quantity of ±20d B and 1 d B step gain adjustment. 7) Terminals for the subwoofer outputs are equipped. 8) Bi-CMOS process is suitable for the design of low current and low energy. And it provides more quality for small scale regulator and heat in a set. 9) Package is SSOP-A24. Putting input-terminals together and output-terminals together can make PCB layout easier and can makes area of PCB smaller. 10) It is possible to control by 3.3V / 5V for I2C BUS.
●Applications It is the optimal for the car audio. Besides, it is possible to use for the audio equipment of mini Compo, micro Compo, TV etc with all kinds.
www.rohm.com 2010.03 - Rev.A 1/25 © 2010 ROHM Co., Ltd. All rights reserved.
