ROHM BD3539FVM Data Sheet

Summary

Master the design of high-speed memory interfaces with these termination regulator ICs. This component offers a linear power solution for DDR1, DDR2, and DDR3 SDRAM, providing robust sink/source current up to 1A while maintaining excellent voltage accuracy. The manual provides comprehensive technical guidance, including operational parameters, absolute maximum ratings, and integration details for dependable use in general-purpose electronic equipment. Ideal for electronics designers requiring reliable and precise power regulation for critical memory subsystems.

📄 Preview PAGE OF 12

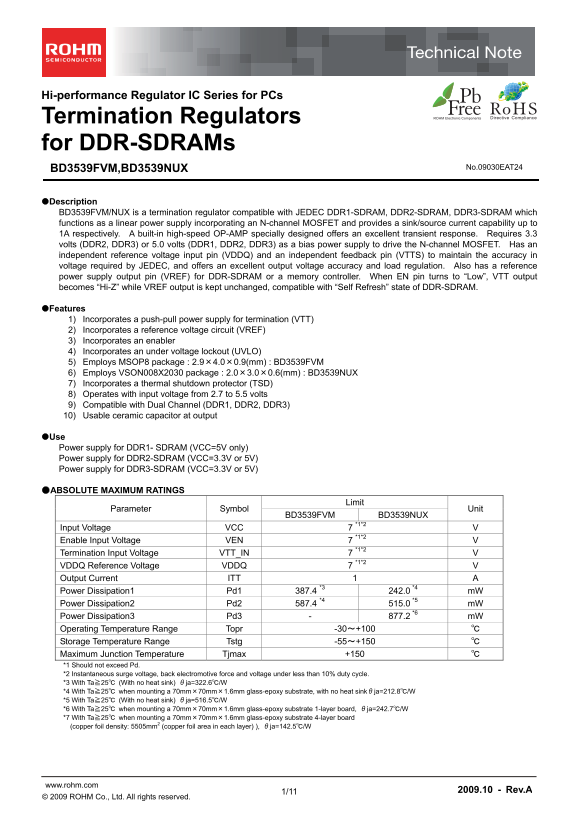

Page 1 Text Content

Hi-performance Regulator IC Series for PCs

Termination Regulators for DDR-SDRAMs

BD3539FVM,BD3539NUX No.09030EAT24

Description BD3539FVM/NUX is a termination regulator compatible with JEDEC DDR1-SDRAM, DDR2-SDRAM, DDR3-SDRAM which functions as a linear power supply incorporating an N-channel MOSFET and provides a sink/source current capability up to 1A respectively. A built-in high-speed OP-AMP specially designed offers an excellent transient response. Requires 3.3 volts (DDR2, DDR3) or 5.0 volts (DDR1, DDR2, DDR3) as a bias power supply to drive the N-channel MOSFET. Has an independent reference voltage input pin (VDDQ) and an independent feedback pin (VTTS) to maintain the accuracy in voltage required by JEDEC, and offers an excellent output voltage accuracy and load regulation. Also has a reference power supply output pin (VREF) for DDR-SDRAM or a memory controller. When EN pin turns to “Low”, VTT output becomes “Hi-Z” while VREF output is kept unchanged, compatible with “Self Refresh” state of DDR-SDRAM.

Features 1) Incorporates a push-pull power supply for termination (VTT) 2) Incorporates a reference voltage circuit (VREF) 3) Incorporates an enabler 4) Incorporates an under voltage lockout (UVLO) 5) Employs MSOP8 package : 2.9×4.0×0.9(mm) : BD3539FVM 6) Employs VSON008X2030 package : 2.0×3.0×0.6(mm) : BD3539NUX 7) Incorporates a thermal shutdown protector (TSD) 8) Operates with input voltage from 2.7 to 5.5 volts 9) Compatible with Dual Channel (DDR1, DDR2, DDR3) 10) Usable ceramic capacitor at output

Use Power supply for DDR1- SDRAM (VCC=5V only) Power supply for DDR2-SDRAM (VCC=3.3V or 5V) Power supply for DDR3-SDRAM (VCC=3.3V or 5V)

●ABSOLUTE MAXIMUM RATINGS

Limit

Parameter Symbol Unit

BD3539FVM BD3539NUX

Input Voltage VCC 7 *1*2 V Enable Input Voltage VEN 7 *1*2 V Termination Input Voltage VTT_IN 7 *1*2 V VDDQ Reference Voltage VDDQ 7 *1*2 V Output Current ITT 1 A

Power Dissipation1 Pd1 387.4 *3 242.0

Power Dissipation2 Pd2 587.4 *4 515.0

Power Dissipation3 Pd3 - 877.2 Operating Temperature Range Topr -30~+100 ℃ Storage Temperature Range Tstg -55~+150 ℃ Maximum Junction Temperature Tjmax +150 ℃ *1 Should not exceed Pd. *2 Instantaneous surge voltage, back electromotive force and voltage under less than 10% duty cycle. *3 With Ta≧25℃ (With no heat sink) θja=322.6℃/W *4 With Ta≧25℃ when mounting a 70mm×70mm×1.6mm glass-epoxy substrate, with no heat sinkθja=212.8℃/W *5 With Ta≧25℃ (With no heat sink) θja=516.5℃/W *6 With Ta≧25℃ when mounting a 70mm×70mm×1.6mm glass-epoxy substrate 1-layer board, θja=242.7℃/W *7 With Ta≧25℃ when mounting a 70mm×70mm×1.6mm glass-epoxy substrate 4-layer board (copper foil density: 5505mm2 (copper foil area in each layer) ), θja=142.5℃/W

www.rohm.com 2009.10 - Rev.A

© 2009 ROHM Co., Ltd. All rights reserved.

Page Summary Contents For ROHM BD3539FVM Data Sheet

Page 1 Hi-performance Regulator IC Series for PCs Termination Regulators for DDR-SDRAMs BD3539FVM,BD3539NUX No.09030EAT24 Description BD3539FVM/NUX is a termination regulator compatible with JEDEC DDR1-SDRA...
Page 2 BD3539FVM,BD3539NUX Technical Note ●Operating Conditions(Ta=25℃) Limit Parameter Symbol Unit MIN MAX Input Voltage VCC 2.7 5.5 V Termination Input Voltage VTT_IN 1.0 5.5 V VDDQ Reference Voltage VDDQ ...
Page 3 BD3539FVM,BD3539NUX Technical Note ●Reference Data VTT(50m V/div) VREF(50m V/div) VREF(50m V/div) VTT(50m V/div) sink sink ITT(1A/div) VDDQ VTT_IN ITT(1A/div) source source VTT 10µsec/Div 10µsec/Div 2...
Page 4 BD3539FVM,BD3539NUX Technical Note ●Block Diagram VCC VDDQ VTT_IN VCC VDDQ VTT_IN VCC VCC Reference SOFT Block TSD TSD VCC EN EN UVLO TSD EN Thermal TSD UVLO Protection Enable VDDQ EN EN ●PIN Configra...
Page 5 BD3539FVM,BD3539NUX Technical Note ●Description of operations ・VCC In BD3539FVM/NUX, an independent power input pin is provided for an internal circuit operation of the IC. This is used to drive the a...
Page 6 BD3539FVM,BD3539NUX Technical Note ●Evaluation Board ■ BD3539FVM Evaluation Board Circuit GND GND EN U1 SW1 BD3539FVM VTT_IN VTT VTT_IN VTT VDDQ VTTS VDDQ VTTS C9 VREF GND C1 ■ BD3539FVM Evaluation Bo...
Page 7 BD3539FVM,BD3539NUX Technical Note ●Example of layout pattern [Example of board layout pattern] [Pin configuration] Input capacitor Cin of VTT_IN should be placed close to VTT_IN pin as possible, and ...
Page 8 BD3539FVM,BD3539NUX Technical Note ●Note for Use 1.Absolute maximum ratings For the present product, thoroughgoing quality control is carried out, but in the event that applied voltage, working temper...
Page 9 BD3539FVM,BD3539NUX Technical Note 10. GND wiring pattern When both a small-signal GND and high current GND are present, single-point grounding (at the set standard point) is recommended, in order to ...
Page 10 BD3539FVM,BD3539NUX Technical Note ●Heat loss ow er is si pa tio [P d] Thermal design must be conducted with the operation under the conditions listed below (which are the guaranteed temperature range...
Page 11 BD3539FVM,BD3539NUX Technical Note ●Ordering part number Part No. Part No. Package Packaging and forming specification FVM: MSOP8 TR: Embossed tape and reel NUX: VSON008X2030 MSOP8 <Tape and Reel i...
Page 12 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 12
File Size 433.42 KB
Published June 18, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Which DDR SDRAM types are compatible with this regulator IC?

It is compatible with JEDEC DDR1-SDRAM, DDR2-SDRAM, and DDR3-SDRAM.

What is required for the bias power supply voltage?

A 5.0 volts supply is needed for DDR1/DDR2/DDR3, while 3.3 volts suffices for DDR2/DDR3.

How does the circuit behave during a Self Refresh state?

When the EN pin goes low, the VTT output becomes "Hi-Z," but the VREF output remains unchanged.

What is the maximum current capability and load regulation accuracy?

It provides sink/source current up to 1A and features a load regulation of 30mV.
