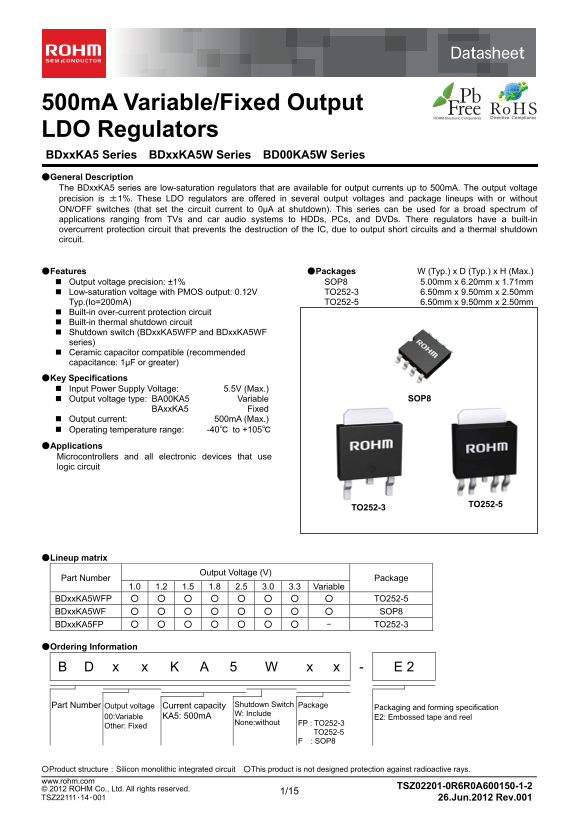

Datasheet
500m A Variable/Fixed Output LDO Regulators BDxx KA5 Series BDxx KA5W Series BD00KA5W Series ●General Description The BDxx KA5 series are low-saturation regulators that are available for output currents up to 500m A. The output voltage precision is ±1%. These LDO regulators are offered in several output voltages and package lineups with or without ON/OFF switches (that set the circuit current to 0μA at shutdown). This series can be used for a broad spectrum of applications ranging from TVs and car audio systems to HDDs, PCs, and DVDs. There regulators have a built-in overcurrent protection circuit that prevents the destruction of the IC, due to output short circuits and a thermal shutdown circuit.
●Features ●Packages W (Typ.) x D (Typ.) x H (Max.) Output voltage precision: ±1% SOP8 5.00mm x 6.20mm x 1.71mm Low-saturation voltage with PMOS output: 0.12V TO252-3 6.50mm x 9.50mm x 2.50mm Typ.(Io=200m A) TO252-5 6.50mm x 9.50mm x 2.50mm Built-in over-current protection circuit Built-in thermal shutdown circuit Shutdown switch (BDxx KA5WFP and BDxx KA5WF series) Ceramic capacitor compatible (recommended capacitance: 1μF or greater) ●Key Specifications Input Power Supply Voltage: 5.5V (Max.)
Output voltage type: BA00KA5 Variable SOP8
BAxx KA5 Fixed
Output current: 500m A (Max.) Operating temperature range: -40℃ to +105℃ ●Applications Microcontrollers and all electronic devices that use logic circuit
TO252-5
TO252-3
●Lineup matrix
Part Number Output Voltage (V) Package
1.0 1.2 1.5 1.8 2.5 3.0 3.3 Variable
BDxx KA5WFP ○ ○ ○ ○ ○ ○ ○ ○ TO252-5 BDxx KA5WF ○ ○ ○ ○ ○ ○ ○ ○ SOP8 BDxx KA5FP ○ ○ ○ ○ ○ ○ ○ - TO252-3
●Ordering Information
Part Number Output voltage Current capacity Shutdown Switch Package
Packaging and forming specification
W: Include
00:Variable KA5: 500m A E2: Embossed tape and reel
None:without FP : TO252-3
Other: Fixed
TO252-5 F : SOP8
○Product structure：Silicon monolithic integrated circuit ○This product is not designed protection against radioactive rays. www.rohm.com
1/15 TSZ02201-0R6R0A600150-1-2© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111･14･001 26.Jun.2012 Rev.001
