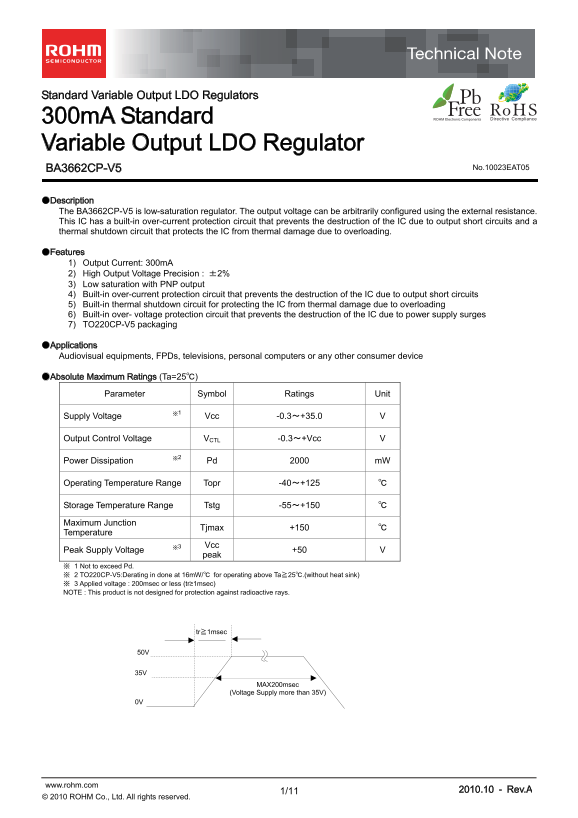

Standard Variable Output LDO Regulators
300m A Standard Variable Output LDO Regulator
BA3662CP-V5 No.10023EAT05
●Description The BA3662CP-V5 is low-saturation regulator. The output voltage can be arbitrarily configured using the external resistance. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal shutdown circuit that protects the IC from thermal damage due to overloading.
●Features 1) Output Current: 300m A 2) High Output Voltage Precision : ±2% 3) Low saturation with PNP output 4) Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits 5) Built-in thermal shutdown circuit for protecting the IC from thermal damage due to overloading 6) Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges 7) TO220CP-V5 packaging
●Applications Audiovisual equipments, FPDs, televisions, personal computers or any other consumer device
●Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Ratings Unit
Supply Voltage ※1 Vcc -0.3～+35.0 V
Output Control Voltage VCTL -0.3～+Vcc V
Power Dissipation ※2 Pd 2000 m W
Operating Temperature Range Topr -40～+125 ℃
Storage Temperature Range Tstg -55～+150 ℃ Maximum Junction Temperature Tjmax +150 ℃ Peak Supply Voltage ※3 Vcc
peak +50 V
※ 1 Not to exceed Pd. ※ 2 TO220CP-V5:Derating in done at 16m W/℃ for operating above Ta≧25℃.(without heat sink) ※ 3 Applied voltage : 200msec or less (tr≥1msec) NOTE : This product is not designed for protection against radioactive rays.
tr≧1msec
MAX200msec (Voltage Supply more than 35V)
www.rohm.com 2010.10 - Rev.A
© 2010 ROHM Co., Ltd. All rights reserved.
