ROHM BA3308F Data Sheet
Summary
The BA3308F/FV is a high-performance dual audio preamplifier featuring built-in Auto Level Control (ALC), designed for robust recording and playback applications. Manual coverage includes detailed operational guides, electrical specifications, technical characteristics, and application parameters. This component is ideal for professionals developing sophisticated stereo audio equipment, such as home stereos, cassette decks, and advanced radio systems, requiring reliable signal conditioning and precise level matching.

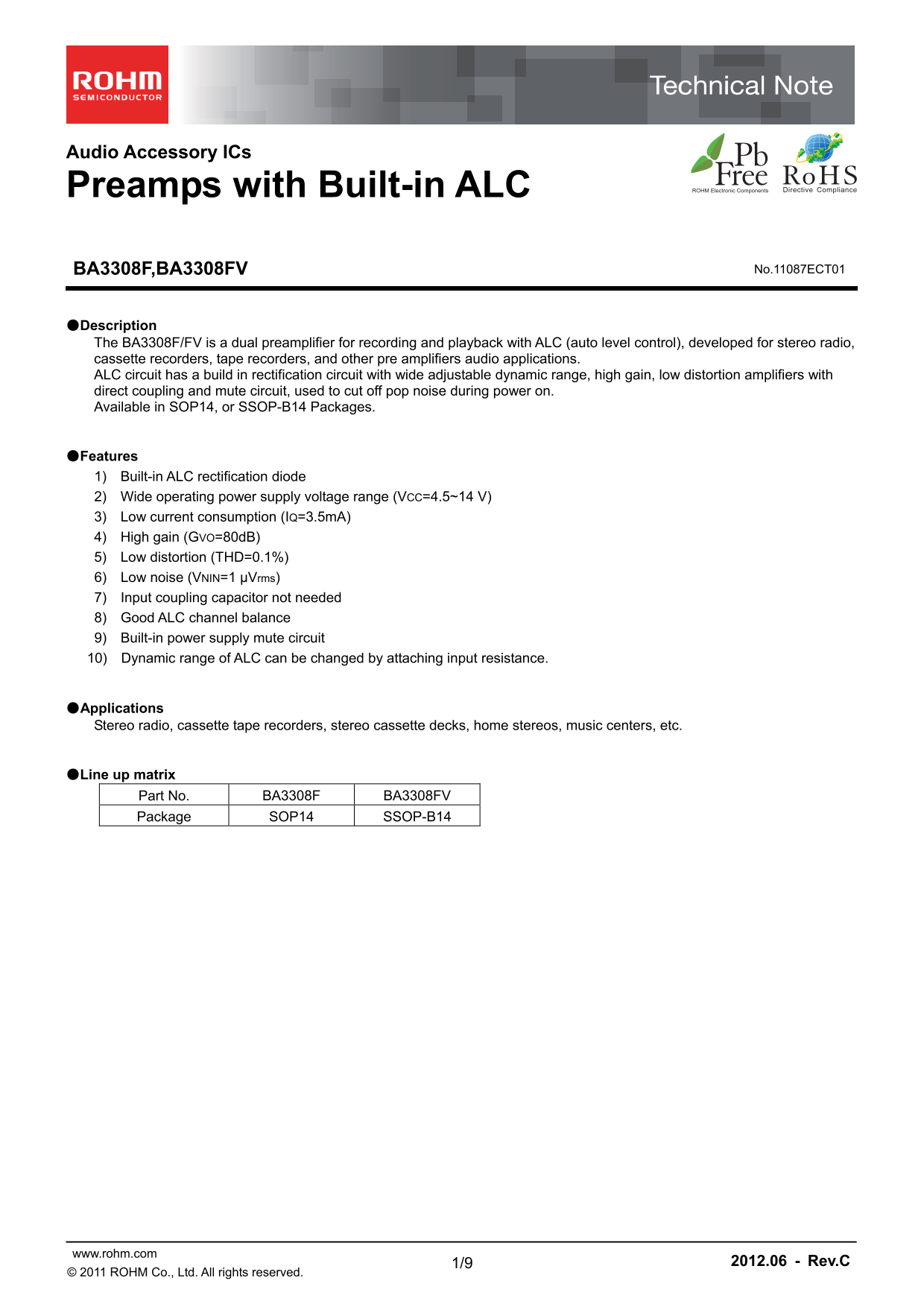

Page 1 Text Content
Audio Accessory ICs
Preamps with Built-in ALC
BA3308F,BA3308FV No.11087ECT01
●Description The BA3308F/FV is a dual preamplifier for recording and playback with ALC (auto level control), developed for stereo radio, cassette recorders, tape recorders, and other pre amplifiers audio applications. ALC circuit has a build in rectification circuit with wide adjustable dynamic range, high gain, low distortion amplifiers with direct coupling and mute circuit, used to cut off pop noise during power on. Available in SOP14, or SSOP-B14 Packages.
●Features 1) Built-in ALC rectification diode 2) Wide operating power supply voltage range (VCC=4.5~14 V) 3) Low current consumption (IQ=3.5m A) 4) High gain (GVO=80d B) 5) Low distortion (THD=0.1%) 6) Low noise (VNIN=1 μVrms) 7) Input coupling capacitor not needed 8) Good ALC channel balance 9) Built-in power supply mute circuit 10) Dynamic range of ALC can be changed by attaching input resistance.
●Applications Stereo radio, cassette tape recorders, stereo cassette decks, home stereos, music centers, etc.
●Line up matrix
Part No. BA3308F BA3308FV Package SOP14 SSOP-B14
www.rohm.com 2012.06 - Rev.C 1/9 © 2011 ROHM Co., Ltd. All rights reserved.
