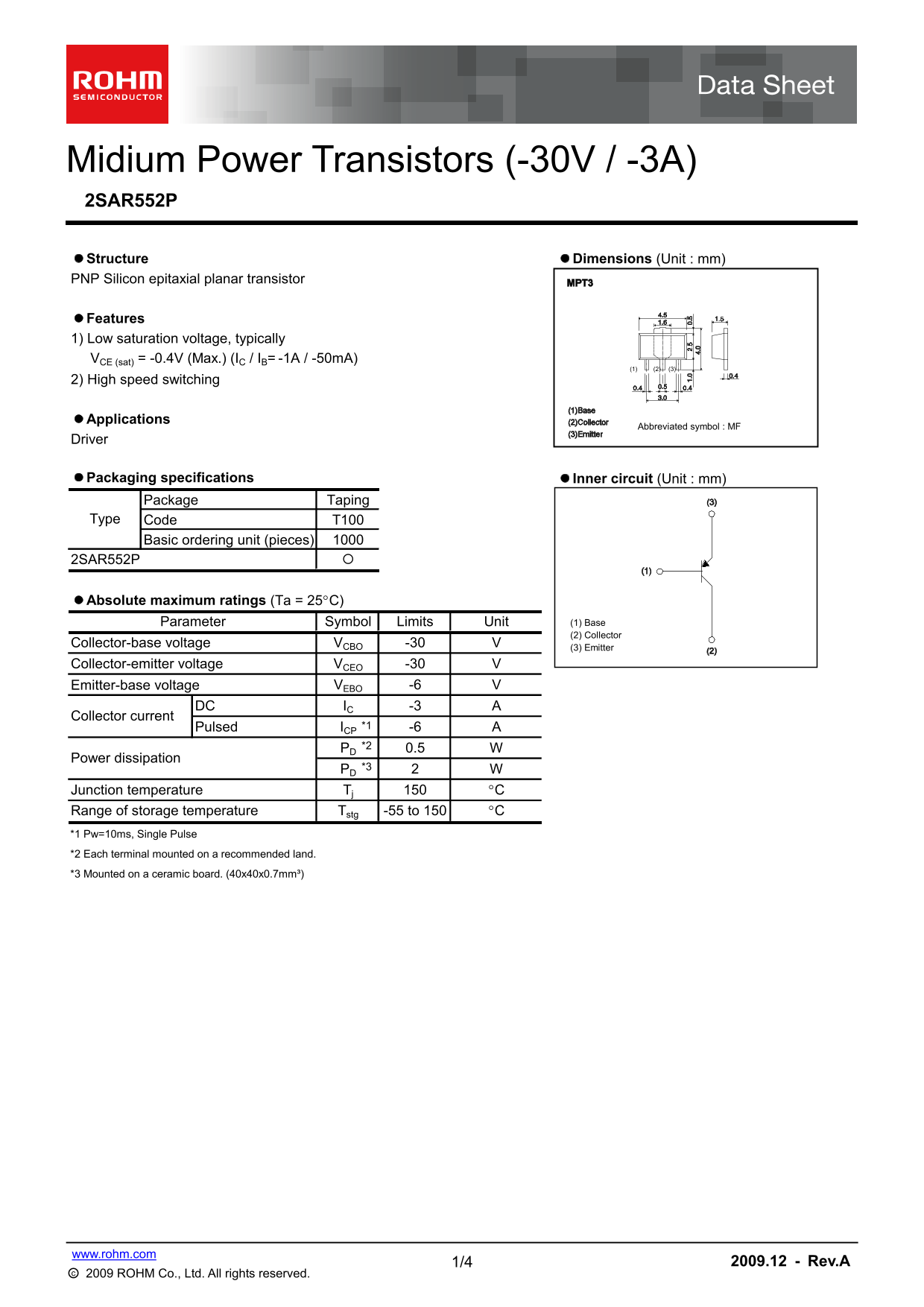

Page 1 Text Content

Midium Power Transistors (-30V / -3A) 2SAR552P

Structure Dimensions (Unit : mm) PNP Silicon epitaxial planar transistor

Features 1) Low saturation voltage, typically VCE (sat) = -0.4V (Max.) (IC / IB= -1A / -50m A)

2) High speed switching

Applications

Abbreviated symbol : MF

Driver

Packaging specifications Inner circuit (Unit : mm)

Package Taping

Type Code T100

Basic ordering unit (pieces)

2SAR552P

Absolute maximum ratings (Ta = 25C)

Parameter Symbol Limits Unit (1) Base (2) Collector

Collector-base voltage VCBO -30

(3) Emitter

Collector-emitter voltage VCEO -30

Emitter-base voltage VEBO -6

DC IC -3

Collector current

Pulsed ICP *1 -6 *2 PD 0.5

Power dissipation

*3 PD

Junction temperature Tj C Range of storage temperature Tstg -55 to 150 C *1 Pw=10ms, Single Pulse *2 Each terminal mounted on a recommended land. *3 Mounted on a ceramic board. (40x40x0.7mm³)

www.rohm.com

1/4 2009.12 - Rev.A

Page Summary Contents For ROHM 2SAR552P Data Sheet

Page 1 Midium Power Transistors (-30V / -3A) 2SAR552P Structure Dimensions (Unit : mm) PNP Silicon epitaxial planar transistor Features 1) Low saturation voltage, typically VCE (sat) = -0.4V (Max.) (IC / ...

Page 2 Data Sheet 2SAR552P Electrical characteristic (Ta = 25C) Symbol Min. Typ. Max. Unit Conditions Parameter Collector-emitter breakdown voltage BVCEO -30 IC= -1m A Collector-base breakdown voltage BVC...

Page 3 Data Sheet 2SAR552P LL CE OT UPT APA NATI C : )Fp(bo CELL OT UTAS OITA OV GATL : E tas( )[V CELL OT NE : T IC [A Electrical characteristic curves ME TI RET NI UP C T CAPA NATI C : E )Fp(bi Ta=25°C V...

Page 4 Data Sheet 2SAR552P Switching time test circuit RL=6.7Ω VCC -10V~_ Pw 50μs DUTY CYCLE1% BASE CURENT WAVEFORM tstgton tf COLLECTOR CURRENT WAVEFORM IC www.rohm.com 4/4 2009.12 - Rev.A ○c 2009 ROHM Co...

Page 5 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
