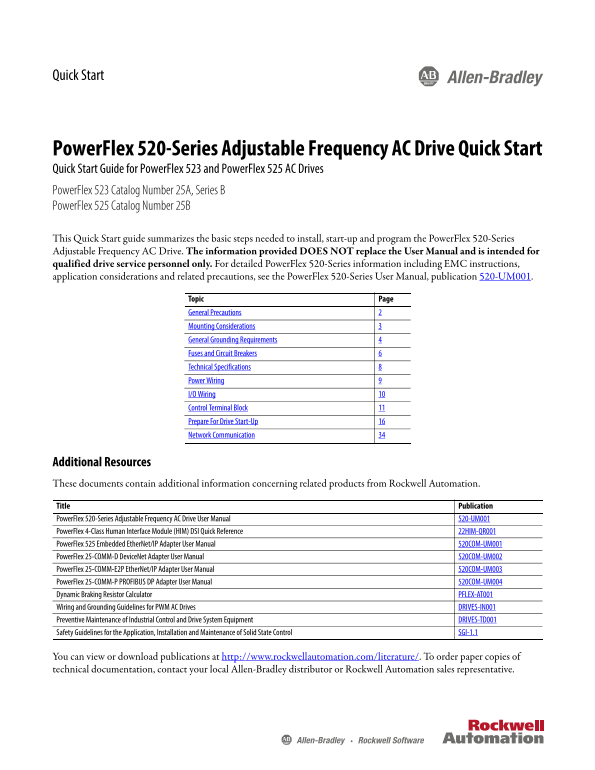

Page 1
Quick Start Power Flex 520-Series Adjustable Frequency AC Drive Quick Start Quick Start Guide for Power Flex 523 and Power Flex 525 AC Drives Power Flex 523 Catalog Number 25A, Series B Power Flex 525...
Page 2
Power Flex 520-Series Adjustable Frequency AC Drive ATTENTION: Before installing, configuring, operating or maintaining this product, read this document and the documents listed in the Additional Reso...
Page 3
Power Flex 520-Series Adjustable Frequency AC Drive Mounting Considerations Mount the drive upright on a flat, vertical and level surface. Frame Screw Size Screw Torque M5 (#10...24) 1.56...1.96 Nm (1...
Page 4
Power Flex 520-Series Adjustable Frequency AC Drive Ambient Operating Temperatures See Appendix B of the Power Flex 520-Series User Manual, publication 520-UM001 for option kits. Ambient Temperature M...
Page 5
Power Flex 520-Series Adjustable Frequency AC Drive Ungrounded Distribution Systems ATTENTION: Power Flex 520-Series drives contain protective MOVs that are referenced to ground. These devices must be...
Page 6
Power Flex 520-Series Adjustable Frequency AC Drive Fuses and Circuit Breakers Catalog No.(1) Output Ratings Input Ratings Branch Circuit Protection Normal Duty Heavy Duty Fuse 140M Motor Power Flex P...
Page 7
Power Flex 520-Series Adjustable Frequency AC Drive Catalog No.(1) Output Ratings Input Ratings Branch Circuit Protection Normal Duty Heavy Duty Fuse 140M Motor Power Flex Power Flex Voltage Max Ratin...
Page 8
Power Flex 520-Series Adjustable Frequency AC Drive Technical Specifications Power Flex 523 Specifications Input/Output Ratings Approvals LISTED 966X LISTED 966X LV Directive 2014/35/EU UL® UL508C UL®...
Page 9
Power Flex 520-Series Adjustable Frequency AC Drive Power Wiring WARNING: The distance between the drive and motor must not exceed the maximum cable length stated in the Motor Cable Length Restriction...
Page 10
Power Flex 520-Series Adjustable Frequency AC Drive Input Power Conditions Input Power Condition Corrective Action Low Line Impedance (less than 1% line reactance) Install Line Reactor(2) or Isolation...
Page 11
Power Flex 520-Series Adjustable Frequency AC Drive Control Terminal Block Power Flex 523 Control I/O Wiring Block Diagram Series A Typical Typical SRC wiring SNK wiring Stop (1) Dig In Term Blk 02/ S...
Page 12
Power Flex 520-Series Adjustable Frequency AC Drive Series B Typical Typical SRC wiring SNK wiring Stop (1) Dig In Term Blk 02/ Start/Run FWD (2) Dig In Term Blk 03/ Direction/Run REV Digital Common S...
Page 13
Power Flex 520-Series Adjustable Frequency AC Drive Power Flex 523 Control I/O Terminal Designations No. Signal Default Description Parameter R1 Relay N.O. Fault Normally open contact for output relay...
Page 14
Power Flex 520-Series Adjustable Frequency AC Drive Power Flex 525 Control I/O Wiring Block Diagram Typical Typical SRC wiring SNK wiring Stop (1) Safety 1 Dig In Term Blk 02/ Start/Run FWD (2) Safe-T...
Page 15
Power Flex 520-Series Adjustable Frequency AC Drive Power Flex 525 Control I/O Terminal Designations No. Signal Default Description Parameter R1 Relay 1 N.O. Fault Normally open contact for output rel...
Page 16
Power Flex 520-Series Adjustable Frequency AC Drive Prepare For Drive Start-Up ATTENTION: Power must be applied to the drive to perform the following start-up procedures. Some of the voltages present ...
Page 17
Power Flex 520-Series Adjustable Frequency AC Drive Start, Stop, Direction, and Speed Control Factory default parameter values allow the drive to be controlled from the keypad. No programming is requi...
Page 18
Power Flex 520-Series Adjustable Frequency AC Drive Viewing and Editing Parameters The following is an example of basic integral keypad and display functions. This example provides basic navigation in...
Page 19
Power Flex 520-Series Adjustable Frequency AC Drive Basic Display Group Parameters See the Power Flex 520-Series Adjustable Frequency AC Drive User Manual, publication 520-UM001 for detailed descripti...
Page 20
Power Flex 520-Series Adjustable Frequency AC Drive No. Parameter Min/Max Display/Options b022 [Elapsed MWh] 0.0/6553.5 MWh 0.1 MWh Accumulated output energy of the drive. b023 [Energy Saved] 0.0/6553...
Page 21
Power Flex 520-Series Adjustable Frequency AC Drive Smart Start-Up with Basic Program Group Parameters The Power Flex 520-series drive is designed so that start-up is simple and efficient. The Basic P...
Page 22
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 23
Power Flex 520-Series Adjustable Frequency AC Drive Advanced Program Group Parameters See the Power Flex 520-Series Adjustable Frequency AC Drive User Manual, publication 520-UM001 for detailed descri...
Page 24
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 25
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 26
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 27
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 28
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 29
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 30
Power Flex 520-Series Adjustable Frequency AC Drive = Stop drive before changing this parameter. PF 525 = Parameter is specific to Power Flex 525 drives only. No. Parameter Min/Max Display/Options Def...
Page 31
Power Flex 520-Series Adjustable Frequency AC Drive No. Fault Action F033 Auto Rstrt Tries Correct the cause of the fault and manually clear. F038 Phase U to Gnd Check the wiring between the drive and...
Page 32
Power Flex 520-Series Adjustable Frequency AC Drive Fr am Fr am No. Fault Action F109 Mismatch C-P Set P053 [Reset To Defalts] to 3 “Power Reset”. F110 Keypad Membrane Cycle power. Replace control mod...
Page 33
Power Flex 520-Series Adjustable Frequency AC Drive Dimensions and Weight IP 20/Open Type – Dimensions are in mm and (in.). Weights are in kg and (lb). Esc Sel Frame Size Weight EMC Line Filter – Dime...
Page 34
Power Flex 520-Series Adjustable Frequency AC Drive Network Communication Power Flex 520-Series RS784 (DSI) Protocol This section contains only basic information to setup the Power Flex 520-series RS4...
Page 35
Power Flex 520-Series Adjustable Frequency AC Drive The following Power Flex 520-series drive parameters are used to configure the drive to operate on a DSI network. Configuring Parameters for DSI Net...
Page 36
Power Flex 520-Series Adjustable Frequency AC Drive Drive and Adapter Status Indicators Item Name State Description ENET Off Adapter is not connected to the network ENET LINK Steady Adapter is connect...
Page 37
Power Flex 520-Series Adjustable Frequency AC Drive Notes: Rockwell Automation Publication 520-QS001B-EN-E - November 2017
Page 38
Important Information Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of ...
