Rockwell Automation 1762-OB32T Installation User's Manual

Summary

Optimize industrial control systems with the MicroLogix 1762-OB32T Solid State 24V DC Source Output Module. This comprehensive manual is designed for engineers and technical professionals responsible for integrating advanced automation hardware. Inside, you will find detailed instructions covering proper mounting, field wiring connections, environmental guidelines, and critical safety protocols necessary for solid state equipment. Use this guide to ensure robust and reliable performance in demanding industrial environments while preventing operational damage like ESD exposure.

📄 Preview 📖 Table of Contents Contents PAGE OF 20

Page 1 Text Content

Installation Instructions

Micro Logix 1762-OB32T Solid State 24V DC Source Output Module

Catalog Number 1762-OB32T

Table of Contents

Topic Page

Important User Information

North American Hazardous Location Approval 4

Additional Resources

Overview

Module Description

Mount the Module

Field Wiring Connections

Wiring Options for the I/O Module 13

Labeling for the 1492 Interface Module

Assemble the Wire Contacts

Specifications

Page Summary Contents For Rockwell Automation 1762-OB32T Installation User's Manual

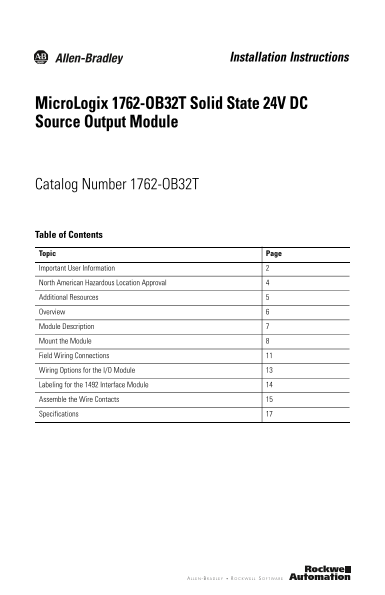

Page 1 Installation Instructions Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Catalog Number 1762-OB32T Table of Contents Topic Page Important User Information North American Hazardous Loca...
Page 2 2 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Important User Information Solid state equipment has operational characteristics differing from those of electromechanical equipment. S...
Page 3 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 3 Environment and Enclosure This equipment is intended for use in a Pollution Degree 2 industrial ATTENTION environment, in overvoltage C...
Page 4 4 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module North American Hazardous Location Approval The following modules are North American Hazardous Location approved: 1762-OB32T The followi...
Page 5 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 5 Additional Resources Resource Description Micro Logix 1100 Programmable Controllers User A more detailed description of how to install ...
Page 6 6 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Overview 1762 output module is suitable for use in an industrial environment when installed in accordance with these instructions. Spec...
Page 7 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 7 Module Description This equipment is sensitive to electrostatic discharge (ESD). Follow ESD prevention guidelines when handling this eq...
Page 8 8 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Mount the Module General Considerations Most applications require installation in an industrial enclosure to reduce the effects of elec...
Page 9 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 9 Module Spacing Maintain spacing from objects such as enclosure walls, wireways and adjacent equipment. Allow 50.8 mm (2 in.) of space o...
Page 10 10 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Panel Mounting Use the dimensional template shown below to mount the module. The preferred mounting method is to use two M4 (#8) panhe...
Page 11 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 11 Field Wiring Connections Grounding the Module In solid-state control systems, grounding and wire routing helps limit the effects of no...
Page 12 12 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Output Wiring Basic wiring of the 1762-OB32T is shown below. Basic Wiring to the 1762-OB32T Module +VDC 1 +VDC 2 +DC+DC +VDC 1 +VDC 2 ...
Page 13 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 13 Wiring Options for the I/O Module Included with your 32-point output module is a keyed 40-pin female connector and crimp type pins. Th...
Page 14 14 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Labeling for the 1492 Interface Module Several different stick-on label sets are provided on a single card with 1492 Interface Modules...
Page 15 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 15 Assemble the Wire Contacts 1. Strip the wire insulation to expose 4 mm (5/32 in.) of wire. Crimp pins can accept 22...26 AWG wire. ATT...
Page 16 16 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module I/O Memory Mapping For each output module, slot x, words 0...1 in the output data file contain the control program’s directed state of...
Page 17 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 17 Specifications General Specifications Attribute Value Number of outputs Dimensions 90 x 40.4 x 87 mm Hx Wx D (3.54 x 1.59 x 3.43 in.) ...
Page 18 18 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module Output Specifications Attribute Value Continuous current 0.5 A @ 60 °C (140 °F) per point, max Continuous current 2.0 A @ 60 °C (140 °...
Page 19 Micro Logix 1762-OB32T Solid State 24V DC Source Output Module 19 Environmental Specifications Attribute Value EFT/B immunity IEC 61000-4-4: ±2 k V at 5 k Hz on signal ports Surge transient immunity I...
Page 20 Rockwell Automation Support Rockwell Automation provides technical information on the Web to assist you in using its products. At http://www.rockwellautomation.com/support/, you can find technical man...
