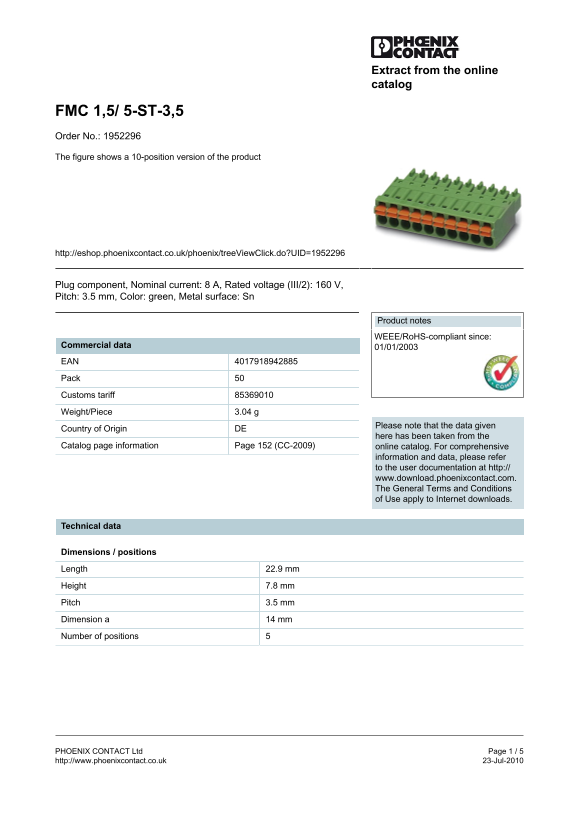

FMC 1,5/ 5-ST-3,5 Order No.: 1952296 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.co.uk/phoenix/tree View Click.do?UID=1952296
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.5 mm, Color: green, Metal surface: Sn
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack Customs tariff Weight/Piece 3.04 g
Please note that the data given
Country of Origin DE
here has been taken from the
Catalog page information Page 152 (CC-2009) online catalog. For comprehensive
information and data, please refer to the user documentation at http:// www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 7.8 mm Pitch 3.5 mm Dimension a 14 mm Number of positions
