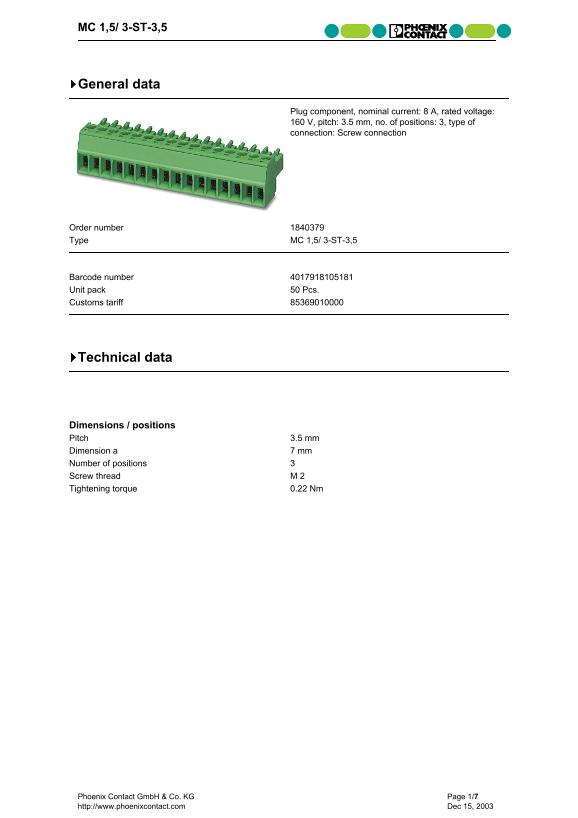

MC 1,5/ 3-ST-3,5

General data

Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 3, type of connection: Screw connection

Order number Type MC 1,5/ 3-ST-3,5

Barcode number Unit pack 50 Pcs. Customs tariff

Technical data

Dimensions / positions Pitch 3.5 mm Dimension a 7 mm Number of positions 3 Screw thread M 2 Tightening torque 0.22 Nm

Phoenix Contact Gmb H & Co. KG Page 1/7 http://www.phoenixcontact.com Dec 15, 2003

Page Summary Contents For Phoenix Contact MC 1,5 3-ST-3,5 General data Plug component, Nominal Current 8 A, Rated Voltage 160 V, Pitch 3.5 mm, Number of Positions 3, Connection Type Screw Connection

Page 1 MC 1,5/ 3-ST-3,5 General data Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 3, type of connection: Screw connection Order number Type MC 1,5/ 3-ST-3,5 Ba...

Page 2 MC 1,5/ 3-ST-3,5 Technical data Insulating material group I Rated surge voltage (III/3) 2.5 k V Rated surge voltage (III/2) 2.5 k V Rated surge voltage (II/2) 2.5 k V Rated voltage (III/2) 160 V Rated...

Page 3 MC 1,5/ 3-ST-3,5 Certificates UL Nominal voltage UN 300 V Nominal current IN 8 A AWG/kcmil 30-14 CSA Comments all numbers of positions are accepted Nominal voltage UN 300 V Nominal current IN 8 A AWG/...

Page 4 MC 1,5/ 3-ST-3,5 Drawings Dimensioned drawing Approval logo Phoenix Contact Gmb H & Co. KG Page 4/7 http://www.phoenixcontact.com Dec 15, 2003

Page 5 MC 1,5/ 3-ST-3,5 Accessories Item Designation Description Marking SK 3,5/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section marker strip, 14 identical decades marked 1-10, 1...

Page 6 MC 1,5/ 3-ST-3,5 Additional products Item Designation Description General EMC 1,5/ 3-G-3,5 Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 3, mounting: press in EM...

Page 7 MC 1,5/ 3-ST-3,5 Address Phoenix Contact Gmb H & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 3 00 Fax +49 5235 3 1200 http://www.phoenixcontact.com © Phoenix Contact Technical mo...
