Philips TDA10021HT DVB-C Channel Receiver User's Guide and Data Sheet
Summary
Integrated circuit datasheet for the Philips TDA10021HT single-chip DVB-C channel receiver. Supports 4/16/32/64/128/256 QAM demodulation per DVB-C ETS 300-429 and ITU-T J83 annex A/C. Features on-chip 10-bit ADC, PLL crystal frequency multiplier (4 MHz), digital downconversion, programmable Nyquist half filter with 0.13/0.15 roll-off, dual PWM AGC outputs, clock timing recovery with 2nd-order loop filter, full digital carrier recovery (18% symbol rate acquisition), and integrated adaptive equalizer with transversal and DFE modes.
Page 1 Text Content
查询TDA10021供应商

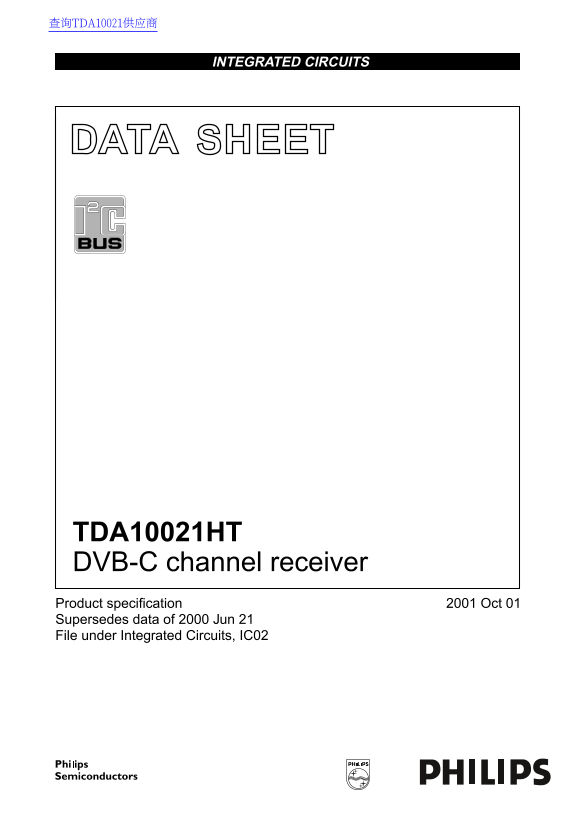

INTEGRATED CIRCUITS
DATA SHEET
TDA10021HT DVB-C channel receiver Product specification Oct Supersedes data of 2000 Jun File under Integrated Circuits, IC02
Page Summary Contents For Philips TDA10021HT DVB-C Channel Receiver User's Guide and Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 16 |
| File Size | 90.55 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What QAM levels can the TDA10021HT demodulate?
It supports 4, 16, 32, 64, 128, and 256 Quadrature Amplitude Modulation (QAM).
How is this DVB-C receiver controlled and integrated?
The device uses an I²C-bus interface for easy control and requires a fundamental XTAL oscillator connected between XIN and XOUT pins.
What error correction features are built into the chip?
It includes on-chip Forward Error Correction (FEC) decoder, consisting of a convolutional de-interleaver and a Reed-Solomon decoder.
Which set-top box applications is this module suitable for?
The TDA10021HT operates over cable set-top boxes, cable modems, and MMDS set-top boxes.
