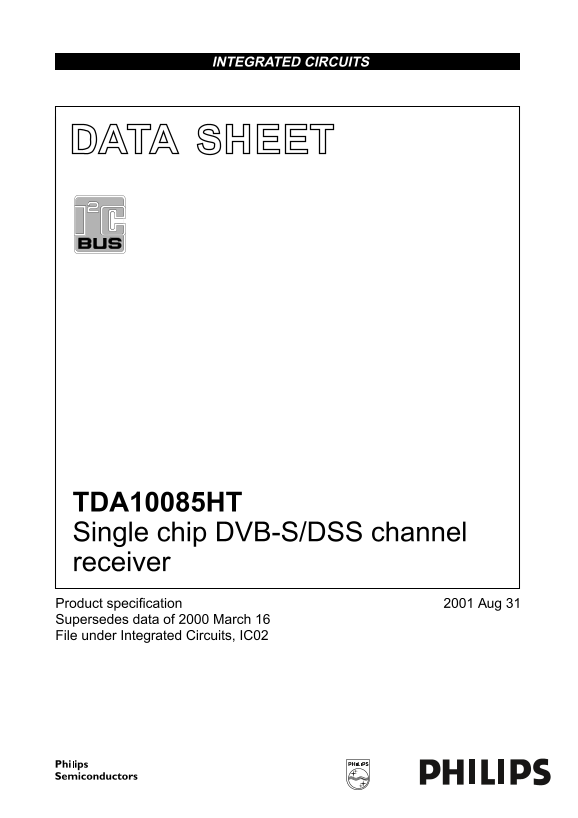

INTEGRATED CIRCUITS
DATA SHEET
TDA10085HT Single chip DVB-S/DSS channel receiver Product specification Aug Supersedes data of March 16 File under Integrated Circuits, IC02
Page Summary Contents For PHILIPS TDA10085HT HT Single Chip DVB-S DSS Channel Receiver Data Manual and User Guide
Page 1
INTEGRATED CIRCUITS DATA SHEET TDA10085HT Single chip DVB-S/DSS channel receiver Product specification Aug Supersedes data of March 16 File under Integrated Circuits, IC02
Page 2
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT CONTENTS FEATURES APPLICATIONS GENERAL DESCRIPTION ORDERING INFORMATION BLOCK DIAGRAM PINNING LIMITING VA...
Page 3
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT FEATURES DSS and DVB-S compliant single chip demodulator and forward error correction Dual 6-bit Analog-t...
Page 4
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT 6- IT ORDERING INFORMATION PACKAGE LL AT IO VERSION NUMBER NAME DESCRIPTION TDA10085HT TQFP64 plastic thi...
Page 5
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT PINNING SYMBOL PIN TYPE DESCRIPTION XIN crystal oscillator input and output pins; in a typical applicatio...
Page 6
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT SYMBOL PIN TYPE DESCRIPTION VDDI supply digital core supply voltage (typically 1.8 V) VDDE supply digital...
Page 7
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT SYMBOL PIN TYPE DESCRIPTION TDO I/O boundary scan mode: test data serial output; output provided on the f...
Page 8
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT handbook, full pagewidth IIC IV XIN UNCOR XOUT PSYNC VDDI CLB# PLLVCC VSSE PLLGND VDDE DGND ADVS DVCC ADV...
Page 9
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134); note SYMBOL PARAMETER ...
Page 10
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT VPLLVCC analog PLL supply voltage 3.0 3.3 3.6 ADC VVDD3 V...
Page 11
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT APPLICATION INFORMATION handbook, full pagewidth VAGC XIN XOUT MIXER DO[7-0] LO VREFP from OCLK PLL TDA10...
Page 12
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT PACKAGE OUTLINE TQFP64: plastic thin quad flat package; 64 leads; body 10 x 10 x 1.0 mm SOT357-1 pin 1 in...
Page 13
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT SOLDERING If wave soldering is used the following conditions must be observed for optimal results: 12.1 I...
Page 14
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT 12.5 Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACK...
Page 15
Philips Semiconductors Product specification Single chip DVB-S/DSS channel receiver TDA10085HT DEFINITIONS DISCLAIMERS Short-form specification The data in a short-form Life support applications T...
Page 16
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
