Page 1

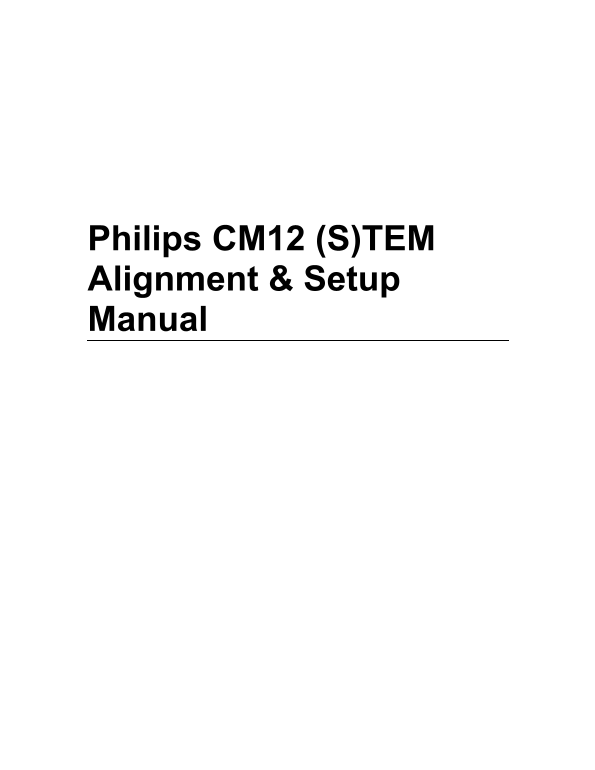

Philips CM12 (S)TEM Alignment & Setup Manual
Page 2
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 2
Page 3
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 3 Table of Contents Parts of the CM12 4 The Microscope The Control Panels The Specimen Holder The Side Entry Specimen Chamber Start-up Proced...
Page 4
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 4 Parts of the CM12 The Microscope Figure 1 The Philips CM12 (S)TEM Microscope 1 Electron Gun A filament tip (La B6 in this case) that emits ...
Page 5
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 5 The Control Panels Left Control Panel Figure 2 The Control Panel located to the left of the microscope column. Right Control Panel Figure 3...
Page 6
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 6 The Specimen Holder Figure 4 The CM12 Specimen Holder 22 Black Cap 24 Specimen Cavity & Clamp 23 O-ring The Side Entry Specimen Chamber...
Page 7
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 7 Powering Up the Microscope 1. Start by logging in to the computer connected to the TEM. Login is a necessary step to prevent unauthorized u...
Page 8
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 8 3. Start saturating the filament by slowly turning the Filament Knob [18] clockwise. Each click raises the level by one with a wait time of...
Page 9
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 9 Column Alignment Centering the Beam 1. To center the beam more easily, adjust the intensity knob [9] to find the cross over i.e. the bright...
Page 10
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 10 Condenser Aperture Adjustment 1. The condenser aperture controls the beam that passes through the condenser lens. If the aperture is not a...
Page 11
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 11 Sample Loading & Unloading Mounting the Sample 1. Samples for the CM12 are deposited as thin films on a copper mesh grid such as in Fi...
Page 12
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 12 Sample Image Adjustment-Optimizing Eucentric (Z) Height 1. Adjust the beam intensity on the sample or increase the magnification by turnin...
Page 13
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 13 5. Once rotation center has been aligned, press ALGN to exit the current mode. Sample Image Adjustment-Centering the Pivot Point 1. Adjust...
Page 14
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 14 Obtaining the Image Fine Tuning the Microscope 1. Use the mechanical stage controls to select certain areas of the sample to be captured. ...
Page 15
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 15 Power Down Sequence 1. Return the viewing screen back to its original position and spread the beam. 2. If high magnification was used, low...
Page 16
Erwin Sabio Philips CM12 Alignment & Setup Manual Page 16 Photo Credits Figure # Source 1 Mehraeen S. (2007, January 19). 230L, first report. Email attachment. 2 Browning, Nigel (2006). 1Experimen...
