This high-performance TOPFET is a logic-level, overload-protected power MOSFET designed for reliable switching in demanding industrial and automotive applications. The comprehensive manual details the device's robust functionality, covering advanced features such as separate analog/digital control inputs, latched overload protection, and active overvoltage clamping. It is ideal for engineers seeking a stable and protected solution to drive various loads accurately, including motors, solenoids, lamps, and heaters.

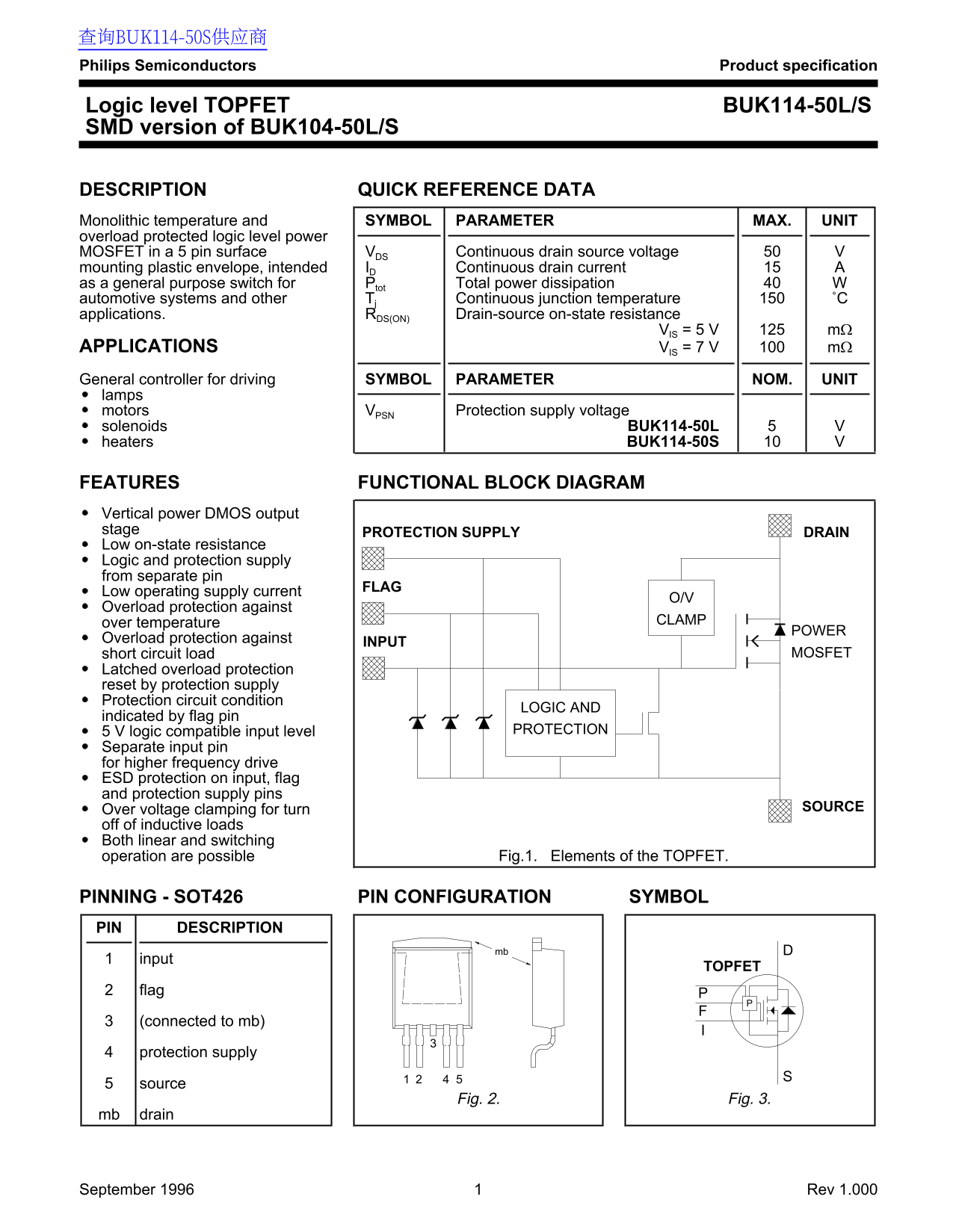

Page 1 Text Content
查询BUK114-50S供应商 Philips Semiconductors Product specification
Logic level TOPFET BUK114-50L/S SMD version of BUK104-50L/S
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MAX. UNIT overload protected logic level power
MOSFET in a 5 pin surface VDS Continuous drain source voltage
mounting plastic envelope, intended ID Continuous drain current as a general purpose switch for Ptot Total power dissipation automotive systems and other Tj Continuous junction temperature ˚C applications. RDS(ON) Drain-source on-state resistance
VIS = 5 V mΩ
APPLICATIONS VIS = 7 V mΩ General controller for driving SYMBOL PARAMETER NOM. UNIT lamps
motors VPSN Protection supply voltage
solenoids BUK114-50L heaters BUK114-50S
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power DMOS output stage PROTECTION SUPPLY DRAIN Low on-state resistance Logic and protection supply from separate pin
Low operating supply current
Overload protection against
over temperature CLAMP
POWER
Overload protection against
INPUT
short circuit load MOSFET
Latched overload protection reset by protection supply Protection circuit condition
LOGIC AND
indicated by flag pin
5 V logic compatible input level PROTECTION
Separate input pin for higher frequency drive ESD protection on input, flag and protection supply pins
Over voltage clamping for turn SOURCE
off of inductive loads Both linear and switching operation are possible Fig.1. Elements of the TOPFET.
PINNING - SOT426 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
input
TOPFET
flag (connected to mb) protection supply
source
Fig. 2. Fig. 3.
mb drain
September 1996 Rev 1.000
Page Summary Contents For PHILIPS BUK114-50L S Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 13 |
| File Size | 147.37 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can this TOPFET be used in life support systems?
No, these products are not designed for use in life support appliances, devices or systems.
What is the continuous drain-source voltage rating (DSS)?
The maximum continuous off-state drain source voltage (VDS) is 50 V.
How does the device provide protection against overvoltage?
At a drain source voltage above 50 V, the power MOSFET actively turns on to clamp overvoltage transients.
What are the required components for overload protection?
Two types of overload—quick discharge and over temperature—require specific circuit conditions or attached resistors (e.g., R ≥ 2 kΩ).
Does the device have ESD protection or is it intended for low voltage operation?
It includes ESD protection on input, flag, and protection supply pins.
