PHILIPS PBSS5320D Low Voltage Transistor Data Manual
Summary
This datasheet provides complete specifications for the Philips PBSS5320D 20V low VCEsat PNP transistor in a SOT457 (SC-74) surface-mount plastic package, featuring low collector-emitter saturation voltage and high current capability. It details electrical characteristics, thermal ratings, and application guidance for supply line switching, battery management, DC-DC converters, strobe flash units, and motor/lamp driver circuits.
Page 1 Text Content
查询PBSS5320D供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
MBD128

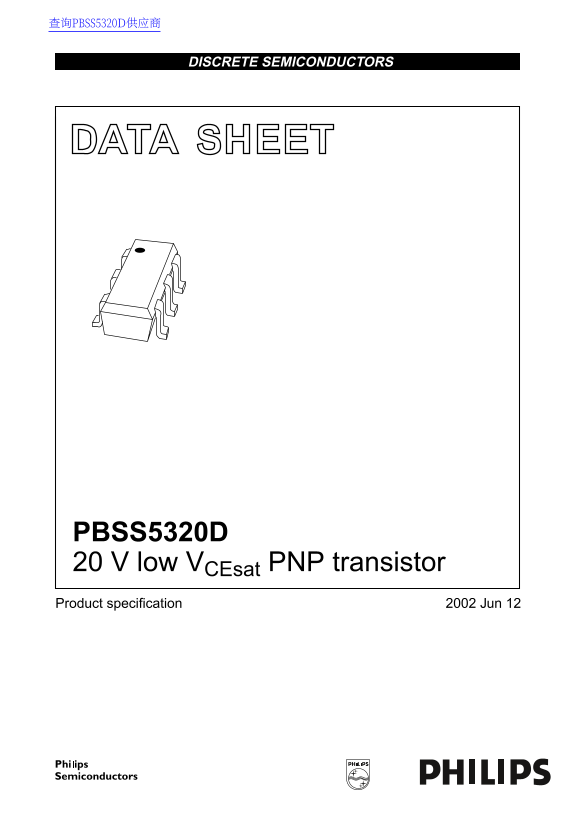

PBSS5320D 20 V low VCEsat PNP transistor Product specification Jun
Page Summary Contents For PHILIPS PBSS5320D Low Voltage Transistor Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 45.02 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the power dissipation limits depending on PCB mounting?
If using a 1 cm² collector pad, the limit is $600 ext{ mW}$; with a 6 cm² collector pad, the limit is $750 ext{ mW}$.
What is the maximum continuous collector current ($I_C$)?
The maximum DC collector current is $-3 ext{ A}$, and the peak column collector current is $-5 ext{ A}$
What are some recommended applications for this PNP transistor?
It can be used in supply line switching circuits, battery management applications, and DC/DC converter applications.
