Panasonic WX-CC2010 User Guide
Summary
This is the operating instructions manual for the Panasonic WX-CC2010 Series Wireless Communication System Center Module, a transceiver monitor for vehicle power present applications. The manual covers FCC compliance information, interference statements, and installation guidelines for Class B digital devices. It includes warnings about RF radiation exposure limits, antenna separation requirements, and proper installation procedures to ensure compliance with FCC emission limits. Target users are professional installers and technicians setting up wireless communication systems in commercial vehicle or industrial monitoring applications.

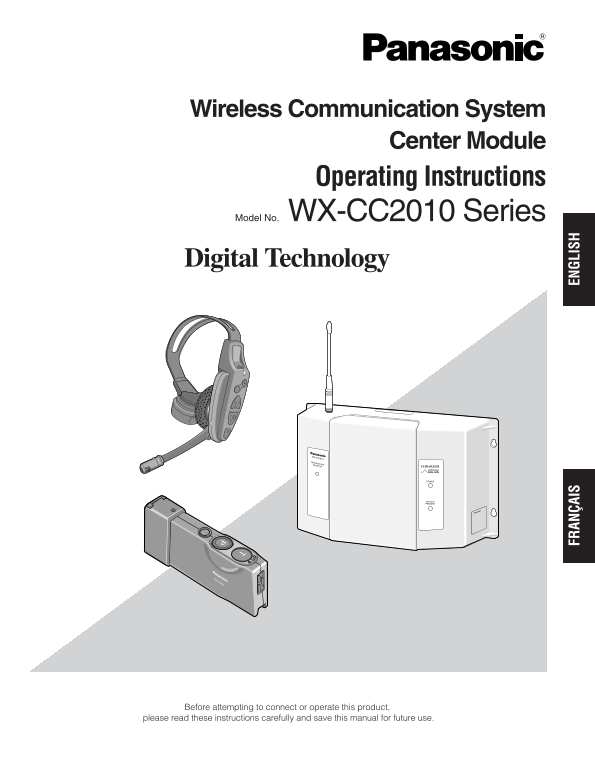

Page 1 Text Content
Wireless Communication System
Center Module Operating Instructions
Model No. WX-CC2010 Series
Digital Technology
WX-CC2010
TRANSCEIVERMONITOR
POWER
VEHICLE PRESENT
WX-CT2020 FR AN ÇA IS EN GL IS
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Page Summary Contents For Panasonic WX-CC2010 User Guide
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 15 |
| File Size | 1.15 MB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum antenna gain allowed for this device?
The device is designed for an antenna with a maximum gain of -3 dB; higher gain antennas are prohibited.
How should I reduce interference if this device causes it?
Try reorienting the antenna, increasing separation from the receiver, or plugging into a different circuit.
What safety precautions are there for installing this equipment?
Install and operate with at least 20 cm between the radiator and a person's body, excluding hands and feet.
What type of battery is used, and how should it be replaced?
Use a rechargeable Ni-MH or lithium-ion battery; replace only with the same or equivalent type to avoid explosion risk.
