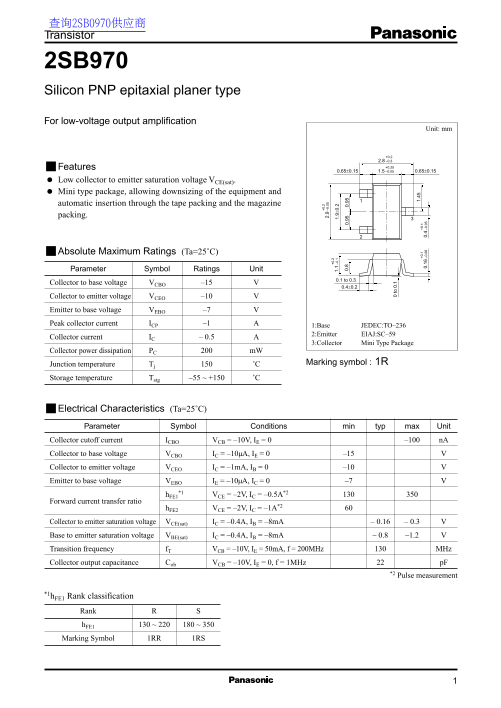

2SB970 Silicon PNP epitaxial planer type For low-voltage output amplification
Unit: mm
+0.2 2.8 –0.3 Features +0.25 1.5 –0.050.65±0.15 0.65±0.15
Low collector to emitter saturation voltage VCE(sat). Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.
Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit
0.1 to 0.3
Collector to base voltage VCBO –15
Collector to emitter voltage VCEO –10 Emitter to base voltage VEBO –7
Peak collector current ICP –1 0.
1:Base JEDEC:TO–236 2. –0 .0
2:Emitter EIAJ:SC–59 1. –0 .1
Collector current IC – 0.5 9± 0.
3:Collector Mini Type Package
Collector power dissipation PC m W
Junction temperature Tj ˚C Marking symbol : 1R
Storage temperature Tstg –55 ~ +150 ˚C
to .1
Electrical Characteristics (Ta=25˚C)
Parameter Symbol Conditions min typ max Unit 0. –0 .0 0. –0 .0
Collector cutoff current ICBO VCB = –10V, IE = 0 –100 n A Collector to base voltage VCBO IC = –10µA, IE = 0 –15 Collector to emitter voltage VCEO IC = –1m A, IB = 0 –10 Emitter to base voltage VEBO IE = –10µA, IC = 0 –7
*1 h FE1 VCE = –2V, IC = –0.5A*2
Forward current transfer ratio
h FE2 VCE = –2V, IC = –1A*2
Collector to emitter saturation voltage VCE(sat) IC = –0.4A, IB = –8m A – 0.16 – 0.3 Base to emitter saturation voltage VBE(sat) IC = –0.4A, IB = –8m A – 0.8 –1.2 Transition frequency f T VCB = –10V, IE = 50m A, f = 200MHz MHz Collector output capacitance Cob VCB = –10V, IE = 0, f = 1MHz p F
*2 Pulse measurement
*1h FE1 Rank classification
Rank h FE1 130 ~ 220 180 ~ 350 Marking Symbol 1RR 1RS
