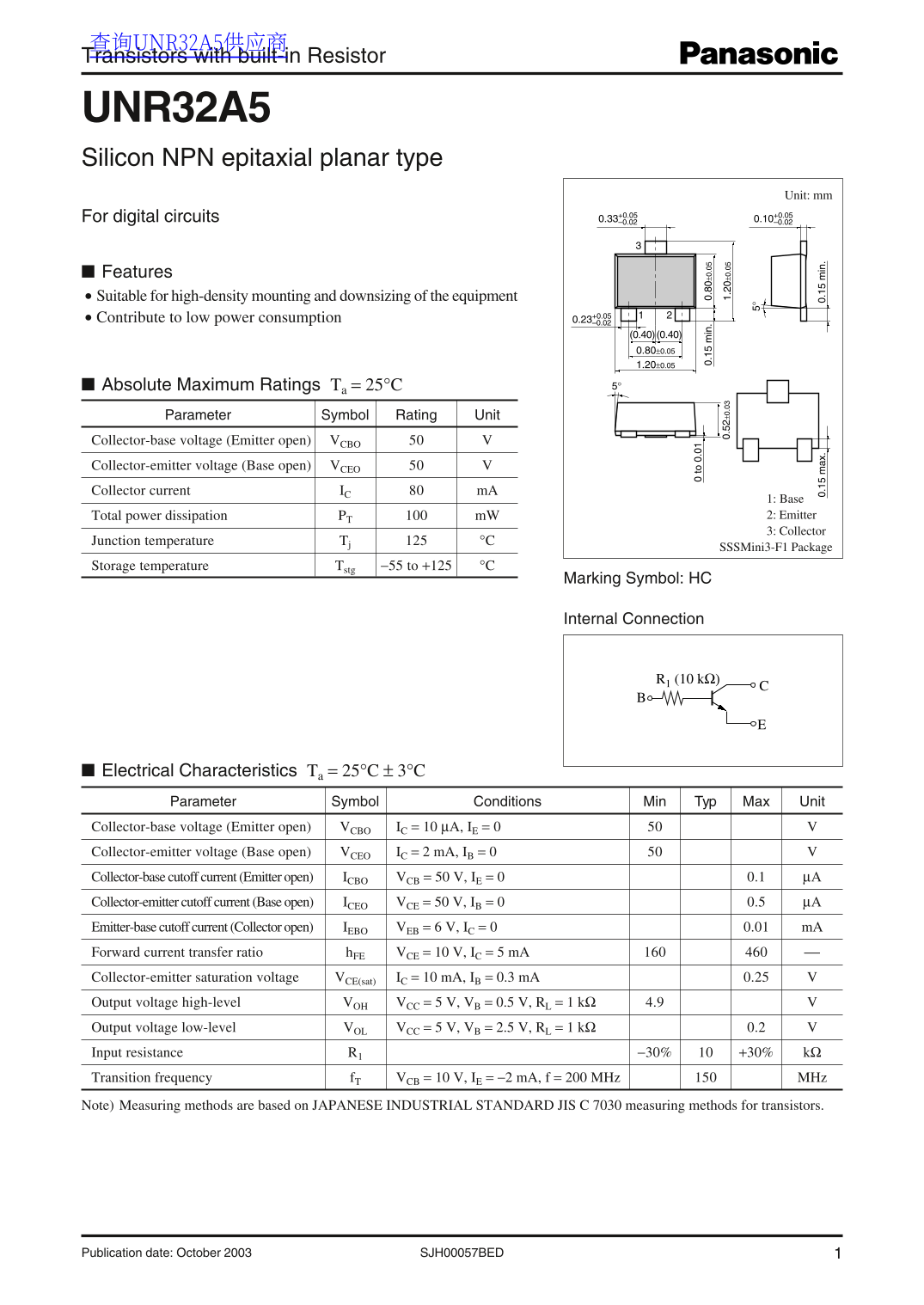

查询UNR32A5供应商 Transistors with built-in Resistor
UNR32A5 Silicon NPN epitaxial planar type
Unit: mm
For digital circuits +0.05 0.33 –0.02 0.10+0.05 –0.02
Features Suitable for high-density mounting and downsizing of the equipment Contribute to low power consumption 0.23+0.05 –0.02
Absolute Maximum Ratings Ta = 25°C 5°
Parameter Symbol Rating Unit
Collector-base voltage (Emitter open) VCBO Collector-emitter voltage (Base open) VCEO Collector current IC m A
1: Base Total power dissipation PT m W 2: Emitter 3: Collector
Junction temperature Tj °C
SSSMini3-F1 Package
Storage temperature Tstg −55 to +125 °C
Marking Symbol: HC
Internal Connection
to .0
0. in 0. ±0 .0
Electrical Characteristics Ta = 25°C ± 3°C Parameter Symbol Conditions Min Typ Max Unit
0. ax 0. in
Collector-base voltage (Emitter open) VCBO IC = 10 µA, IE = 0 Collector-emitter voltage (Base open) VCEO IC = 2 m A, IB = 0 Collector-base cutoff current (Emitter open) ICBO VCB = 50 V, IE = 0 0.1 µA Collector-emitter cutoff current (Base open) ICEO VCE = 50 V, IB = 0 0.5 µA Emitter-base cutoff current (Collector open) IEBO VEB = 6 V, IC = 0 0.01 m A Forward current transfer ratio h FE VCE = 10 V, IC = 5 m A Collector-emitter saturation voltage VCE(sat) IC = 10 m A, IB = 0.3 m A 0.25 Output voltage high-level VOH VCC = 5 V, VB = 0.5 V, RL = 1 kΩ 4.9 Output voltage low-level VOL VCC = 5 V, VB = 2.5 V, RL = 1 kΩ 0.2 Input resistance R1 −30% +30% kΩ Transition frequency f T VCB = 10 V, IE = −2 m A, f = 200 MHz MHz Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
