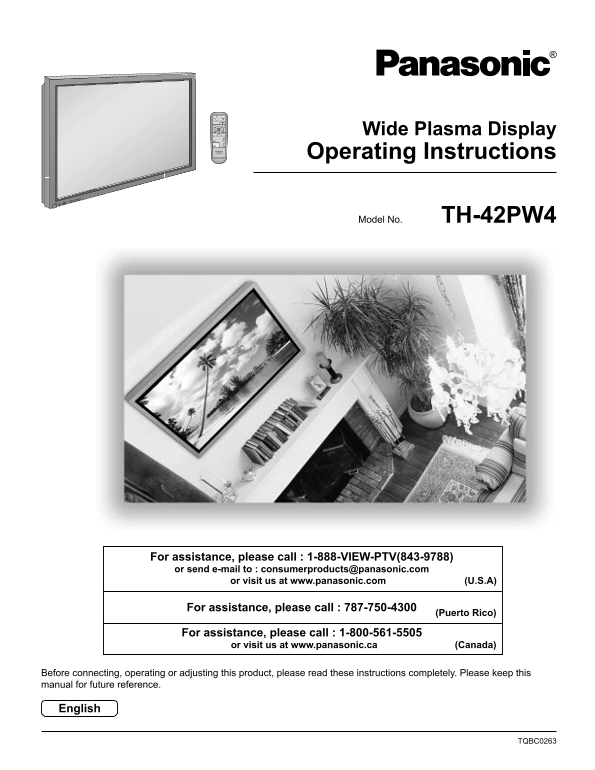

Wide Plasma Display
PLASMA DISPLAY Operating Instructions
INPUT — VOL +
POWER / R - STANDBY G POWER ON
TH-42PW4Model No.
For assistance, please call : 1-888-VIEW-PTV(843-9788) or send e-mail to : [email protected]
or visit us at www.panasonic.com (U.S.A)
For assistance, please call : 787-750-4300
(Puerto Rico)
For assistance, please call : 1-800-561-5505 or visit us at www.panasonic.ca (Canada)
Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.
English
TQBC0263
Page Summary Contents For Panasonic TH-42PW4 Television User Manual
Page 1
Wide Plasma Display PLASMA DISPLAY Operating Instructions INPUT — VOL + POWER / R - STANDBY G POWER ON TH-42PW4Model No. For assistance, please call : 1-888-VIEW-PTV(843-9788) or send e-mail to : cons...
Page 2
WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. ...
Page 3
Important Safety Instructions 1) Read these instructions. All the safety and operating instructions should be read before the appliance is operated. 2) Keep these instructions. The safety and operatin...
Page 4
Dear Panasonic Customer Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display. To obtain maximum benefit from your set, please r...
Page 5
Table of Contents Important Safety Instructions ASPECT Controls FCC STATEMENT ADJUSTING PICTURE POS./SIZE Safety Precautions SOUND ADJUSTMENT................................................. Accessori...
Page 6
FCC STATEMENT FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide ...
Page 7
Safety Precautions WARNING Set up Do not place the Plasma Display on sloped or unstable surfaces. • The Plasma Display may fall off or tip over. Do not place any objects on top of the Plasma Display. ...
Page 8
Safety Precautions CAUTION This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the ...
Page 9
Accessories Accessories Supplied Check that you have the Accessories and items shown Operating Instruction Remote Control Batteries for the Remote book Transmitter Control Transmitter EUR646525 (AA(R6...
Page 10
Remote Control Batteries Requires two AA batteries. 1. Turn the transmitter face down. 2. Install the batteries as shown in 3. Replace the cove and slide in Press and slide off the battery the battery...
Page 11
Basic Controls INPUT – VOL + R - STANDBY G POWER ON TY-42PW4 Main Power On/Off Switch Volume Adjustment Input button Push the Volume Up “+” or Power Indicator (VIDEO (S VIDEO)/COMPONENT, Down “–” butt...
Page 12
Connections SPEAKER SPEAKER Terminals (R) Terminals (L) – Cable fixing bands Secure any excess cables with bands, as required. Pass the attached cable fixing To secure cables connected to band through...
Page 13
Connections Speakers connection When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation. Speak...
Page 14
Connections AV Input connection VIDEO signal connection (VCR) Audio Video OUT OUTR Video input to AUDIO-VIDEO RCA socket 3×RCA audio video cables Audio input to L/R sockets AUDIO S VIDEOVIDEO AV IN No...
Page 15
Connections RGB signal (R, G, B, HD, VD) connection RGB input to BNC-RCA R, G, B, HD, VD sockets adaptor plug Example of input signal source HDTV-compatible VCR 5×BNC RGB cables RGB camera AUDIO VD HD...
Page 16
Connections PC Input connection COMPUTER AUDIO PC IN POWER / R - STANDBY G POWER ON INPUT – VOL + Conversion adapter (if necessary) D-sub 15p RGB PC cable Ferrite core Less than (supplied) 7" 7/8...
Page 17
Connections SERIAL Terminals connection The SERIAL terminal is used when the Plasma Display is controlled by a computer. COMPUTER SERIAL Ferrite core RS-232C (supplied) straight cable Less than Pin la...
Page 18
Power ON/OFF and Input Signal Selection AC cord connection Connecting the AC cord plug to the Plasma Display. Power ON/OFF Connecting the plug to the Wall Outlet Push the POWER switch on the Plasma Di...
Page 19
Power ON/OFF and Input Signal Selection Select the Input Signal INPUT Press the INPUT button to select the input video signal desired from equipment such as a VCR which has been connected to the Plasm...
Page 20
On-Screen Menu Display from Remote Control To PICTURE adjust menu (see page 28) PICTURE NORMALIZE NORMAL PICTURE MENU STANDARD PICTURE BRIGHTNESS Press to select each COLOR menu. INPUT 0SHARPNESS COLO...
Page 21
On-Screen Menu Display from Remote Control To SIGNAL screen for VIDEO (see page 32) SIGNAL [ VIDEO ] 3D Y/C FILTER (NTSC) ON COLOR SYSTEM AUTO Press to access “SIGNAL” setup Panasonic AUTO (4:3) NORMA...
Page 22
ASPECT Controls The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture. ASPECT ASPECT button The aspect mode changes each time ...
Page 23
ASPECT Controls Picture Explanation NORMAL will display a 4:3 picture at its standard 4:3 NORMAL size. NORMAL ZOOM mode magnifies the central section of the picture. FULL will display the picture at i...
Page 24
Adjusting PICTURE POS./SIZE Adjusting screen ASPECT1 Press to select the screen mode to adjust. INPUT SURROUND PICTURE POS. /SIZE Press to display the PICTURE POS./ VOL SIZE menu. Press to select H-PO...
Page 25
Adjusting PICTURE POS./SIZE When the Position Left “ ” button is pressed When the Position Right “ ” button is pressed H-POS When the Position Left “ ” button is pressed When the Position Right “ ” bu...
Page 26
SOUND Adjustment SOUND Press to display the Sound menu. INPUT Select to adjust each item. SURROUND Press to select the desired adjustment menu. Select the desired level by listening to the sound. PICT...
Page 27
SURROUND Controls SURROUND SURROUND Button The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema. The surround setting ...
Page 28
PICTURE Adjustments PICTURE PICTURE Press the PICTURE button on the NORMALIZE NORMAL Remote Control to display the PICTURE MENU STANDARD PICTURE menu. PICTURE BRIGHTNESS COLOR TINT Select to adjust ea...
Page 29
PICTURE Adjustments Notes: Item Effect Adjustments (1) “COLOR” , “TINT” and “SHARPNESS” Selects the proper brightness and PICTURE settings cannot be adjusted for “RGB” density for the room. Less More ...
Page 30
SCREENSAVER (For preventing after-images) Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a SCREENSAVER should be used. SET UP Press to d...
Page 31
SCREENSAVER SIDE BAR ADJUST Do not display a picture in 4:3 mode for an extended period, as side barsl this can cause an after-image to remain on the side bars either side of the display field. To pre...
Page 32
SET UP for Input Signals COMPONENT/RGB IN SELECT Select to match the signals from the source connected to the COMPONENT/RGB input terminals. Y, PB, PR signals “COMPONENT” R, G, B, HD, VD signals “RGB”...
Page 33
SET UP for Input Signals COLOR SYSTEM / Panasonic AUTO Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.(“SIGNAL [VIDEO]” menu is displayed.) SET UP Press to select the “C...
Page 34
SET UP for Input Signals Select SIGNAL from the “SET UP” menu during RGB or PC input signal mode. SIGNAL [ RGB ] Press to select each item. SYNC H & V PULL-IN RANGE NARROW CLAMP POSITION Press to ...
Page 35
Troubleshooting Before you call for service, determine the symptoms and make a few simple checks as shown below. Symptoms Checks Picture Sound Electrical Appliances Cars/Motorcycles Fluorescent light ...
Page 38
Specifications TH-42PW4 Power Source 120 V AC, 50/60 Hz Power Consumption Maximum 395W Stand-by condition 1.2 W Power off condition 0.9 W Plasma Display panel Drive method AC type 42-inch, 16:9 aspect...
Page 39
Specifications TH-42PW4 Accessories Supplied Remote Control Transmitter EUR646525 Batteries 2 × AA Size Ferrite core 2 × J0KF00000018 Fixing bands 2 × TMME187 Optional Supplied Speakers TY-SP42PWD3W P...
Page 40
Customer’ Record The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purch...
