Panasonic SHFX70 User's Guide
Summary
This comprehensive operating instructions manual provides essential safety guidelines and usage details for the SH-FX70 Wireless System, designed specifically for Panasonic DVD Home Theater Sound Systems. It ensures owners know how to operate the unit safely while complying with FCC regulations regarding ventilation and interference prevention. The guide features critical setup warnings, electrical cautions, and operational steps, making it an indispensable reference for maximizing product longevity and enjoying optimal audio performance.
Page 1 Text Content

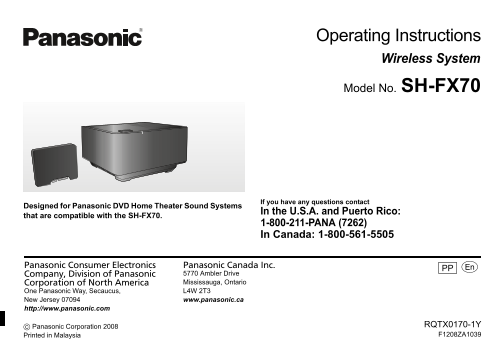

SH-FX70_RQTX0170-Y_En.book Page 1 Wednesday, March 4, 2009 3:15 PM
Operating Instructions Wireless System
Model No. SH-FX70
If you have any questions contact
Designed for Panasonic DVD Home Theater Sound Systems
In the U.S.A. and Puerto Rico:
that are compatible with the SH-FX70.
1-800-211-PANA (7262) In Canada: 1-800-561-5505
Panasonic Consumer Electronics Panasonic Canada Inc. p PP
Company, Division of Panasonic 5770 Ambler Drive Corporation of North America Mississauga, Ontario One Panasonic Way, Secaucus, L4W 2T3 New Jersey 07094 www.panasonic.ca
http://www.panasonic.com
C Panasonic Corporation 2008 RQTX0170-1Y Printed in Malaysia F1208ZA1039
until 2008/12/29
Page Summary Contents For Panasonic SHFX70 User's Guide
Page 1
SH-FX70_RQTX0170-Y_En.book Page 1 Wednesday, March 4, 2009 3:15 PM Operating Instructions Wireless System Model No. SH-FX70 If you have any questions contact Designed for Panasonic DVD Home Theater So...
Page 2
SH-FX70_RQTX0170-Y_En.book Page 2 Wednesday, March 4, 2009 3:15 PM TX THE FOLLOWING APPLIES ONLY IN THE U.S.A. WARNING: FCC Note: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK This equipment has been tes...
Page 3
SH-FX70_RQTX0170-Y_En.book Page 3 Wednesday, March 4, 2009 3:15 PM IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on th...
Page 4
SH-FX70_RQTX0170-Y_En.book Page 4 Wednesday, March 4, 2009 3:15 PM cc es Accessories so ri es Dear customer Please check and identify the supplied Thank you for purchasing this product. For optimum pe...
Page 5
SH-FX70_RQTX0170-Y_En.book Page 5 Wednesday, March 4, 2009 3:15 PM Control reference guide Table of contents Top of the main unit Introduction IMPORTANT SAFETY INSTRUCTIONS...............................
Page 6
SH-FX70_RQTX0170-Y_En.book Page 6 Wednesday, March 4, 2009 3:15 PM Setup Se tu Preparation ≥Turn off all equipment before connection and read the appropriate Wireless setup diagram operating instructi...
Page 7
SH-FX70_RQTX0170-Y_En.book Page 7 Wednesday, March 4, 2009 3:15 PM e.g. 7.1ch (Using two units of the wireless system) Connections Digital transmitter Home theater unit Refer also to the operating ins...
Page 8
SH-FX70_RQTX0170-Y_En.book Page 8 Wednesday, March 4, 2009 3:15 PM Setup TX Se tu Connections Wireless system Preparation If the surround speaker cables (with a blue connector and a grey connector) ha...
Page 9
SH-FX70_RQTX0170-Y_En.book Page 9 Wednesday, March 4, 2009 3:15 PM Making the wireless link ≥Refer also to the operating instructions for your home theater unit. ≥When you enjoy 7.1-channel playback, ...
Page 10
SH-FX70_RQTX0170-Y_En.book Page 10 Wednesday, March 4, 2009 3:15 PM Setup TX Se tu Using the surround back speakers By using 2 sets of SH-FX70, you can enjoy 7.1-channel playback, making Preparation t...
Page 11
SH-FX70_RQTX0170-Y_En.book Page 11 Wednesday, March 4, 2009 3:15 PM Product service Maintenance Damage requiring service—The unit should be serviced by qualified Clean this unit with a soft, dry cloth...
Page 12
SH-FX70_RQTX0170-Y_En.book Page 12 Wednesday, March 4, 2009 3:15 PM Specifications Sp ec ifi ca tio ns AMPLIFIER SECTION GENERAL Output power Power supply AC 120 V, 60 Hz RMS output power Power consum...
Page 13
SH-FX70_RQTX0170-Y_En.book Page 13 Wednesday, March 4, 2009 3:15 PM Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) Panasonic Consumer Electronics Company, Division of Panasonic Corporation of Nort...
Page 14
SH-FX70_RQTX0170-Y_En.book Page 14 Wednesday, March 4, 2009 3:15 PM TX Li ite ar ra nt (O LY .S .A . A ER TO IC Customer Services Directory (United States and Puerto Rico) Obtain Product Information a...
Page 15
SH-FX70_RQTX0170-Y_En.book Page 15 Wednesday, March 4, 2009 3:15 PM Limited Warranty (ONLY FOR CANADA) Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT – LIMITED...
Page 16
SH-FX70_RQTX0170-Y_Cf.book Page 1 Wednesday, March 4, 2009 2:32 PM Manuel d’utilisation Système sans fil Modèle SH-FX70 Conçu pour les chaînes DVD cinéma maison de Panasonic compatibles avec le modèle...
Page 17
SH-FX70_RQTX0170-Y_Cf.book Page 2 Wednesday, March 4, 2009 2:32 PM TX CE QUI SUIT NE S’APPLIQUE QU’AU CANADA. AVERTISSEMENT : Cet appareil est conforme à la RSS-210 du réglement de la IC. POUR RÉDUIRE...
Page 18
SH-FX70_RQTX0170-Y_Cf.book Page 3 Wednesday, March 4, 2009 2:32 PM IMPORTANTES MISES EN GARDE Avant d’utiliser l’appareil, lire attentivement les instructions qui suivent. Se conformer tout particuliè...
Page 19
SH-FX70_RQTX0170-Y_Cf.book Page 4 Wednesday, March 4, 2009 2:32 PM cc es Accessoires so ire Cher client Vérifier les accessoires en les cochant. Lors de la commande de pièces de rechange, utiliser les...
Page 20
SH-FX70_RQTX0170-Y_Cf.book Page 5 Wednesday, March 4, 2009 2:32 PM Guide de référence des commandes Table des matières Dessus de l’appareil principal Introduction IMPORTANTES MISES EN GARDE..............
Page 21
SH-FX70_RQTX0170-Y_Cf.book Page 6 Wednesday, March 4, 2009 2:32 PM Configuration on fig ur at io Préparatifs ≥Mettre tous les appareils hors tension et lire leur manuel d’utilisation. Positionnement s...
Page 22
SH-FX70_RQTX0170-Y_Cf.book Page 7 Wednesday, March 4, 2009 2:32 PM Exemple 7.1canaux (utilisation de deux systèmes sans fil) Connexions Émetteur numérique Appareil cinéma Se reporter également au manu...
Page 23
SH-FX70_RQTX0170-Y_Cf.book Page 8 Wednesday, March 4, 2009 2:32 PM Configuration TX on fig ur at io Connexions Système sans fil Préparatifs Si les câbles de raccordement des enceintes ambiophoniques (...
Page 24
SH-FX70_RQTX0170-Y_Cf.book Page 9 Wednesday, March 4, 2009 2:32 PM Liaison sans fil ≥Se reporter également au manuel d’utilisation de la chaîne cinéma maison. ≥Pour la lecture 7.1 canaux, consulter la...
Page 25
SH-FX70_RQTX0170-Y_Cf.book Page 10 Wednesday, March 4, 2009 2:32 PM Configuration TX on fig ur at io Utilisation d’enceintes ambiophoniques arrière En utilisant deux systèmes sans fil SH-FX70, il est ...
Page 26
SH-FX70_RQTX0170-Y_Cf.book Page 11 Wednesday, March 4, 2009 2:32 PM Service après-vente Entretien En cas de dommage—Confier l’appareil à un technicien qualifié dans Pour nettoyer l’appareil, utiliser ...
Page 27
SH-FX70_RQTX0170-Y_Cf.book Page 12 Wednesday, March 4, 2009 2:32 PM Spécifications Sp éc ifi ca tio ns SECTION AMPLIFICATEUR GÉNÉRALITÉS Puissance de sortie Alimentation V c.a, 60 Hz Puissance de sort...
Page 28
SH-FX70_RQTX0170-Y_Cf.book Page 13 Wednesday, March 4, 2009 2:32 PM Certificat de garantie limitée Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 Certificat de garantie limitée ...
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 28 |
| File Size | 2.51 MB |
| Published | June 18, 2026 |
4 views
Enter the captcha to get the download link:
Frequently Asked Questions
What must I do if I suspect harmful radio interference?
Try reorienting the receiving antenna, increasing separation, or connecting it to a different circuit outlet.
Can this unit be placed inside a bookcase or confined area?
No; ensure the unit is well ventilated and nothing obstructs the ventilation vents.
Are there any parts I can service myself?
No user serviceable parts exist. Refer servicing only to qualified service personnel.
How do I completely disconnect the power supply cord?
Disconnect the power supply cord plug from the AC receptacle.
