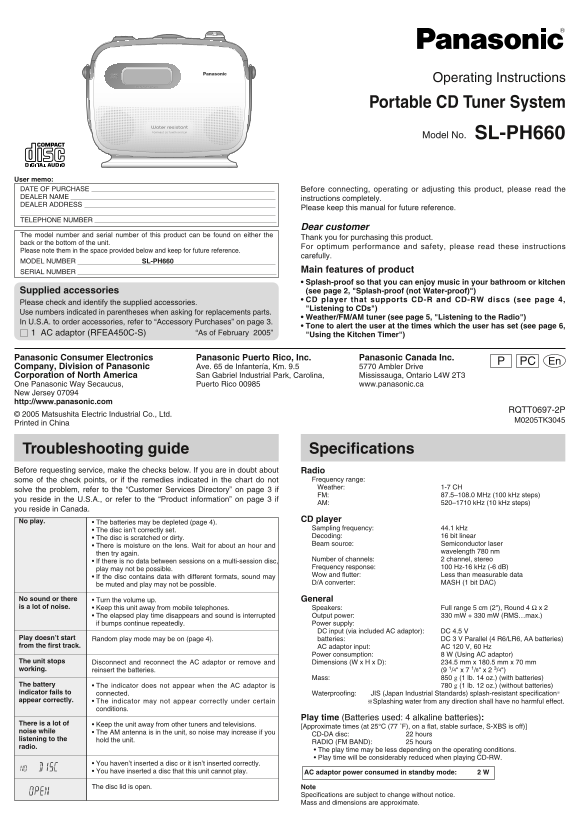

Panasonic SL-PH660 User's Guide

SL-PH660P-0428 05.4.27 8:58 PM ページ 1

Operating Instructions

Portable CD Tuner System Model No. SL-PH660

User memo: DATE OF PURCHASE Before connecting, operating or adjusting this product, please read the DEALER NAME

instructions completely.

DEALER ADDRESS

Please keep this manual for future reference.

TELEPHONE NUMBER

Dear customer

The model number and serial number of this product can be found on either the

Thank you for purchasing this product.

back or the bottom of the unit.

For optimum performance and safety, please read these instructions

Please note them in the space provided below and keep for future reference.

carefully.

MODEL NUMBER SL-PH660

SERIAL NUMBER Main features of product Splash-proof so that you can enjoy music in your bathroom or kitchen

Supplied accessories (see page 2, "Splash-proof (not Water-proof)")

CD player that supports CD-R and CD-RW discs (see page 4,

Please check and identify the supplied accessories.

"Listening to CDs")

Use numbers indicated in parentheses when asking for replacements parts.

Weather/FM/AM tuner (see page 5, "Listening to the Radio")

In U.S.A. to order accessories, refer to “Accessory Purchases” on page 3.

Tone to alert the user at the times which the user has set (see page 6,

1 AC adaptor (RFEA450C-S) “As of February 2005” "Using the Kitchen Timer")

Panasonic Consumer Electronics Panasonic Puerto Rico, Inc. Panasonic Canada Inc.

PC En P

Company, Division of Panasonic Ave. 65 de Infantería, Km. 9.5 5770 Ambler Drive Corporation of North America San Gabriel Industrial Park, Carolina, Mississauga, Ontario L4W 2T3 One Panasonic Way Secaucus, Puerto Rico 00985 www.panasonic.ca New Jersey 07094 http://www.panasonic.com

RQTT0697-2P

2005 Matsushita Electric Industrial Co., Ltd.

M0205TK3045

Printed in China

Troubleshooting guide Specifications Before requesting service, make the checks below. If you are in doubt about Radio

some of the check points, or if the remedies indicated in the chart do not Frequency range: Weather: 1-7 CH

solve the problem, refer to the “Customer Services Directory” on page 3 if

FM: 87.5–108.0 MHz (100 k Hz steps)

you reside in the U.S.A., or refer to the “Product information” on page 3 if

AM: 520–1710 k Hz (10 k Hz steps)

you reside in Canada.

No play. CD player

• The batteries may be depleted (page 4).

Sampling frequency: 44.1 k Hz

• The disc isn’t correctly set.

Decoding: 16 bit linear

• The disc is scratched or dirty.

Beam source: Semiconductor laser

• There is moisture on the lens. Wait for about an hour and

wavelength 780 nm

then try again.

Number of channels: 2 channel, stereo

• If there is no data between sessions on a multi-session disc,

Frequency response: 100 Hz-16 k Hz (-6 d B)

play may not be possible.

Wow and flutter: Less than measurable data

• If the disc contains data with different formats, sound may

D/A converter: MASH (1 bit DAC)

be muted and play may not be possible.

No sound or there • Turn the volume up. General is a lot of noise. • Keep this unit away from mobile telephones. Speakers: Full range 5 cm (2"), Round 4 Ω x 2

• The elapsed play time disappears and sound is interrupted Output power: 330 m W + 330 m W (RMS…max.) if bumps continue repeatedly. Power supply: DC input (via included AC adaptor): DC 4.5 V

Play doesn’t start Random play mode may be on (page 4). batteries: DC 3 V Parallel (4 R6/LR6, AA batteries) from the first track. AC adaptor input: AC 120 V, 60 Hz

Power consumption: 8 W (Using AC adaptor)

The unit stops Disconnect and reconnect the AC adaptor or remove and Dimensions (W x H x D): 234.5 mm x 180.5 mm x 70 mm working. reinsert the batteries. (9 1/4" x 7 1/8" x 2 3/4")

Mass: 850 g (1 lb. 14 oz.) (with batteries)

The battery • The indicator does not appear when the AC adaptor is 780 g (1 lb. 12 oz.) (without batteries) indicator fails to connected. Waterproofing: JIS (Japan Industrial Standards) splash-resistant specification\ appear correctly. • The indicator may not appear correctly under certain \Splashing water from any direction shall have no harmful effect.

conditions.

Play time (Batteries used: 4 alkaline batteries):

There is a lot of • Keep the unit away from other tuners and televisions.

[Approximate times (at 25°C (77 ˚F), on a flat, stable surface, S-XBS is off)]

noise while • The AM antenna is in the unit, so noise may increase if you

CD-DA disc: 22 hours

listening to the hold the unit.

RADIO (FM BAND): 25 hours

radio.

• The play time may be less depending on the operating conditions. • Play time will be considerably reduced when playing CD-RW.

• You haven’t inserted a disc or it isn’t inserted correctly. • You have inserted a disc that this unit cannot play. AC adaptor power consumed in standby mode: 2 W

The disc lid is open. Note

Specifications are subject to change without notice. Mass and dimensions are approximate.
