Page 1

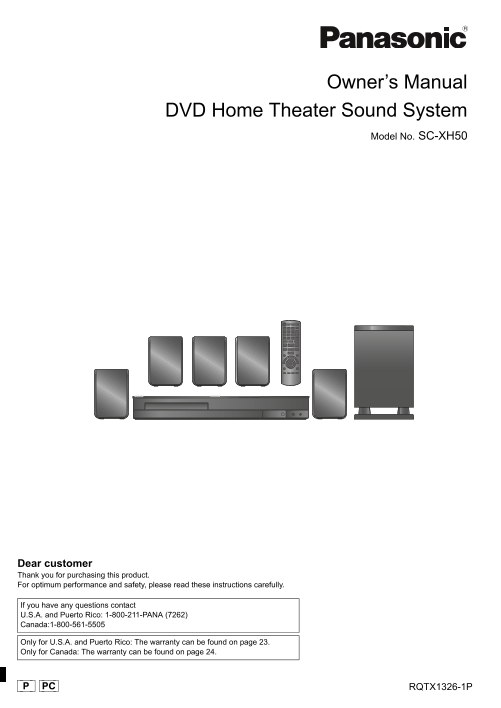

SC-XH50PPC_RQTX1326-P_eng.book Page 1 Wednesday, March 23, 2011 10:33 AM Owner’s Manual DVD Home Theater Sound System Model No. SC-XH50 Dear customer Thank you for purchasing this product. For optimum...
Page 2
SC-XH50PPC_RQTX1326-P_eng.book Page 2 Thursday, February 10, 2011 9:05 AM Before connecting, operating or adjusting this product, System SC-XH50 TX please read the instructions completely. Please keep...
Page 3
SC-XH50PPC_RQTX1326-P_eng.book Page 3 Thursday, February 10, 2011 9:05 AM TV INPUT 10CANCEL MUTE DVD RADIO EXT-IN SEARCH SEARCHPLAY TO P M SKIP SKIPSLOW PAUSE FUNCTIONS EXIT START PLAY MODE RETURN –RE...
Page 4
SC-XH50PPC_RQTX1326-P_eng.book Page 4 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te Control reference guide Avoiding interference with other Panason...
Page 5
SC-XH50PPC_RQTX1326-P_eng.book Page 5 Thursday, February 10, 2011 9:05 AM TABLE OF CONTENTS Getting Started Playing Discs Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 6
SC-XH50PPC_RQTX1326-P_eng.book Page 6 Thursday, February 10, 2011 9:05 AM TX step 1 Positioning step 2 Connections How you set up your speakers can affect the bass and the sound field. Turn off all eq...
Page 7
SC-XH50PPC_RQTX1326-P_eng.book Page 7 Thursday, February 10, 2011 9:05 AM Connection with an ARC compatible TV Radio antenna connections What is ARC? Using an indoor antenna ARC is an abbreviation of ...
Page 8
SC-XH50PPC_RQTX1326-P_eng.book Page 8 Thursday, February 10, 2011 9:05 AM TX step 3 AC power supply cord connection step 5 Easy setup To household AC outlet The Easy setup screen assists you in making...
Page 9
SC-XH50PPC_RQTX1326-P_eng.book Page 9 Thursday, February 10, 2011 9:05 AM Manual tuning Listening to the radio Press [RADIO]4 to select “FM”. Presetting stations automatically Press [SEARCH6, SEARCH5]...
Page 10
SC-XH50PPC_RQTX1326-P_eng.book Page 10 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te TX Using the START menu Listening to the TV or other device’s Y...
Page 11
SC-XH50PPC_RQTX1326-P_eng.book Page 11 Thursday, February 10, 2011 9:05 AM EQ (Equalizer) You can select sound quality settings. Enjoying sound effects from all Each time you press [2, 1]8: speakers F...
Page 12
SC-XH50PPC_RQTX1326-P_eng.book Page 12 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te [DVD-V] Show a disc top menu: [TOP MENU]7 TX Basic play [DVD-V]...
Page 13
SC-XH50PPC_RQTX1326-P_eng.book Page 13 Thursday, February 10, 2011 9:05 AM Repeat play Other modes of play This works only when the elapsed play time can be displayed. It also works with all JPEG cont...
Page 14
SC-XH50PPC_RQTX1326-P_eng.book Page 14 Wednesday, March 23, 2011 10:33 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te TX Play Speed Linked operations with the TV (VIERA Link TM “HDAV...
Page 15
SC-XH50PPC_RQTX1326-P_eng.book Page 15 Thursday, February 10, 2011 9:05 AM One touch play Easy control only with VIERA remote control You can turn the main unit and the TV on, and start playing a disc...
Page 16
SC-XH50PPC_RQTX1326-P_eng.book Page 16 Wednesday, March 23, 2011 10:33 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te TX Time Delay Changing the player settings When connected with a...
Page 17
SC-XH50PPC_RQTX1326-P_eng.book Page 17 Thursday, February 10, 2011 9:05 AM Others menu Speaker Settings Select the delay time of the speakers. Slide Show Time (Effective only when “Surround layout (Re...
Page 18
SC-XH50PPC_RQTX1326-P_eng.book Page 18 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te Region number Discs that can be played [DVD-V] The player plays...
Page 19
SC-XH50PPC_RQTX1326-P_eng.book Page 19 Thursday, February 10, 2011 9:05 AM Speaker installation option Maintenance Attaching to a wall Clean this unit with a soft, dry cloth You can attach all of the ...
Page 20
SC-XH50PPC_RQTX1326-P_eng.book Page 20 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te TX General operation Troubleshooting guide No response when any...
Page 21
SC-XH50PPC_RQTX1326-P_eng.book Page 21 Thursday, February 10, 2011 9:05 AM Disc operation Picture It takes time before play starts. [MP3] The picture on the TV is not displayed correctly or Play may t...
Page 22
SC-XH50PPC_RQTX1326-P_eng.book Page 22 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te SPEAKER SECTION TX Specifications [Front\speakers\SB-HF70] Type...
Page 23
SC-XH50PPC_RQTX1326-P_eng.book Page 23 Thursday, February 10, 2011 9:05 AM Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) Panasonic Consumer Electronics Company, Division of Panasonic Corporation ...
Page 24
SC-XH50PPC_RQTX1326-P_eng.book Page 24 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te TX Limited Warranty (ONLY FOR CANADA) Panasonic Canada Inc. 577...
Page 25
SC-XH50PPC_RQTX1326-P_eng.book Page 25 Thursday, February 10, 2011 9:05 AM ef er en ce th er pe ra tio ns Pl ay in is cs et tin St ar te
Page 26
SC-XH50PPC_RQTX1326-P_eng.book Page 22 Wednesday, March 23, 2011 10:33 AM User memo: THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: DATE OF PURCHASE ___________________________________________ Thi...
